Rhodan Gen5 GPS Trolling Motors — Complete Lineup
The Rhodan Gen5 is a bow-mount GPS trolling motor built for saltwater anglers who demand precise position holding in real conditions — wind, current, chop, and tidal flow. Every Gen5 motor features Rhodan's GPS Anchor dynamic positioning system, a full-screen base display, wireless FOB remote, and native integration with Simrad, Raymarine, and Lowrance chartplotters via the Rhodan MFD Gateway.
Manufactured in Sarasota, Florida with 90% U.S. content. Backed by a 5-year limited warranty with direct access to Rhodan's customer service team in Florida.
Step 1 — Choose Your Voltage
Voltage is determined by your vessel weight. Choose this first — it determines your thrust and which shaft lengths are available.
| Vessel Weight |
Voltage |
Thrust |
Best For |
| Under 6,000 lbs |
24V |
80 lbs |
Flats boats, bay boats, coastal center consoles |
| 6,000–15,000 lbs |
36V |
120 lbs |
Offshore center consoles, large bay boats, charter boats |
If your boat is near the 6,000 lb boundary, choose 36V. More thrust means better GPS Anchor holding in current and chop.
Step 2 — Choose Your Shaft Length
Shaft length is determined by your bow height — measured from the top of the mounting surface to the waterline with a typical fishing load. When in doubt, choose the next longer shaft. A prop that breaks the surface in chop loses all thrust instantly.
| Shaft |
Best Bow Height |
Typical Boat |
Voltage |
| 48" |
Under 30" |
Low-bow flats boats & skiffs |
24V or 36V |
| 60" |
30–36" |
Bay boats (most common) |
24V or 36V |
| 72" |
36–42" |
Larger bay boats, offshore crossover |
24V or 36V |
| 84" |
42–48" |
Dedicated offshore center consoles |
36V |
| 96" |
48–54" |
High-freeboard offshore center consoles |
36V |
| 108" |
54–60" |
Large offshore and tournament boats |
36V |
| 120" |
60"+ |
Extreme freeboard offshore platforms |
36V |
→ Use Rhodan's official size guide to confirm your shaft selection.
The Complete Rhodan Gen5 Lineup
24V Series — 80 lbs thrust (boats under 6,000 lbs)
- 48" — Black | White — Low-bow flats boats and skiffs (bow under 30")
- 60" — Black | White — Bay boats, most common fit (bow 30–36")
- 72" — Black | White — Larger bay boats and offshore crossover (bow 36–42")
36V Series — 120 lbs thrust (boats 6,000–15,000 lbs)
- 48" — Black | White — Maximum thrust for lower-bow offshore boats (bow under 30")
- 60" — Black | White — Offshore bay boats and mid-size center consoles (bow 30–36")
- 72" — Black | White — Offshore crossover, higher bows and rougher conditions (bow 36–42")
- 84" — Black | White — Entry point into dedicated offshore (bow 42–48")
- 96" — Black | White — High-freeboard offshore center consoles (bow 48–54")
- 108" — Black | White — Large offshore and tournament platforms (bow 54–60")
- 120" — Black | White — Maximum reach for extreme offshore applications (bow 60"+)
Quick Model Selector
| If You Have... |
Recommended Model |
Bow Height |
| Flats boat or low-bow skiff |
24V 48" |
Under 30" |
| Bay boat (under 6,000 lbs) |
24V 60" |
30–36" |
| Larger bay boat (under 6,000 lbs) |
24V 72" |
36–42" |
| Offshore center console (over 6,000 lbs) |
36V 84" |
42–48" |
| High-freeboard offshore center console |
36V 96" |
48–54" |
| Large offshore / tournament boat |
36V 108" |
54–60" |
| Extreme freeboard offshore platform |
36V 120" |
60"+ |
Not sure? Contact TrollingMotors.shop — we'll confirm the right shaft, voltage, and battery for your boat.
GPS Anchor — Rhodan's Dynamic Positioning System
GPS Anchor is not a simple spot-lock. It's a dynamic positioning system that continuously calculates and applies thrust corrections to hold your exact GPS coordinates — compensating for wind, current, and wave action in real time.

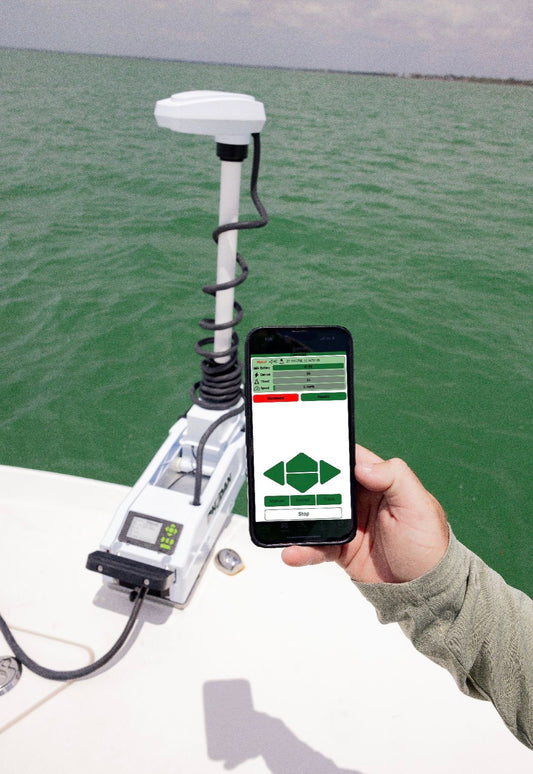

Activate from the wireless FOB remote, the Rhodan app, or the base display. Your position is locked until you release it — no drift, no repositioning, no dropped anchors.
Simrad, Raymarine & Lowrance Integration
The Gen5 integrates natively with compatible Simrad, Raymarine, and Lowrance displays via Rhodan's MFD Gateway and a properly configured NMEA 2000 network. Integration enables chartplotter control of motor heading, speed, and GPS Anchor directly from your MFD.
Important: Integration requires the Rhodan MFD Gateway, a compatible NMEA 2000 backbone, T-connector, and compatible display firmware. Confirm compatibility with Rhodan or TrollingMotors.shop before purchase.
If you run Garmin electronics, the Garmin Force Kraken is the correct motor for native Garmin integration.
Rhodan Gen5 vs. Garmin Force Kraken
| Feature |
Rhodan Gen5 |
Garmin Force Kraken |
| GPS positioning |
GPS Anchor (dynamic) |
Kraken Lock (dynamic) |
| Chartplotter integration |
Simrad, Raymarine, Lowrance |
Garmin native |
| Motor type |
Brushed |
Brushless |
| Origin |
Made in USA (Sarasota, FL) |
Assembled overseas |
| Warranty |
5-year limited |
2-year limited |
| Best for |
Simrad/Raymarine/Lowrance users |
Garmin chartplotter users |
→ Full comparison: Garmin Force Kraken vs. Rhodan Gen5
Key Specifications — All Gen5 Models
-
GPS system: GPS Anchor (dynamic positioning)
-
24V thrust: 80 lbs | 36V thrust: 120 lbs
-
Shaft lengths: 48", 60", 72", 84", 96", 108", 120"
-
Finishes: Black, White
-
MFD integration: Simrad, Raymarine, Lowrance (via MFD Gateway + NMEA 2000)
-
Base display: Full-screen with button controls
-
Sliding base: 10" front-to-back adjustment
-
Includes: Wireless FOB remote, Quick Release Bracket, RAM Mount Stabilizer
-
Warranty: 5-year limited
-
Origin: Made in Sarasota, Florida (90% U.S. content)
Before You Order — What to Confirm
- ☐ Measure your bow height (mounting surface to waterline with fishing load)
- ☐ Confirm your vessel weight (under or over 6,000 lbs determines voltage)
- ☐ Verify your battery system voltage (24V or 36V)
- ☐ If using MFD integration: confirm NMEA 2000 backbone availability and display compatibility
- ☐ Confirm the correct Gen5 circuit breaker SKU — do not use SKU A00155 (Legacy, not Gen5 compatible)
Frequently Asked Questions
What's the difference between 24V and 36V?
Voltage determines thrust output and the vessel weight the motor can effectively hold. 24V produces 80 lbs of thrust and is correct for boats under 6,000 lbs. 36V produces 120 lbs of thrust and is correct for boats between 6,000 and 15,000 lbs. If your boat is near the boundary, choose 36V.
How do I choose the right shaft length?
Measure your bow height from the top of the mounting surface to the waterline with a typical fishing load. Match that measurement to the shaft length table above. When in doubt, choose the next longer shaft — a prop that breaks the surface loses all thrust instantly.
Does the Gen5 work with Garmin chartplotters?
No. The Gen5 integrates natively with Simrad, Raymarine, and Lowrance via the Rhodan MFD Gateway. For Garmin integration, the Garmin Force Kraken is the correct motor.
Is a circuit breaker required?
Yes. Confirm the correct Gen5 breaker SKU with Rhodan or TrollingMotors.shop before installation. Do not use SKU A00155, which Rhodan identifies as a Legacy breaker not compatible with the Gen5.
Where is the Rhodan Gen5 made?
Sarasota, Florida, using U.S. and globally sourced parts (90% U.S. content). Rhodan's customer service team is also based in Florida.
What warranty does the Gen5 include?
A 5-year limited warranty with direct access to Rhodan's customer service department.
What's included with the Gen5?
Every Gen5 includes a wireless FOB remote, Quick Release Bracket, RAM Mount Stabilizer, owner's manual, and warranty documentation.
