Rhodan Gen5 GPS Trolling Motor — 36V | 96” Shaft | White
Rhodan Gen5 GPS Trolling Motor — 36V | 96” Shaft | White
Rhodan Gen5 GPS Trolling Motor — 36V | 96" Shaft | White
The Rhodan Gen5 96" White (36V) is the high-freeboard offshore center console fit — built for large, purpose-built offshore platforms with a bow height between 48" and 54". It delivers 120 lbs of thrust to hold position in demanding open ocean conditions: offshore reefs, wrecks, ledges, and structure in wind and tidal current. It carries the same GPS Anchor dynamic positioning system, full-screen base display, and native Simrad, Raymarine, and Lowrance integration as every Gen5 motor.
The white finish blends cleanly with modern offshore boat styling and is particularly popular on dedicated offshore center consoles with white gelcoat.
Available Finishes: ⚫ Black | ⚪ White (Current Model)
Manufactured in Sarasota, Florida with 90% U.S. content. Backed by a 5-year limited warranty with direct access to Rhodan's customer service team.
Is This the Right Model for Your Boat?
| Choose this model if... | Consider another model if... |
|---|---|
| Your bow height is between 48" and 54" | Your bow height is under 48" (use 84" shaft or shorter) |
| Your vessel weighs 6,000–15,000 lbs | Your bow height is over 54" (use 108" shaft) |
| You fish a large, high-freeboard offshore center console | Your vessel weighs under 6,000 lbs (use 24V) |
| You run Simrad, Raymarine, or Lowrance electronics | You run Garmin electronics and want native helm integration |
Why the 96" Shaft? The High-Freeboard Offshore Fit
The 96" is where the Gen5 lineup serves large, high-freeboard offshore platforms — boats with elevated bows that require additional shaft length to keep the prop in the water through ocean swells. Each shaft length in the 36V lineup has a distinct role:
- 60" — The versatile sweet spot for offshore bay boats and mid-size center consoles (bow 30–36")
- 72" — The offshore crossover — higher bows and rougher conditions (bow 36–42")
- 84" — Entry point into dedicated offshore — purpose-built offshore center consoles (bow 42–48")
- 96" ← This motor — High-freeboard offshore center consoles (bow 48–54")
- 108" — Large offshore and tournament boats (bow 54–60")
- 120" — Maximum reach for extreme offshore applications (bow 60"+)
If your bow height is under 48", the 84" shaft is the correct fit. If your bow height is over 54", step up to the 108" shaft. When in doubt, choose the next longer shaft — offshore conditions are less forgiving than inshore.
Who Should Choose the Rhodan Gen5 36V 96" Shaft?
This motor is ideal for:
- Large, high-freeboard offshore center consoles between 6,000 and 15,000 lbs with a bow height of 48–54"
- Anglers fishing offshore reefs, wrecks, ledges, and live bottom in open ocean conditions
- Boats that need sustained GPS Anchor hold in open ocean wind, current, and swell
- Tournament anglers requiring all-day offshore runtime on large platforms
- Anglers running Simrad, Raymarine, or Lowrance electronics
Excellent for these species and scenarios:
- Snapper · Grouper · Amberjack · Cobia · King Mackerel · Mahi · Tuna · Wahoo
- Live-bait fishing over offshore wrecks and reef structure
- Deep-water snapper and grouper on bottom structure
- Offshore ledge and drop-off fishing
- Maintaining position in ocean swell over live bottom
- Tournament offshore fishing on large center consoles
Who Should NOT Buy This Motor
Don't buy this model if:
- Your bow height is under 48" — the 36V 84" shaft or shorter is the correct fit
- Your bow height is over 54" — step up to the 36V 108" shaft
- Your vessel weighs under 6,000 lbs — a 24V motor is the correct and more cost-effective choice
- You run Garmin electronics and want native helm integration — the Garmin Force Kraken is the correct motor
We'd rather help you find the right motor than sell you the wrong one. Contact TrollingMotors.shop if you're unsure.
Typical Boats for the 36V 96" Shaft
The following boat types commonly pair with a 36V 96" shaft. This is not a compatibility guarantee — always confirm your specific bow height and vessel weight before ordering.
- 28–34 ft high-freeboard offshore center consoles with bow heights of 48–54"
- Large offshore platforms with elevated bow sections
- Deep-V offshore hulls with high freeboard designed for open ocean conditions
- Tournament-rigged center consoles with very high bows
Representative examples:
- Contender 35 Side Console (standard configurations)
- Yellowfin 36 (standard configurations)
- Grady-White Canyon 336 (standard configurations)
- Mako 414 CC (standard configurations)
- Boston Whaler 350 Outrage (standard configurations)
Confirm your bow height measurement before ordering. When in doubt, choose the next longer shaft.
Real-World Performance — Where This Motor Works
The 36V Gen5 96" is built for large offshore platforms where bow height demands additional shaft reach and where GPS Anchor hold must be maintained through ocean swell, tidal current, and open ocean wind. The 96" shaft keeps the prop in the water on high-freeboard boats where shorter shafts would break the surface in swell and lose all thrust.
Offshore reefs and live bottom: Hold position precisely over structure in tidal flow and open ocean wind on a large offshore platform. The 36V system maintains GPS Anchor hold when conditions build — keeping you on target over the exact piece of structure you're fishing.
Live-bait fishing over offshore wrecks: Stay positioned over structure while working live bait in current and swell. GPS Anchor holds through tidal changes, keeping your bait in the strike zone without constant repositioning.
Deep-water snapper and grouper: Lock onto reef edges, rock piles, and bottom transitions in open water. The 96" shaft stays in the water through ocean swell where shorter shafts on high-bow boats would break the surface and lose hold.
Offshore ledges and bottom transitions: Maintain position over ledges and drop-offs in open water. The 36V system has the thrust reserve to hold through current changes and wind shifts that push lighter motors off target.
Tournament offshore fishing: All-day runtime under demanding open ocean conditions on a large platform. The 36V system operates with more thrust reserve, drawing less proportional current at typical fishing speeds.
Shaft Selection at a Glance — 36V Series
| Shaft | Best Bow Height | Typical Boat | Best For |
|---|---|---|---|
| 60" | 30–36" | Offshore bay boats, mid-size center consoles | Versatile sweet spot — most common 36V fit |
| 72" | 36–42" | Large bay boats, higher-bow center consoles | Offshore crossover — higher bows and rougher conditions |
| 84" | 42–48" | Dedicated offshore center consoles | Entry point into dedicated offshore |
| 96" ← This motor | 48–54" | High-freeboard offshore center consoles | High-freeboard offshore fit |
| 108" | 54–60" | Large offshore / tournament boats | Large offshore and tournament platforms |
| 120" | 60"+ | Extreme offshore / maximum freeboard | Maximum reach for extreme offshore applications |
When in doubt, choose the next longer shaft. Offshore conditions are less forgiving than inshore — a prop that breaks the surface in swell loses all thrust instantly. → Use Rhodan's official size guide to confirm your selection.
GPS Anchor — Rhodan's Precision Dynamic Positioning System
Rhodan's GPS Anchor uses a dynamic positioning system that continuously calculates and applies thrust corrections to hold your exact GPS position — compensating for wind, current, and wave action in real time. On a 36V system with a 96" shaft, GPS Anchor has both the reach to stay in the water through ocean swells on a high-freeboard boat and the thrust reserve to hold position when conditions deteriorate offshore.
Activate GPS Anchor from the wireless FOB remote, the Rhodan app, or directly from the base display. Your position is locked until you release it.
Simrad, Raymarine & Lowrance Integration
The Gen5 supports native integration with compatible Simrad, Raymarine, and Lowrance multifunction displays through Rhodan's supported NMEA 2000 networking and gateway hardware — the Rhodan MFD Gateway and a properly configured NMEA 2000 network.
Important: Integration requires the Rhodan MFD Gateway, a compatible NMEA 2000 backbone, T-connector, and compatible display firmware. Confirm display compatibility and required networking hardware with Rhodan or TrollingMotors.shop before purchase.
If you run Garmin, the Garmin Force Kraken is the correct motor for native Garmin integration.

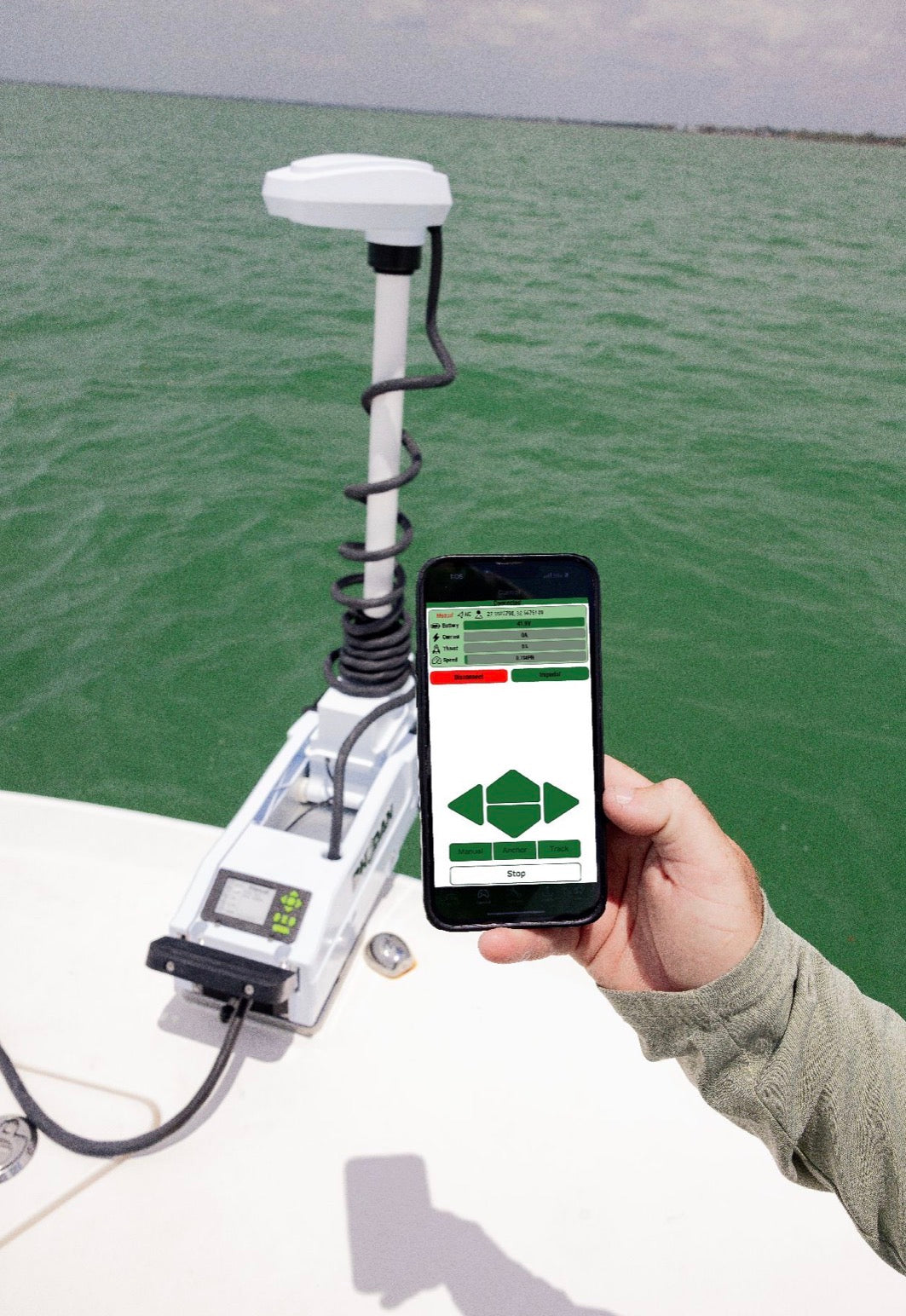

Rhodan App — Full Motor Control from Your Phone
The Rhodan app (iOS and Android, free) provides full motor control from your smartphone — speed, heading, GPS Anchor, and motor status.
Key Specifications
- Model: G5336096
- Shaft length: 96"
- Finish: White
- Voltage: 36V
- Thrust: 120 lbs
- Recommended vessel weight: 6,000–15,000 lbs
- Recommended bow height: 48–54"
- GPS system: GPS Anchor (dynamic positioning)
- MFD integration: Simrad, Raymarine, Lowrance (via MFD Gateway + NMEA 2000)
- Base display: Full-screen with button controls
- Sliding base: 10" front-to-back adjustment
- Warranty: 5-year limited
- Origin: Made in Sarasota, Florida (90% U.S. content)
- Includes: Wireless FOB remote, Quick Release Bracket, RAM Mount Stabilizer
- Required: Properly rated marine circuit breaker — do not use SKU A00155
Before You Order — Checklist
- ☐ Bow height 48–54" (mounting surface to waterline with fishing load)
- ☐ Vessel weight 6,000–15,000 lbs
- ☐ 36V battery system available or planned
- ☐ Adequate bow clearance for 96" shaft at full deployment
- ☐ If using MFD integration: NMEA 2000 backbone and display compatibility confirmed
Not sure? Contact TrollingMotors.shop before ordering.
Before You Install — What You'll Need
Required:
- 36V battery system (three 12V batteries wired in series, or a dedicated 36V lithium battery)
- Properly rated marine circuit breaker — confirm correct Gen5 SKU with Rhodan or TrollingMotors.shop. Do not use SKU A00155.
- Marine-grade wiring in the correct gauge for your run length
- 36V battery charger
Wire size: under 15 ft — 6 AWG minimum. 15–25 ft — 4 AWG minimum. Over 25 ft — 2 AWG minimum.
Explore the Full Rhodan Gen5 36V Lineup
36V (120 lbs thrust — boats 6,000–15,000 lbs):
- 48" | Black | 48" | White — Maximum thrust for lower-bow offshore boats
- 60" | Black | 60" | White — Versatile sweet spot for offshore bay boats and mid-size center consoles
- 72" | Black | 72" | White — Offshore crossover — higher bows and rougher conditions
- 84" | Black | 84" | White — Entry point into dedicated offshore
- 96" | Black | 96" | White (this product) — High-freeboard offshore center consoles
- 108" | Black | 108" | White — Large offshore and tournament platforms
- 120" | Black | 120" | White — Maximum reach for extreme offshore applications
Why Buy From TrollingMotors.shop?
- ✓ Authorized Rhodan Marine Systems Dealer
- ✓ Free Nationwide Shipping
- ✓ Expert Technical Support — before and after your purchase
- ✓ Battery & Circuit Breaker Guidance
- ✓ MFD Integration Support
- ✓ Genuine OEM Product — factory warranty intact
Made & Supported in the USA
Every Rhodan Gen5 is manufactured in Sarasota, Florida using U.S. and globally sourced parts (90% U.S. content). When you call Rhodan Marine Systems, you reach their customer service team in Florida — not an overseas call center.
Rhodan Gen5 vs. Garmin Force Kraken
- Rhodan Gen5 — native Simrad, Raymarine, and Lowrance integration via MFD Gateway. Proven GPS Anchor heritage. Made in the USA.
- Garmin Force Kraken — native Garmin chartplotter integration. Brushless motor. The correct choice for anglers running Garmin electronics.
→ Full comparison: Garmin Force Kraken vs. Rhodan Gen5
Frequently Asked Questions
Why do I need the 96" instead of the 84"?
If your bow height is between 48" and 54", the 96" is the correct fit. The 84" is designed for bow heights of 42–48". On a larger, high-freeboard offshore center console, an 84" shaft may not reach the water properly — especially in ocean swell. When in doubt, choose the next longer shaft.
How do I measure my bow height?
Measure from the mounting surface (where the motor base will sit) to the waterline with a typical fishing load. That measurement determines the correct shaft length. Confirm with Rhodan's official size guide or contact TrollingMotors.shop before ordering.
Why do I need 36V instead of 24V?
If your vessel weighs over 6,000 lbs and you fish dedicated offshore conditions, 24V (80 lbs thrust) may not provide sufficient holding power. The 36V system produces 120 lbs of thrust — 50% more — with greater steering authority in open ocean wind and longer runtime for all-day offshore trips.
Does the Gen5 work with Garmin chartplotters?
No — the Gen5 integrates natively with Simrad, Raymarine, and Lowrance via Rhodan's MFD Gateway and NMEA 2000. For Garmin integration, the Garmin Force Kraken is the correct motor.
Is a circuit breaker required?
Yes. Confirm the correct breaker SKU with Rhodan or TrollingMotors.shop before purchasing — do not use SKU A00155, which Rhodan identifies as a Legacy breaker not compatible with the Gen5.
What battery system does the 36V Gen5 require?
Three 12V marine batteries wired in series, or a dedicated 36V lithium battery. Confirm battery capacity with TrollingMotors.shop for your runtime requirements.
Where is the Rhodan Gen5 made?
Sarasota, Florida, using U.S. and globally sourced parts (90% U.S. content).
What warranty does the Gen5 include?
A 5-year limited warranty with direct access to Rhodan's customer service department.
Does the remote come included?
Yes. The Gen5 includes a wireless FOB remote, a Quick Release Bracket, and a RAM Mount Stabilizer.
