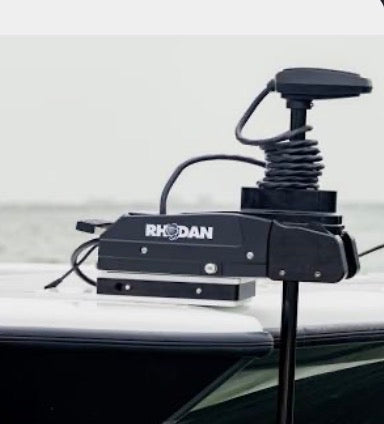

Rhodan Gen5 GPS Trolling Motor — 24V | 48" Shaft | Black | Simrad, Raymarine & Lowrance Integration

Rhodan Gen5 GPS Trolling Motor — 24V | 48" Shaft | Black

The Rhodan Gen5 48" Black (24V) is the entry point into the Gen5 platform — built for offshore and coastal anglers running boats under 6,000 lbs with a bow height under 30". It delivers the same proven GPS Anchor technology, full-screen base display, and native Simrad, Raymarine, and Lowrance integration as every Gen5 motor, in the shortest shaft in the lineup.

Manufactured in Sarasota, Florida with 90% U.S. content. Backed by a 5-year limited warranty with direct access to Rhodan's customer service team.

---

Who Should Choose the Rhodan Gen5 24V 48" Shaft?

This motor is ideal for:

• Bay boats (17–22 ft)
• Flats boats (17–22 ft)
• Center consoles up to approximately 5,500 lbs
• Inshore and nearshore saltwater anglers
• Anglers running Simrad, Raymarine, or Lowrance electronics

Best for these species:
Redfish · Snook · Speckled Trout · Flounder · Tarpon · Striped Bass · Walleye · Coastal trolling

Not recommended for:

• Boats over 6,000 lbs (step up to 36V)
• Bow height over 30" (step up to 60" shaft)
• Offshore boats over 24 ft
• Heavy inlet current or Great Lakes conditions
• Garmin chartplotter users (see Garmin Force Kraken)

---

Is This Motor the Right Fit for Your Boat?

Fit Factor	Recommendation
Boat length	Usually 17–22 ft
Vessel weight	Under 6,000 lbs
Bow height	Under 30"
Typical use	Inshore and protected nearshore
Step up when	Near 6,000 lbs, heavy current, or bow near 30"

---

Compare Rhodan Gen5 Models at a Glance

Model	Best For	Vessel Weight	Conditions
24V 48" (this motor)	Flats & bay boats	Under 6,000 lbs	Moderate wind & current
36V 48"	Larger bay boats	6,000–15,000 lbs	Stronger current & chop
36V 84"+	Offshore center consoles	Up to 15,000 lbs	Heavy offshore use

---

Is the 48" the Right Shaft for Your Boat?

The correct shaft length is determined by your bow height — the distance from the top of the mounting surface to the waterline with a typical fishing load — and your vessel weight.

Shaft	Bow Height	Voltage	Vessel Weight
48"	Under 30"	24V or 36V	24V: under 6,000 lbs | 36V: under 15,000 lbs
60"	30–36"	24V or 36V	24V: under 6,000 lbs | 36V: under 15,000 lbs
72"	36–42"	24V or 36V	24V: under 6,000 lbs | 36V: under 15,000 lbs
84"	42–48"	36V	Under 15,000 lbs
96"	48–54"	36V	Under 15,000 lbs
108"	54–60"	36V	Under 15,000 lbs
120"	60"+	36V	Under 15,000 lbs

When in doubt, choose the next longer shaft. A prop that breaks the surface in offshore chop loses all thrust instantly. → Use Rhodan's official size guide to confirm your selection.

---

24V or 36V for the 48" Shaft?

The 48" shaft is available in both 24V and 36V. The correct voltage depends on your vessel weight:

• 24V (this motor) — 80 lbs thrust — correct for boats under 6,000 lbs
• 36V — 120 lbs thrust — correct for boats between 6,000 and 15,000 lbs → Rhodan Gen5 48" Black | 36V

If your boat is near the 6,000 lb boundary, choose 36V. More thrust means better GPS Anchor holding in current and chop, and longer runtime on the water.

---

GPS Anchor — Rhodan's Precision Dynamic Positioning System

Rhodan's GPS Anchor uses a dynamic positioning system that continuously calculates and applies thrust corrections to hold your exact GPS position — compensating for wind, current, and wave action in real time. Rhodan describes the Gen5 as the market's most accurate GPS trolling motor and publishes submeter GPS accuracy specifications.

Activate GPS Anchor from the wireless FOB remote, the Rhodan app, or directly from the base display. Your position is locked until you release it — no drift, no repositioning, no dropped anchors.

Common uses include:

• Holding over oyster bars and shell bars
• Fishing docks, bridge pilings, and mangrove shorelines
• Anchoring on artificial reefs and wrecks
• Waiting for tide changes on flats
• Holding position in tidal current without re-anchoring

---

How Does It Perform in Wind and Current?

The 24V Rhodan Gen5 provides excellent GPS position holding in moderate wind and tidal current on correctly sized vessels. Actual holding performance varies with vessel weight, windage, current, sea state, battery capacity, and shaft immersion.

If you regularly fish:

• Offshore reefs or wrecks in heavy current
• Strong Gulf or Atlantic inlet current
• Exposed coastal waters in consistently demanding conditions

…consider the 36V model for additional thrust and longer runtime under load.

---

Full-Screen Base Display

The Gen5 base display gives you real-time motor data directly from the mounting point — no need to look at your chartplotter or phone to know what the motor is doing.

• Battery voltage
• Amp draw
• Motor speed
• GPS Anchor location
• Heading
• Button controls for full motor operation from the base

This is a meaningful operational advantage on larger boats where the bow is far from the helm — you can monitor and control the motor without walking back to the console.

---

Integrated Sliding Base — 10" of Front-to-Back Adjustment

The Gen5 sliding base provides 10 inches of front-to-back adjustment with locking points at each end. Slide the motor forward for deployment, retract it for docking and storage.

---

Simrad, Raymarine & Lowrance Integration

The Gen5 supports native integration with compatible Simrad, Raymarine, and Lowrance displays through Rhodan's MFD Gateway and a properly configured NMEA 2000 network. Control speed, heading, GPS Anchor activation, and waypoint navigation directly from your helm MFD.

Important: Integration requires Rhodan's MFD Gateway, a compatible NMEA 2000 backbone, T-connector, and compatible display firmware. Confirm display compatibility and required networking hardware with Rhodan or TrollingMotors.shop before purchase. Check whether the Gateway is included with your specific motor package.

If you run Garmin, the Garmin Force Kraken is the correct motor for native Garmin integration.

---

Rhodan App — Full Motor Control from Your Phone

The Rhodan app (iOS and Android, free) provides full motor control from your smartphone — speed, heading, GPS Anchor, and motor status. Use it as a backup to the wireless FOB, as a second control point for a crew member, or as your primary interface when your chartplotter is occupied.

---

Key Specifications

• Model: G5B24048
• Shaft length: 48"
• Finish: Black
• Voltage: 24V
• Thrust: 80 lbs
• Recommended vessel weight: Under 6,000 lbs
• Recommended bow height: Under 30"
• GPS system: GPS Anchor (dynamic positioning)
• MFD integration: Simrad, Raymarine, Lowrance (via MFD Gateway + NMEA 2000)
• Base display: Full-screen with button controls
• Sliding base: 10" front-to-back adjustment
• Warranty: 5-year limited
• Origin: Made in Sarasota, Florida (90% U.S. content)
• Required: Properly rated marine circuit breaker per current Rhodan Gen5 owner's manual — confirm correct SKU with Rhodan or TrollingMotors.shop before installation
• Includes: Wireless FOB remote, Quick Release Bracket, RAM Mount Stabilizer

---

What's Included

• Wireless FOB remote
• Quick Release Bracket
• RAM Mount Stabilizer
• Owner's manual
• Warranty documentation

Required — not included: A properly rated marine circuit breaker installed according to the current Rhodan Gen5 owner's manual. Confirm the correct current Gen5 breaker or protection device with Rhodan or TrollingMotors.shop before installation. Do not install the Gen5 without the correct breaker.

---

What You'll Need for Installation

Required:

• 24V battery system (two 12V batteries wired in series, or a dedicated 24V lithium battery)
• Properly rated marine circuit breaker — confirm correct Gen5 SKU with Rhodan or TrollingMotors.shop
• Appropriate marine-grade wiring (see wire gauge guide below)
• 24V battery charger

Required for MFD integration (if applicable):

• Rhodan MFD Gateway
• NMEA 2000 backbone with available T-connector drop port
• Compatible Simrad, Raymarine, or Lowrance display with current firmware

Recommended accessories:

• ABYSS 24V 100Ah lithium battery — maximum runtime, lighter weight, consistent voltage
• Battery monitor — track state of charge in real time
• Quick-disconnect connectors — simplify seasonal removal

Contact TrollingMotors.shop before ordering if you need help confirming the correct breaker SKU, battery configuration, or Gateway compatibility for your electronics setup.

---

Installation Overview

Most professional marine installations of the Rhodan Gen5 require approximately 3–5 hours depending on the existing wiring configuration, bow deck layout, and whether MFD integration is included. Installations that include NMEA 2000 network setup or new battery wiring runs may take longer. Rhodan recommends professional installation and a compass calibration after mounting for accurate GPS Anchor performance. Refer to the current Gen5 owner's manual for complete installation instructions.

---

What to Expect After Ordering

TrollingMotors.shop is an authorized Rhodan Marine Systems dealer. When you order from us, you get more than a motor:

• Expert pre-sale support — we'll confirm the right shaft, voltage, and battery for your boat before you buy
• Battery matching assistance — we'll recommend the correct 24V battery for your runtime needs
• Circuit breaker guidance — we'll confirm the correct Gen5 breaker SKU so your installation is done right
• MFD integration support — we'll help you confirm Gateway compatibility with your Simrad, Raymarine, or Lowrance display
• Fast order processing — in-stock orders ship promptly with free nationwide shipping
• Factory warranty intact — full 5-year Rhodan limited warranty, backed by direct manufacturer support
• Post-purchase support — we're here after delivery for installation questions and setup assistance

Questions before you order? Contact us at TrollingMotors.shop — we're here to help you get the right motor for your boat.

---

Why Buy From TrollingMotors.shop?

• ✓ Authorized Rhodan Marine Systems Dealer
• ✓ Free Nationwide Shipping
• ✓ Expert Technical Support — before and after your purchase
• ✓ Battery Matching Assistance
• ✓ Installation Advice
• ✓ Fast Order Processing
• ✓ Genuine OEM Product — factory warranty intact

---

Made & Supported in the USA

Every Rhodan Gen5 is manufactured in Sarasota, Florida using U.S. and globally sourced parts (90% U.S. content). When you call Rhodan Marine Systems, you reach their customer service team in Florida — not an overseas call center. The 5-year limited warranty is backed by direct manufacturer support.

---

Rhodan Gen5 vs. Garmin Force Kraken

The two most capable GPS trolling motors for offshore anglers are the Rhodan Gen5 and the Garmin Force Kraken. The right choice depends primarily on your electronics platform.

• Rhodan Gen5 — native Simrad, Raymarine, and Lowrance integration via MFD Gateway. Proven GPS Anchor heritage. Made in the USA.
• Garmin Force Kraken — native Garmin chartplotter integration. Brushless motor. The correct choice for anglers running Garmin electronics.

→ Full comparison: Garmin Force Kraken vs. Rhodan Gen5

---

Shop the Full Rhodan Gen5 Lineup

24V (80 lbs thrust — boats under 6,000 lbs):

• 48" | Black (this product) | 48" | White
• 60" | Black | 60" | White
• 72" | Black | 72" | White

36V (120 lbs thrust — boats under 15,000 lbs):

• 48" | Black | 48" | White
• 84" | Black | 84" | White
• 108" | Black | 108" | White
• 120" | Black | 120" | White

---

Pair With the Right Battery

The Gen5 48" 24V runs on a 24V system. For maximum runtime and performance, pair with an ABYSS 24V lithium battery:

• ABYSS 24V 60Ah Lithium Battery — recommended for most inshore applications
• ABYSS 24V 100Ah Lithium Battery — maximum runtime for full-day fishing

Planning Estimates — Not Guaranteed Runtime

The following are planning estimates based on a healthy 24V 100Ah LiFePO4 battery. Actual runtime varies substantially by operating load, vessel weight, wind, current, sea state, and throttle usage:

• 6–10 hours of typical inshore fishing
• 12+ hours with intermittent GPS Anchor use
• 3–5 hours in heavy current or wind at higher throttle

Pairing with a higher Ah battery (100Ah vs. 60Ah) is the single biggest factor in extending your day on the water.

Wire size: under 15 ft from batteries — 6 AWG minimum. 15–25 ft — 4 AWG minimum. Over 25 ft — 2 AWG minimum.

---

Frequently Asked Questions

What bow height is the 48" shaft designed for?

The 48" shaft is designed for boats with a bow height under 30". Measure from the top of the mounting surface to the waterline with a typical fishing load. If your bow height is at or near 30", step up to the 60" shaft. When in doubt, choose the next longer shaft.

What is the maximum vessel weight for the 24V model?

The 24V Gen5 is rated for vessels under 6,000 lbs. For boats between 6,000 and 15,000 lbs, the 36V model (120 lbs thrust) is the correct choice.

Does the Gen5 work with Garmin chartplotters?

No — the Gen5 integrates natively with Simrad, Raymarine, and Lowrance via Rhodan's MFD Gateway. For Garmin integration, the Garmin Force Kraken is the correct motor.

Is a circuit breaker required?

Yes. A properly rated marine circuit breaker is required for installation per the current Rhodan Gen5 owner's manual. Confirm the correct breaker SKU with Rhodan or TrollingMotors.shop before purchasing — do not use SKU A00155, which Rhodan identifies as a Legacy breaker not compatible with the Gen5.

Where is the Rhodan Gen5 made?

Sarasota, Florida, using U.S. and globally sourced parts (90% U.S. content). Customer service is handled directly by Rhodan's team in Florida.

What warranty does the Gen5 include?

A 5-year limited warranty with direct access to Rhodan's customer service department.

Can I use lithium batteries with the Rhodan Gen5?

Yes. The Gen5 is fully compatible with lithium (LiFePO4) batteries. Lithium is the recommended chemistry for maximum runtime, lighter weight, and consistent voltage output throughout the discharge cycle. The ABYSS 24V 60Ah and ABYSS 24V 100Ah are purpose-built for this motor.

Does the remote come included?

Yes. The Gen5 includes a wireless FOB remote, a Quick Release Bracket, and a RAM Mount Stabilizer.

Does the Gen5 support NMEA 2000?

Yes. The Gen5 connects via NMEA 2000 using Rhodan's MFD Gateway, enabling native integration with compatible Simrad, Raymarine, and Lowrance displays. A properly configured NMEA 2000 backbone is required. Confirm hardware requirements before purchase.

Does it work with Simrad chartplotters?

Yes — native integration via Rhodan's MFD Gateway and NMEA 2000. Confirm display compatibility and required networking hardware with Rhodan or TrollingMotors.shop before purchase.

Does it work with Raymarine chartplotters?

Yes — native integration via Rhodan's MFD Gateway and NMEA 2000. Confirm display compatibility and required networking hardware before purchase.

Does it work with Lowrance chartplotters?

Yes — native integration via Rhodan's MFD Gateway and NMEA 2000. Confirm display compatibility and required networking hardware before purchase.

Does the Gen5 require calibration after installation?

Yes. Rhodan recommends a compass calibration after installation for accurate GPS Anchor performance. The process is straightforward and documented in the owner's manual.

Can the Gen5 follow a route or waypoints?

Yes. When connected to a compatible Simrad, Raymarine, or Lowrance chartplotter via the MFD Gateway, the Gen5 can follow routes and navigate to waypoints directly from your MFD.

How accurate is GPS Anchor positioning?

Rhodan describes the Gen5 as the market's most accurate GPS trolling motor and publishes submeter GPS accuracy specifications. Real-world holding performance varies with wind, current, sea state, vessel weight, and battery capacity.

---
