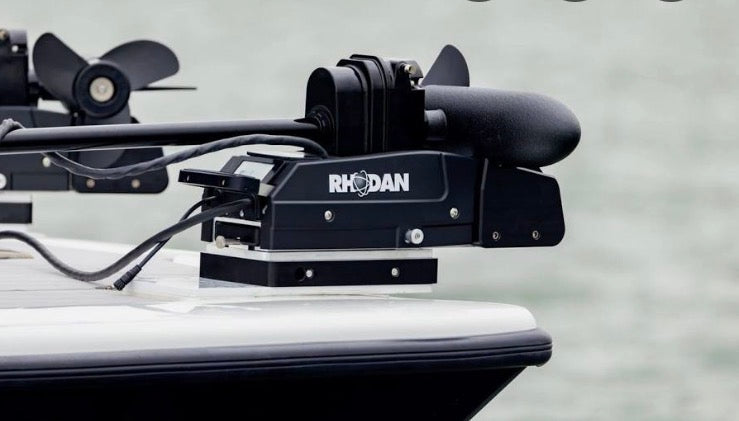

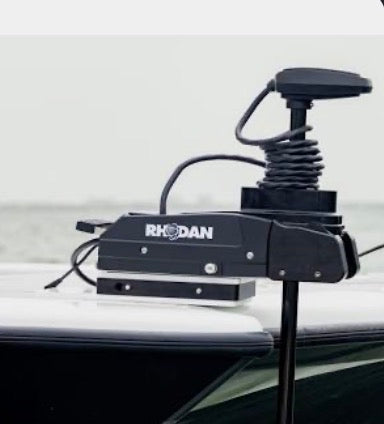

Rhodan Gen5 GPS Trolling Motor — 24V | 72" Shaft | Black
The Rhodan Gen5 72" Black (24V) is built for larger bay boats and coastal center consoles with a bow height between 36–42" and a vessel weight under 6,000 lbs. It delivers the same proven GPS Anchor technology, full-screen base display, and native Simrad, Raymarine, and Lowrance integration as every Gen5 motor — in the shaft length designed for higher bows that need deeper prop immersion.
Manufactured in Sarasota, Florida with 90% U.S. content. Backed by a 5-year limited warranty with direct access to Rhodan's customer service team.
Why Choose the 72" Shaft?
The 72" shaft is the longest 24V option in the Gen5 lineup — and the right choice when:
- Your bow height is between 36–42" — the 60" shaft won't provide adequate prop immersion at this bow height, especially in chop
- You fish in rougher nearshore or coastal conditions — the longer shaft keeps the prop deeper when waves push the bow up, maintaining thrust and GPS Anchor hold
- You want maximum prop immersion margin on a 24V system — the 72" is the top of the 24V range before stepping into 36V offshore territory
- You're between the 60" and 84" shaft — if your bow is near 36–42" and your boat is under 6,000 lbs, the 72" 24V is the correct fit before the 36V lineup begins
The 72" delivers the same 80 lbs of thrust and full Gen5 feature set as the shorter 24V shafts, with the added depth needed for higher-bow boats.
Shaft Selection at a Glance
| Shaft | Best Bow Height | Typical Boat | Voltage |
|---|---|---|---|
| 48" | Under 30" | Low-bow flats boats | 24V or 36V |
| 60" | 30–36" | Bay boats | 24V or 36V |
| 72" ← This motor | 36–42" | Large bay boats | 24V or 36V |
| 84" | 42–48" | Offshore center consoles | 36V |
| 96" | 48–54" | High-bow center consoles | 36V |
| 108" | 54–60" | Large offshore | 36V |
| 120" | 60"+ | Extreme offshore | 36V |
When in doubt, choose the next longer shaft. A prop that breaks the surface in chop loses all thrust instantly. → Use Rhodan's official size guide to confirm your selection.
Who Should Choose the Rhodan Gen5 24V 72" Shaft?
This motor is ideal for:
- Larger bay boats (20–26 ft) with bow heights between 36–42"
- Coastal center consoles up to approximately 5,500 lbs
- Inshore and nearshore saltwater anglers
- Anglers running Simrad, Raymarine, or Lowrance electronics
Excellent for these species and scenarios:
- Redfish · Snook · Tarpon · Speckled Trout · Cobia · Inshore Snapper · Flounder
- Bridge fishing and bridge pilings
- Oyster bars and shell bars
- Mangrove shorelines and creek mouths
- Dock fishing and tidal current edges
- Nearshore reef and wreck fishing
Not recommended for:
- Boats over 6,000 lbs (step up to 36V)
- Bow height over 42" (step up to 84"+ shaft in 36V)
- Offshore boats requiring maximum thrust in heavy seas
- Garmin chartplotter users (see Garmin Force Kraken)
Typical Boats for the 72" Shaft
The following are representative examples of boats that commonly pair with a 72" shaft at this bow height and weight range. This is not a compatibility guarantee — always confirm your specific bow height and vessel weight before ordering.
- Pathfinder 2200
- Key West 230 Bay Reef
- Sea Hunt BX series
- Sportsman Masters series
- Skeeter SX series
If your boat is in this class — larger bay boats and coastal center consoles in the 20–26 ft range with a bow height between 36–42" — the 72" 24V is typically the correct fit. Confirm your bow height measurement before ordering.
Is This Motor the Right Fit for Your Boat?
| Fit Factor | Recommendation |
|---|---|
| Boat length | Usually 20–26 ft |
| Vessel weight | Under 6,000 lbs |
| Bow height | 36–42" |
| Typical use | Inshore and protected nearshore |
| Step up when | Near 6,000 lbs, heavy current, or bow near 42" |
Compare Rhodan Gen5 Models at a Glance
| Model | Best For | Vessel Weight | Conditions |
|---|---|---|---|
| 24V 48" | Flats & bay boats (low bow) | Under 6,000 lbs | Moderate wind & current |
| 24V 60" | Bay boats (mid bow) | Under 6,000 lbs | Moderate wind & current |
| 24V 72" (this motor) | Larger bay boats (high bow) | Under 6,000 lbs | Moderate to stronger conditions |
| 36V 84"+ | Offshore center consoles | Up to 15,000 lbs | Heavy offshore use |
24V or 36V for the 72" Shaft?
The 72" shaft is available in both 24V and 36V. The correct voltage depends on your vessel weight:
- 24V (this motor) — 80 lbs thrust — correct for boats under 6,000 lbs
- 36V — 120 lbs thrust — correct for boats between 6,000 and 15,000 lbs → Rhodan Gen5 72" Black | 36V
If your boat is near the 6,000 lb boundary, choose 36V. More thrust means better GPS Anchor holding in current and chop, and longer runtime on the water.
GPS Anchor — Rhodan's Precision Dynamic Positioning System
Rhodan's GPS Anchor uses a dynamic positioning system that continuously calculates and applies thrust corrections to hold your exact GPS position — compensating for wind, current, and wave action in real time.
Activate GPS Anchor from the wireless FOB remote, the Rhodan app, or directly from the base display. Your position is locked until you release it — no drift, no repositioning, no dropped anchors.
Common uses include:
- Holding over oyster bars and shell bars
- Fishing docks, bridge pilings, and mangrove shorelines
- Anchoring on nearshore reefs and wrecks
- Waiting for tide changes on flats
- Holding position in tidal current without re-anchoring
How Does It Perform in Wind and Current?
The 24V Rhodan Gen5 provides excellent GPS position holding in moderate wind and tidal current on correctly sized vessels. If you regularly fish in heavy current, strong inlet conditions, or consistently demanding offshore environments, consider the 36V 72" model for additional thrust and longer runtime under load.
Full-Screen Base Display
- Battery voltage
- Amp draw
- Motor speed
- GPS Anchor location
- Heading
- Button controls for full motor operation from the base
Integrated Sliding Base — 10" of Front-to-Back Adjustment
The Gen5 sliding base provides 10 inches of front-to-back adjustment with locking points at each end.
Simrad, Raymarine & Lowrance Integration
The Gen5 supports native integration with compatible Simrad, Raymarine, and Lowrance displays through Rhodan's MFD Gateway and a properly configured NMEA 2000 network.
Important: Integration requires Rhodan's MFD Gateway, a compatible NMEA 2000 backbone, T-connector, and compatible display firmware. Confirm display compatibility and required networking hardware with Rhodan or TrollingMotors.shop before purchase.
If you run Garmin, the Garmin Force Kraken is the correct motor for native Garmin integration.
Rhodan App — Full Motor Control from Your Phone
The Rhodan app (iOS and Android, free) provides full motor control from your smartphone — speed, heading, GPS Anchor, and motor status.
Key Specifications
- Model: G5B24072
- Shaft length: 72"
- Finish: Black
- Voltage: 24V
- Thrust: 80 lbs
- Recommended vessel weight: Under 6,000 lbs
- Recommended bow height: 36–42"
- GPS system: GPS Anchor (dynamic positioning)
- MFD integration: Simrad, Raymarine, Lowrance (via MFD Gateway + NMEA 2000)
- Base display: Full-screen with button controls
- Sliding base: 10" front-to-back adjustment
- Warranty: 5-year limited
- Origin: Made in Sarasota, Florida (90% U.S. content)
- Required: Properly rated marine circuit breaker per current Rhodan Gen5 owner's manual
- Includes: Wireless FOB remote, Quick Release Bracket, RAM Mount Stabilizer
What's Included
- Wireless FOB remote
- Quick Release Bracket
- RAM Mount Stabilizer
- Owner's manual
- Warranty documentation
Required — not included: A properly rated marine circuit breaker. Confirm the correct Gen5 breaker SKU with Rhodan or TrollingMotors.shop before installation.
Before You Order — Checklist
- ☐ Confirm your bow height is between 36–42" (measured from mounting surface to waterline with a typical fishing load)
- ☐ Verify your vessel weight is under 6,000 lbs (if near the boundary, choose 36V)
- ☐ Confirm you have or will install a 24V battery system
- ☐ Verify adequate bow clearance for the 72" shaft at full deployment
- ☐ If using chartplotter integration: confirm NMEA 2000 backbone availability and display compatibility with Rhodan's MFD Gateway
Not sure about any of these? Contact TrollingMotors.shop before ordering — we'll help you confirm the right fit.
Before You Install — What You'll Need
Required:
- 24V battery system (two 12V batteries wired in series, or a dedicated 24V lithium battery)
- Properly rated marine circuit breaker — confirm correct Gen5 SKU with Rhodan or TrollingMotors.shop
- Marine-grade wiring in the correct gauge for your run length
- 24V battery charger
- Adequate bow clearance for the 72" shaft at full deployment
Required for MFD integration (if applicable):
- Rhodan MFD Gateway
- NMEA 2000 backbone with available T-connector drop port
- Compatible Simrad, Raymarine, or Lowrance display with current firmware
Recommended accessories:
- ABYSS 24V 100Ah lithium battery — maximum runtime, lighter weight, consistent voltage
- Battery monitor — track state of charge in real time
- Quick-disconnect connectors — simplify seasonal removal
Installation Overview
Most professional marine installations of the Rhodan Gen5 require approximately 3–5 hours depending on the existing wiring configuration, bow deck layout, and whether MFD integration is included. Rhodan recommends professional installation and a compass calibration after mounting for accurate GPS Anchor performance.
Pair With the Right Battery
- ABYSS 24V 60Ah Lithium Battery — recommended for most inshore applications
- ABYSS 24V 100Ah Lithium Battery — maximum runtime for full-day fishing
Typical Runtime — Planning Guidance Only
Runtime depends on boat weight, wind, current, throttle use, and battery capacity. The following are planning estimates based on a healthy 24V 100Ah LiFePO4 battery under typical inshore conditions — not guaranteed performance figures:
- Full-day inshore fishing under typical conditions
- Extended runtime when primarily using GPS Anchor with intermittent movement
- Reduced runtime in heavy current, strong wind, or at sustained higher throttle
Wire size: under 15 ft — 6 AWG minimum. 15–25 ft — 4 AWG minimum. Over 25 ft — 2 AWG minimum.
What to Expect After Ordering
- Expert pre-sale support — we'll confirm the right shaft, voltage, and battery for your boat before you buy
- Battery matching assistance — we'll recommend the correct 24V battery for your runtime needs
- Circuit breaker guidance — we'll confirm the correct Gen5 breaker SKU so your installation is done right
- MFD integration support — we'll help you confirm Gateway compatibility with your Simrad, Raymarine, or Lowrance display
- Fast order processing — in-stock orders ship promptly with free nationwide shipping
- Factory warranty intact — full 5-year Rhodan limited warranty, backed by direct manufacturer support
- Post-purchase support — we're here after delivery for installation questions and setup assistance
Questions before you order? Contact us at TrollingMotors.shop.
Why Buy From TrollingMotors.shop?
- ✓ Authorized Rhodan Marine Systems Dealer
- ✓ Free Nationwide Shipping
- ✓ Expert Technical Support — before and after your purchase
- ✓ Battery Matching Assistance
- ✓ Installation Advice
- ✓ Fast Order Processing
- ✓ Genuine OEM Product — factory warranty intact
Made & Supported in the USA
Every Rhodan Gen5 is manufactured in Sarasota, Florida using U.S. and globally sourced parts (90% U.S. content). When you call Rhodan Marine Systems, you reach their customer service team in Florida — not an overseas call center.
Rhodan Gen5 vs. Garmin Force Kraken
- Rhodan Gen5 — native Simrad, Raymarine, and Lowrance integration via MFD Gateway. Proven GPS Anchor heritage. Made in the USA.
- Garmin Force Kraken — native Garmin chartplotter integration. Brushless motor. The correct choice for anglers running Garmin electronics.
→ Full comparison: Garmin Force Kraken vs. Rhodan Gen5
Shop the Full Rhodan Gen5 Lineup
24V (80 lbs thrust — boats under 6,000 lbs):
- 48" | Black | 48" | White
- 60" | Black | 60" | White
- 72" | Black (this product) | 72" | White
36V (120 lbs thrust — boats under 15,000 lbs):
- 48" | Black | 48" | White
- 84" | Black | 84" | White
- 108" | Black | 108" | White
- 120" | Black | 120" | White
Frequently Asked Questions
What bow height is the 72" shaft designed for?
The 72" shaft is designed for boats with a bow height between 36–42". If your bow height is under 36", the 60" shaft is the correct choice. If your bow height is at or near 42", step up to the 84" shaft in 36V.
What is the maximum vessel weight for the 24V model?
The 24V Gen5 is rated for vessels under 6,000 lbs. For boats between 6,000 and 15,000 lbs, the 36V model (120 lbs thrust) is the correct choice.
Does the Gen5 work with Garmin chartplotters?
No — the Gen5 integrates natively with Simrad, Raymarine, and Lowrance via Rhodan's MFD Gateway. For Garmin integration, the Garmin Force Kraken is the correct motor.
Is a circuit breaker required?
Yes. Confirm the correct breaker SKU with Rhodan or TrollingMotors.shop before purchasing — do not use SKU A00155, which Rhodan identifies as a Legacy breaker not compatible with the Gen5.
Where is the Rhodan Gen5 made?
Sarasota, Florida, using U.S. and globally sourced parts (90% U.S. content).
What warranty does the Gen5 include?
A 5-year limited warranty with direct access to Rhodan's customer service department.
Can I use lithium batteries with the Rhodan Gen5?
Yes. The ABYSS 24V 60Ah and ABYSS 24V 100Ah are purpose-built for this motor.
Does the remote come included?
Yes. The Gen5 includes a wireless FOB remote, a Quick Release Bracket, and a RAM Mount Stabilizer.
Does the Gen5 support NMEA 2000?
Yes, via Rhodan's MFD Gateway. A properly configured NMEA 2000 backbone is required. Confirm hardware requirements before purchase.
Does it work with Simrad chartplotters?
Yes — native integration via Rhodan's MFD Gateway and NMEA 2000.
Does it work with Raymarine chartplotters?
Yes — native integration via Rhodan's MFD Gateway and NMEA 2000.
Does it work with Lowrance chartplotters?
Yes — native integration via Rhodan's MFD Gateway and NMEA 2000.
Does the Gen5 require calibration after installation?
Yes. Rhodan recommends a compass calibration after installation for accurate GPS Anchor performance.
Can the Gen5 follow a route or waypoints?
Yes, when connected to a compatible MFD via the MFD Gateway.
How accurate is GPS Anchor positioning?
Rhodan publishes submeter GPS accuracy specifications. Real-world holding performance varies with wind, current, sea state, vessel weight, and battery capacity.
