Minn Kota Riptide Terrova QUEST 90/115 72" White Diamond Complete System

Minn Kota Riptide Terrova QUEST + Abyss 36V 60Ah Lithium Power + Sea Swivel + Complete Charging, Wiring & Mounting System

Built for bay boats, center consoles, and saltwater fishing boats requiring a long-shaft, high-thrust GPS trolling-motor system.

72" Shaft • 36V 60Ah LiFePO4 • 115 lb Thrust @ 36V • QUEST Brushless • Sea Swivel • Minn Kota Quick Release

Complete Package MSRP: $8,863.37

Diamond Package Price: $7,999.99

YOU SAVE $863.38

---

The Minn Kota Riptide Terrova QUEST 72" Diamond Complete System

When you're installing a 72-inch Minn Kota Riptide Terrova QUEST, the trolling motor is only the beginning.

You still need to determine the right battery, charger, heavy-duty electrical connection, battery mounting system, quick-release hardware, and bow-mount solution—and make sure the major components work together.

We've already done the work.

The Minn Kota Riptide Terrova QUEST 90/115 72" White Diamond Complete System combines seven premium components into one carefully matched package built around Minn Kota's saltwater-rated QUEST brushless platform.

Your Diamond Complete System Includes:

Component	SKU	MSRP
Minn Kota Riptide Terrova QUEST 90/115 72" White	1363901	$4,299.99
Abyss 36V 60Ah Lithium Battery	AB‑36V60‑BT	$1,999.99
Sea Swivel Trolling Motor Mount	SEA‑HDM	$1,099.00
Abyss 36V 10A On-Board Lithium Charger	AB‑CRG‑36V10A	$499.99
Marinco 36V Wiring Kit w/ 70A Plug & Receptacle	36VWKS3	$444.42
Minn Kota MKA-56 Quick Release	1854056	$419.99
Abyss Group 31 Battery Tray	AB‑G31	$99.99
Total Package MSRP		$8,863.37
Diamond Package Price		$7,999.99
Your Savings		$863.38

---

One Package. Seven Premium Components. No Compatibility Guesswork.

This isn't simply a trolling motor bundle.

It's a complete 36V Minn Kota Riptide Terrova QUEST power, charging, electrical, and mounting system designed around the installation requirements of the 72" saltwater QUEST platform.

✓ 72" Riptide Terrova QUEST 90/115 White
✓ Single-Battery 36V 60Ah Abyss Lithium System
✓ Matching 36V 10A Onboard Lithium Charger
✓ Heavy-Duty Marinco Wiring & 70A Connection
✓ Minn Kota MKA-56 Heavy-Duty Quick Release
✓ Sea Swivel Trolling Motor Mount
✓ Abyss Group 31 Battery Tray

Instead of sourcing seven major components individually, the Diamond Complete System brings them together into one premium Riptide Terrova QUEST package.

---

Minn Kota Riptide Terrova QUEST 90/115 72" White — System Highlights

Specification	Details
Model	Minn Kota Riptide Terrova QUEST
Minn Kota SKU	1363901
Color	White
Shaft Length	72"
Environment	Saltwater
Motor Type	QUEST Brushless
Power System	24V or 36V
Rated Thrust	90 lb @ 24V / 115 lb @ 36V
Diamond Package Configuration	36V
Mounting Location	Bow
Steering	Electric Steer
GPS Navigation	Advanced GPS Navigation
Position Hold	Spot-Lock
Included Control	Wireless Remote
Included Package Battery	Abyss 36V 60Ah LiFePO4
Battery Form Factor	Group 31

Minn Kota specifies this Riptide Terrova QUEST for dual-voltage operation, producing 90 lb of thrust at 24V and 115 lb at 36V. This Diamond Complete System supplies a dedicated 36V battery system, allowing the motor to operate in its 115-lb-thrust configuration.

---

Why the 72" Riptide Terrova QUEST Gets a 60Ah Battery

The 72" Diamond Complete System pairs the Riptide Terrova QUEST with an Abyss 36V 60Ah lithium battery, creating a single-battery 36V power system without requiring three separate 12V batteries wired in series.

The 60Ah configuration provides a strong balance of capacity, physical footprint, weight, and installation simplicity for the applications targeted by this Diamond package. Actual runtime depends heavily on vessel size, motor output, wind, current, sea conditions, and other operating factors. Anglers who routinely operate in demanding current or use the trolling motor heavily throughout long fishing days may benefit from a higher-capacity battery system.

Abyss identifies the AB‑36V60‑BT as a Group 31 lithium trolling-motor battery specifically designed to replace a conventional three-battery 36V bank.

---

Minn Kota MKA-56 + Sea Swivel

The mounting system is one of the features that separates this Diamond package from a standard Riptide Terrova QUEST purchase.

The Minn Kota MKA-56 Quick Release and Sea Swivel perform two different jobs within the mounting system.

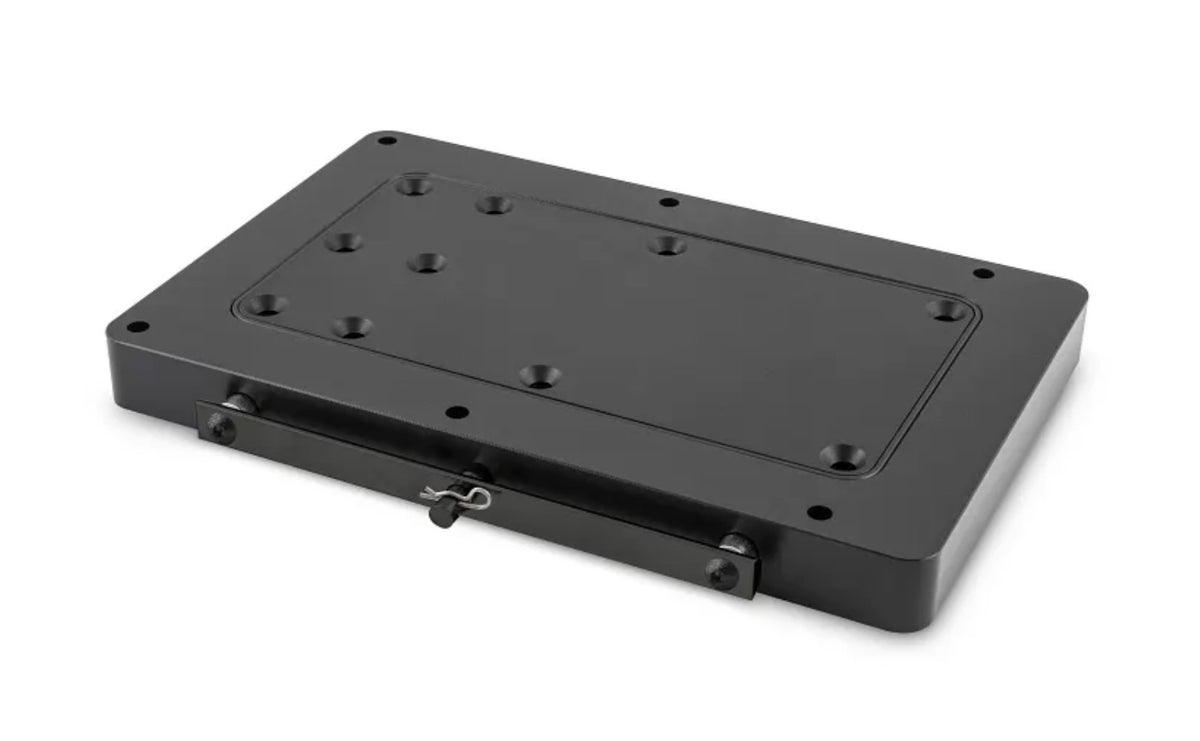

Minn Kota MKA-56 Quick Release

The MKA-56, SKU 1854056, is a heavy-duty quick-release bracket designed specifically for higher-thrust QUEST trolling motors and long shaft lengths.

It provides a removable interface between the trolling motor and mounting system while leaving a relatively low-profile mounting surface when the motor is removed. Minn Kota lists it as compatible with QUEST versions of Riptide Terrova and designed for freshwater or saltwater use.

Sea Swivel

The Sea Swivel SEA‑HDM adds the ability to change the trolling motor's stowed orientation to better accommodate the physical layout of the bow.

Sea Swivel specifically identifies the Minn Kota Terrova QUEST platform among its supported motors and notes that a quick-release bracket is required for installation.

That flexibility can be particularly valuable when working around:

• Anchor lockers
• Windlasses
• Bow rails
• Cleats
• Hatches
• Navigation lights
• Bow seating
• Forward electronics
• Other deck-mounted equipment

Together, the MKA-56 + Sea Swivel create a premium mounting solution for a 72" saltwater QUEST installation.

---

One 36V 60Ah Lithium Battery. One Complete Power System.

At the heart of this Diamond system is the Abyss 36V 60Ah LiFePO4 Battery, providing a dedicated 36V power source for the Riptide Terrova QUEST without requiring three separate 12V batteries wired in series.

The package combines it with:

Abyss 36V 10A On-Board Lithium Charger

Provides dedicated onboard charging for the included Abyss 36V 60Ah lithium battery.

Marinco 36V Wiring Kit

Provides the heavy-duty trolling-motor electrical system with 70A plug and receptacle.

Abyss Group 31 Battery Tray

Provides a dedicated marine battery mounting solution for the included Group 31 battery.

Diamond Power System

• Abyss 36V 60Ah LiFePO4 Battery
• Abyss 36V 10A On-Board Lithium Charger
• Marinco 36V Wiring Kit with 70A Plug & Receptacle
• Abyss Group 31 Battery Tray

The result is a complete 36V power architecture selected around the 72" Riptide Terrova QUEST rather than leaving the customer to assemble the electrical system component by component.

→ 24V vs. 36V vs. Dual Voltage QUEST Guide

---

Why These Seven Components?

Every component in the Diamond Complete System has a specific job.

Minn Kota Riptide Terrova QUEST 90/115 72" White

Provides QUEST brushless propulsion, 72" shaft reach, saltwater construction, Advanced GPS Navigation, Spot-Lock, and the trolling-motor platform at the center of the system.

Minn Kota MKA-56 Quick Release

Provides a heavy-duty removable mounting interface specifically designed for QUEST trolling motors.

Sea Swivel

Adds flexibility to the motor's stowed orientation, helping accommodate bow-layout obstacles and limited mounting space.

Abyss 36V 60Ah Lithium Battery

Provides a single-battery 36V power source for the motor's 115-lb-thrust configuration.

Abyss 36V 10A On-Board Charger

Provides onboard charging for the included 36V lithium battery.

Marinco 36V Wiring Kit

Provides the heavy-duty electrical connection between the trolling-motor power system and the motor.

Abyss Group 31 Battery Tray

Provides a dedicated mounting solution for the included battery.

Seven components. One purpose: build a premium 72" Riptide Terrova QUEST system without sourcing the major power, charging, electrical, and mounting components individually.

→ Browse All Minn Kota Riptide Terrova Motors

---

QUEST Brushless Power

At the center of the Riptide Terrova QUEST is Minn Kota's QUEST brushless motor platform.

The 90/115 QUEST configuration can operate on either 24V or 36V. Minn Kota rates it at 90 lb of thrust on 24V and 115 lb on 36V.

Because this Diamond Complete System includes a dedicated 36V Abyss battery, it is designed around the motor's 115-lb-thrust 36V configuration.

→ QUEST Brushless Technology — What It Means and Why It Matters

---

Advanced GPS Navigation & Spot-Lock

The Riptide Terrova QUEST incorporates Minn Kota's Advanced GPS Navigation system for trolling-motor positioning and navigation.

The motor's integrated GPS capabilities allow anglers to control boat position and movement using functions such as Spot-Lock and other supported Advanced GPS Navigation features.

Minn Kota also states that this generation incorporates the necessary heading technology without requiring a separate external heading sensor.

Available navigation functionality can vary according to motor, control interface, connected Humminbird electronics, mapping, software, and system configuration.

→ Spot-Lock with Jog — How It Works

---

One-Boat Network & Humminbird Integration

Compatible Riptide Terrova QUEST motors can integrate with compatible Humminbird marine electronics through the One-Boat Network, expanding the ways trolling-motor and navigation functions can be controlled.

Depending on the exact Humminbird, networking configuration, mapping, and software, supported functions may include trolling-motor control, Spot-Lock functionality, navigation functions, and other integrated capabilities.

Compatibility and available features vary by exact electronics configuration. Verify your Humminbird model and desired functionality before purchasing.

→ One-Boat Network — What It Is and How to Use It

---

Who Is the 72" Riptide Terrova QUEST Diamond System For?

The 72" Riptide Terrova QUEST is particularly well suited to saltwater boats that need more shaft reach than conventional 54" or 60" installations but don't require the extreme shaft lengths used on very high-freeboard offshore boats.

This Diamond package should be considered for applications such as:

• Bay boats
• Center consoles
• Coastal fishing boats
• Boats with elevated bow mounting surfaces
• Boats with substantial mounting-surface-to-waterline distance
• Boats frequently operated in chop or conditions involving significant bow movement

Do not select a 72" shaft based on boat length alone.

The correct trolling-motor shaft length depends primarily on the vertical distance between the trolling-motor mounting surface and waterline, together with vessel loading, expected waves, chop, and bow movement.

→ Trolling Motor Shaft Length Guide

---

Frequently Asked Questions

Does the Riptide Terrova QUEST 90/115 operate on 24V or 36V?

Both. Minn Kota's 90/115 QUEST platform is dual voltage. This Diamond Complete System is specifically configured for 36V operation, allowing the Riptide Terrova QUEST to operate at its 115 lb rated thrust.

Does this package require three 12V batteries?

No. The package includes one Abyss 36V 60Ah LiFePO4 battery, providing a dedicated 36V power source without assembling three individual 12V batteries in series.

Is the Riptide Terrova QUEST designed for saltwater?

Yes. Minn Kota identifies SKU 1363901 as a saltwater trolling motor.

Does the motor include a remote?

Yes. Minn Kota lists the wireless remote, lanyard, MKP-40 prop, MKA-60 stabilizer kit, and mounting hardware among the included equipment for SKU 1363901.

Why does this package include both the MKA-56 and Sea Swivel?

They perform different functions. The MKA-56 provides the heavy-duty quick-release interface for the QUEST motor, while the Sea Swivel allows the stowed orientation of the trolling motor to be adjusted to better accommodate the boat's bow layout.

Is the MKA-56 appropriate for the 72" Riptide Terrova QUEST?

Yes. Minn Kota specifically lists the heavy-duty QUEST quick-release brackets for Riptide Terrova QUEST motors with 72" or longer shafts, including the MKA-56.

How long will the 36V 60Ah battery run the Riptide Terrova QUEST?

Runtime cannot be accurately stated as a single number because trolling-motor power consumption changes substantially with thrust setting, boat size and weight, wind, current, sea conditions, propeller condition, and how the motor is being used. The included Abyss 36V 60Ah battery provides a dedicated single-battery 36V power source for this Diamond system, but actual runtime will vary by installation and operating conditions.

How do I know if I need a 72" shaft?

Measure vertically from the trolling-motor mounting surface to the waterline and account for the conditions in which the boat will normally operate. Waves, chop, vessel loading, and bow movement can all increase the shaft reach needed to keep the propeller adequately submerged.

Does this package include everything required for installation?

It includes the seven major components listed on this page. Boat-specific installations may still require circuit protection, additional conductors, fasteners, backing plates, sealant, adapters, cable-management hardware, fabrication, or other installation materials.

---

Important Installation Information

The Diamond Complete System includes the seven major components listed above for building a premium Minn Kota Riptide Terrova QUEST 36V lithium system.

Boat-specific installation requirements vary. Depending on the vessel and installation, additional items may be required, including:

• Circuit protection
• Additional conductors or cable
• Fasteners
• Backing plates
• Sealant
• Cable-management hardware
• Adapters
• Fabrication
• Additional mounting hardware

Always follow current Minn Kota, Abyss Battery, Marinco, and Sea Swivel installation requirements for each individual component.

---

The Diamond Complete System Advantage

The Diamond Complete System designation means this isn't just a trolling motor with a few accessories added to the cart.

It's our premium approach to building the major systems surrounding the trolling motor:

Motor + Power + Charging + Electrical Connection + Battery Mounting + Quick Release + Bow Mounting Solution

For the Riptide Terrova QUEST 72", we've paired Minn Kota's 90/115-lb dual-voltage QUEST brushless saltwater motor with a 36V 60Ah lithium power system, dedicated onboard charging, heavy-duty Marinco electrical connection, Minn Kota MKA-56 Quick Release, and Sea Swivel mounting system.

Complete Package MSRP	$8,863.37
Diamond Package Price	$7,999.99
You Save	$863.38

Ready to Build Your Riptide Terrova QUEST System?

Add the Minn Kota Riptide Terrova QUEST 90/115 72" White Diamond Complete System to your cart.

Not sure whether the 72" shaft or Sea Swivel mounting configuration is right for your boat? Contact TrollingMotors.shop before ordering. Send us your boat make, model, and year, your trolling-motor mounting-surface-to-waterline measurement, and preferably a photo of the bow mounting area. We can help you evaluate the system before you purchase.

---
