How to Choose the Right Shaft Length for Your Power-Pole MOVE Offshore Trolling Motor
Choosing the right shaft length for your Power-Pole MOVE Offshore trolling motor is the most important decision in the buying process — more important than voltage, thrust rating, or finish. A shaft that is too short will not keep the propeller submerged in offshore swells. A shaft that is too long adds unnecessary weight and leverage without any performance benefit. The right shaft is the one that matches your boat.
→ Not sure whether you need the MOVE Offshore or the standard MOVE PV? MOVE PV vs. MOVE Offshore — Which Series Is Right for Your Boat?
Quick Decision Table — Which Shaft Is Right for You?
| Shaft | Best For | Bow-to-Waterline |
|---|---|---|
| 84" | 28–32 ft offshore center consoles with moderate bow height — entry into the Offshore platform | 42–52" |
| 96" | 30–38 ft offshore center consoles — the best fit for most offshore anglers | 52–62" |
| 110" | 35 ft+ offshore boats with extreme bow height and demanding bluewater conditions | 62"+ |
The 96" is the right motor for most offshore anglers. If your bow-to-waterline measurement falls between 52" and 62", start there. Read on to confirm your measurement and understand why offshore conditions make shaft length more critical than on inshore boats.
The One Measurement That Determines Your Shaft Length
The correct shaft length is determined by a single measurement: your bow-to-waterline distance — the vertical distance from the top of the trolling motor mounting surface on your bow to the waterline, measured under real fishing conditions.
This measurement matters because it determines how much shaft length is required to keep the propeller adequately submerged. In calm water, a marginally short shaft may appear to work. In offshore swells, the bow rises and falls continuously — and a prop that is marginally submerged in calm water will break the surface repeatedly in real offshore conditions, losing all thrust instantly every time it does.

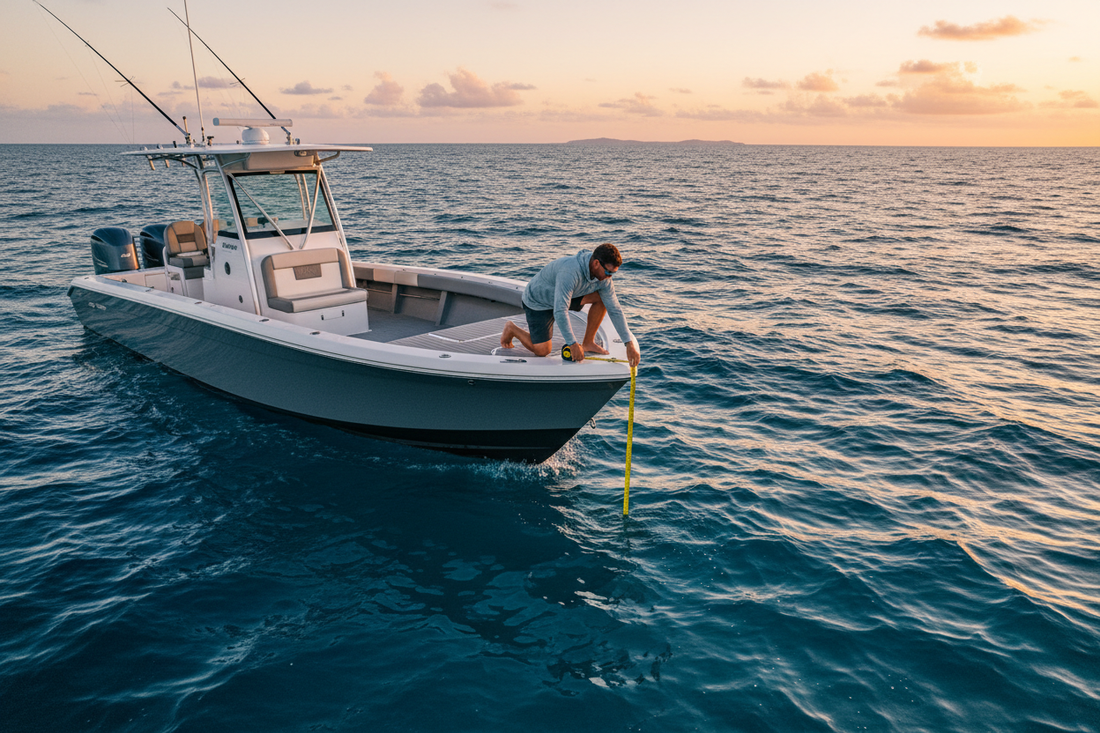

How to Measure Bow-to-Waterline — Offshore-Specific Instructions
Offshore boats require more care in measurement than inshore boats. Loading significantly affects bow height on larger offshore platforms, and an unloaded measurement will underestimate the shaft length you need.
Before measuring, load the boat as you would for a typical fishing day:
- Full fuel load
- Batteries installed and fully charged
- Fishing gear, coolers, and tackle loaded
- Crew weight accounted for
- Boat floating normally at the dock
Then measure:
- Measure from the top of the mounting surface to the waterline — vertically, not along the hull. The mounting surface is where the trolling motor bracket attaches to the bow.
- Record the measurement in inches.
- Match to the shaft length table above. When in doubt at the boundary between two shaft lengths, size up.
Important: Two boats of the same length can have very different bow heights depending on hull design, deadrise, rigging, and load. Always measure your specific boat — do not rely on general recommendations by boat length alone.
Why Offshore Measurements Differ from Inshore Measurements
Offshore boats often require longer shafts than similarly sized inshore boats — and the reason is not simply that offshore boats are larger. It is a combination of three factors that are unique to offshore platforms:
Greater freeboard. Offshore center consoles are built with taller bows than inshore boats of similar length. A 32 ft offshore center console will typically have a significantly higher bow-to-waterline measurement than a 32 ft bay boat or flats boat. The offshore hull is designed to handle open ocean conditions — and that design means more bow height above the waterline.
Bow movement in offshore swell. Offshore boats in real sea conditions pitch continuously — the bow rises and falls with every swell. A prop that is adequately submerged in calm water at the dock may break the surface repeatedly in 3–5 ft offshore swell. The shaft length you choose must account for the full range of bow movement in the conditions you actually fish in, not just the measurement at the dock.
GPS Anchor Lock performance depends on propeller depth. A prop that breaks the surface loses thrust authority instantly — and GPS Anchor Lock cannot compensate for a prop that is out of the water. On offshore boats in real sea conditions, adequate shaft length is the foundation of GPS Anchor Lock performance, not a comfort feature.
This is why offshore shaft lengths start at 84" and extend to 110", while inshore shaft lengths typically range from 36" to 72".
When in Doubt, Go Longer
Offshore conditions create more bow rise, more pitching, and greater propeller movement than inshore conditions. When you are between shaft lengths — when your measurement falls near the boundary between 84" and 96", or between 96" and 110" — the correct decision is almost always to size up.
A shaft that is slightly longer than your minimum requirement provides a meaningful performance buffer in offshore conditions:
- The prop stays submerged through a greater range of bow movement in swell
- GPS Anchor Lock maintains thrust authority through more of the pitching cycle
- The motor performs consistently in heavier conditions than you planned for
The cost of a shaft that is too short — a prop that breaks the surface in offshore swells, losing all thrust and GPS Anchor Lock performance — is far greater than the minor weight penalty of sizing up one shaft length.
The one constraint: confirm that the longer shaft stows correctly on your bow and clears the water when deployed. On most offshore center consoles, this is not an issue. If you have any doubt, contact us before purchasing.
Real Boat Examples
These examples illustrate how bow-to-waterline measurements translate to shaft length recommendations on common offshore platforms. Use them as a reference — always confirm with your own measurement.
| Boat | Typical Bow-to-Waterline | Recommended Shaft |
|---|---|---|
| 29 ft offshore bay boat / coastal center console | ~46" | 84" Offshore |
| 30 ft offshore center console (moderate freeboard) | ~52" | 84" or size up to 96" if fishing in heavy swell |
| 30 ft offshore center console (high freeboard) | ~54" | 96" Offshore |
| 33 ft offshore center console | ~56" | 96" Offshore |
| 36 ft offshore center console | ~60" | 96" Offshore |
| 39 ft offshore center console | ~64" | 110" Offshore |
| 42 ft offshore center console / sportfishing boat | ~68" | 110" Offshore |
| Offshore catamaran (large) | ~62–70" | 110" Offshore |
These are typical measurements only. Hull design, rigging, and load vary significantly. Always measure your specific boat under real fishing conditions before purchasing.
The Offshore Decision Flow
Follow these steps to confirm the right shaft for your boat:
- Measure bow-to-waterline — loaded, at the dock, vertically from mounting surface to waterline
- Consider your typical sea conditions — coastal chop, moderate offshore swell, or heavy bluewater conditions
- Determine your boat size and freeboard — larger boats with higher bows need longer shafts
- Match to the shaft length table — 84", 96", or 110"
- When in doubt at the boundary, size up
- Confirm on the product page and contact us if you have any questions before purchasing
The 84" Offshore — Introduction to the Offshore Platform
The 84" is the entry point into the MOVE Offshore platform. It is designed for boats with bow-to-waterline measurements between 42" and 52" — larger inshore and coastal center consoles, 26–32 ft offshore boats with moderate freeboard, and boats that have outgrown the standard MOVE PV lineup but do not require the additional shaft length of the 96".
The 84" is the correct choice when:
- Your bow-to-waterline measurement falls between 42" and 52"
- You fish primarily in coastal and nearshore conditions rather than far offshore bluewater
- You are stepping up from the standard MOVE PV lineup and need the Offshore platform's heavier-duty hardware
- Your boat is in the 26–32 ft range with moderate to high freeboard
The 84" is not the right choice if your bow-to-waterline measurement exceeds 52" — in that case, the 96" is the correct shaft.
→ 84" Offshore | Black | 84" Offshore | White
The 96" Offshore — Best All-Around Choice for Most Offshore Anglers
The 96" is the flagship of the MOVE Offshore lineup and the best all-around choice for most offshore anglers. It covers the bow-to-waterline range of the majority of 32–38 ft offshore center consoles — the most common offshore fishing platform in the U.S. market — and delivers the propeller depth needed for consistent GPS Anchor Lock performance in real offshore conditions.
The 96" is the correct choice when:
- Your bow-to-waterline measurement falls between 52" and 62"
- You fish offshore regularly in real sea conditions — chop, current, and moderate to heavy swell
- Your boat is in the 32–38 ft range — the most common offshore center console size
- You need the best balance of shaft length, weight, and offshore performance
The 96" is the motor most offshore anglers should buy. If your bow-to-waterline measurement is under 62", the 96" is almost certainly the correct shaft.
→ 96" Offshore | Black | 96" Offshore | White
The 110" Offshore — The Ultimate Bluewater Solution
The 110" is the halo model of the entire MOVE lineup — the ultimate solution for the largest offshore fishing boats operating in the most demanding bluewater conditions. It is not for every offshore angler. It is for a specific buyer: the owner of one of the largest offshore platforms with a bow-to-waterline measurement exceeding 62" who regularly fishes in demanding bluewater conditions where propeller depth, shaft rigidity, and GPS Anchor Lock reliability are non-negotiable.
The 110" is the correct choice when:
- Your bow-to-waterline measurement exceeds 62"
- You operate one of the largest offshore center consoles — 38–45 ft+
- You routinely fish in heavy offshore swell where propeller depth in pitching conditions is critical
- You fish bluewater conditions — Gulf wrecks, Atlantic reefs, tuna grounds, swordfish grounds, deep offshore structure
Boats that typically require the 110" include Yellowfin 36–42, Contender 39–44, Invincible 37–42, SeaVee 390–450, Regulator 41–45, Jupiter 38–43, Everglades 395–435, and Freeman 42–48 catamarans. Always confirm with a bow-to-waterline measurement.
→ 110" Offshore | Black | 110" Offshore | White
Black or White — Does Finish Affect Shaft Length Choice?
No. Every MOVE Offshore shaft length is available in both black and white. Performance, specifications, and warranty coverage are identical across both finishes. The finish choice is entirely about your boat's rigging and aesthetic.
- Black — the rugged performance choice for any offshore platform regardless of finish
- White — the OEM-style choice for premium offshore center consoles rigged with white outboards, white Power-Pole anchors, and white gelcoat
Voltage — 24V or 36V for Offshore Use?
Every MOVE Offshore motor runs on 24V or 36V. For offshore applications, 36V is strongly recommended across all shaft lengths — 100 lbs of thrust, maximum runtime on long offshore days, and the power reserve needed to hold position in strong current and heavy chop on larger offshore platforms.
Pair with an ABYSS 36V lithium battery:
- ABYSS 36V 60Ah — day trips and moderate offshore use
- ABYSS 36V 75Ah — full offshore days and extended use
- ABYSS 36V 105Ah — maximum runtime for long offshore days and charter operations
The MOVE Offshore vs. Standard MOVE PV — Which Platform Do You Need?
The standard MOVE PV lineup covers shaft lengths from 36" to 72" and is designed for inshore and coastal applications — bay boats, flats boats, skiffs, and coastal center consoles with bow-to-waterline measurements up to approximately 42". If your boat falls in that range, the standard MOVE PV lineup is the right choice.
The MOVE Offshore lineup covers shaft lengths from 84" to 110" and adds the engineering required for larger offshore boats: a carbon fiber reinforced titanium shaft, Offshore HD mount, reinforced TechFlow propeller, and multi-layer corrosion protection designed for open ocean use.
→ Full Comparison: MOVE PV vs. MOVE Offshore — Which Series Is Right for Your Boat?
The C-Monster 2.0 Ecosystem — Identical Across All Shaft Lengths
GPS Anchor Lock, ProNav GPS navigation, the Power-Pole App, and CHARGE compatibility are identical across all MOVE Offshore shaft lengths and finishes. The shaft length decision does not affect the technology package.
→ C-Monster App, ProNav & CHARGE — The Complete Guide
Frequently Asked Questions
How do I measure my offshore boat for a trolling motor?
Measure the vertical distance from the top of the trolling motor mounting surface on your bow to the waterline — with the boat loaded as you would for a typical fishing day (full fuel, batteries, gear, and crew). Measure vertically, not along the hull. This is your bow-to-waterline measurement. Match it to the shaft length table above.
Is 84" enough for my boat?
If your bow-to-waterline measurement falls between 42" and 52", the 84" is the correct shaft. If your measurement exceeds 52", the 96" is the correct shaft. If you fish regularly in heavy offshore swell and your measurement is near 52", consider sizing up to the 96" for the additional performance buffer in demanding conditions.
When should I choose the 96"?
The 96" is the best all-around choice for most offshore anglers — covering the bow-to-waterline range of the majority of 32–38 ft offshore center consoles. If your bow-to-waterline measurement falls between 52" and 62", the 96" is almost certainly the correct shaft. It is the motor most offshore anglers should buy.
Who actually needs the 110"?
Owners of large offshore platforms with bow-to-waterline measurements exceeding 62" who regularly fish in demanding bluewater conditions — 38–45 ft+ offshore center consoles, large offshore catamarans, sportfishing boats, and bluewater platforms. If your measurement is under 62", the 96" is the correct motor.
Is it better to choose a shaft that's slightly too long?
In offshore applications, yes — when you are between shaft lengths, sizing up is almost always the correct decision. A shaft that is slightly longer than your minimum requirement provides a meaningful performance buffer in offshore swell, keeping the prop submerged through more of the pitching cycle and maintaining GPS Anchor Lock performance in heavier conditions. The cost of a shaft that is too short — a prop that breaks the surface — is far greater than the minor weight penalty of sizing up.
Can I use the MOVE Offshore inshore?
Yes — the motor will function inshore. However, if your bow-to-waterline measurement is under 42", the standard MOVE PV lineup is the correct choice. The MOVE Offshore is engineered for larger offshore platforms and the heavier-duty hardware adds weight and cost that provides no benefit on inshore boats that don't require it.
What's the difference between MOVE PV and MOVE Offshore shaft recommendations?
The MOVE PV lineup covers 36"–72" for inshore and coastal boats with bow-to-waterline measurements up to approximately 42". The MOVE Offshore lineup covers 84"–110" for larger offshore platforms with bow-to-waterline measurements from 42" to 62"+. The Offshore platform also adds a carbon fiber reinforced titanium shaft, Offshore HD mount, reinforced TechFlow propeller, and multi-layer corrosion protection designed for open ocean use — engineering that the standard MOVE PV is not designed to provide.
Does the shaft length affect the GPS Anchor Lock or C-Monster features?
No. GPS Anchor Lock, ProNav, the Power-Pole App, and CHARGE compatibility are identical across all MOVE Offshore shaft lengths. The shaft length decision does not affect the technology package.
Should I choose 24V or 36V for offshore use?
36V is strongly recommended for all MOVE Offshore models in offshore applications. It delivers 100 lbs of thrust (vs. 78 lbs at 24V), maximizes runtime on long offshore days, and provides the power reserve needed to hold position in strong current and heavy chop on larger offshore platforms.
