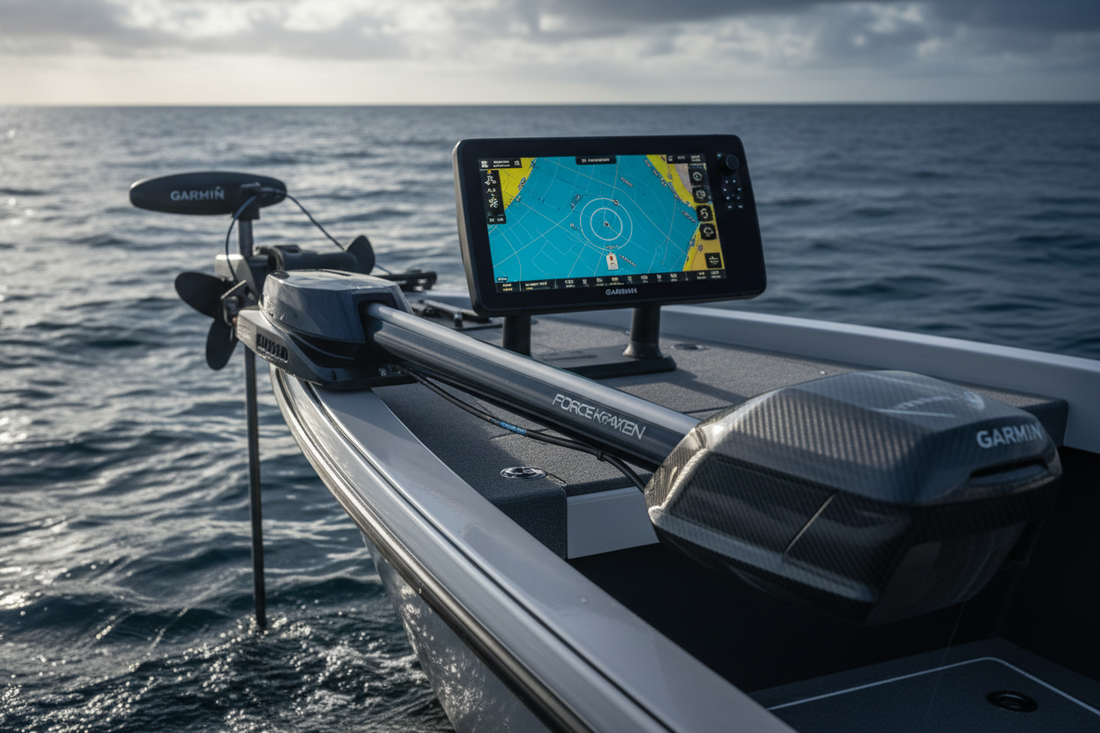

Garmin Force Kraken Wireless Integration & Anchor Lock GPS Technology Explained

May 23, 2026

Published: August 2026

30-Second Answer

The Garmin Force Kraken connects wirelessly to compatible Garmin chartplotters, allowing trolling motor control — including steering, speed, and Anchor Lock — directly from the chartplotter display. Anchor Lock uses GPS positioning to maintain a selected boat position by automatically steering and operating the propeller as needed.

Wireless integration: Requires a compatible Garmin chartplotter. Verify compatibility with your specific chartplotter model and software version before purchasing.
Anchor Lock: GPS-based position hold built into the Kraken. Performance depends on GPS signal quality, conditions, vessel characteristics, available thrust, and setup.
Multi-band GPS: Garmin describes Force Kraken’s Anchor Lock as using multi-band GPS signal reception together with an integrated AHRS. Garmin’s current specifications identify the built-in receiver as dual-frequency GPS.
Ecosystem integration: Compatible Garmin electronics unlock chartplotter-based control and integrated navigation features, but Kraken’s basic operation does not require a Garmin chartplotter.
Saltwater-rated: Designed for offshore and saltwater applications. Verify shaft length and thrust for your specific boat.

Dealer take: The most important pre-purchase step is verifying chartplotter compatibility. Not every Garmin chartplotter supports full Kraken integration. Confirm your specific model and software version are compatible before ordering. Also confirm whether the foot pedal is included or sold separately for your configuration — it is sold separately.

How You Can Control Force Kraken

Force Kraken supports multiple control methods. Understanding which are included and which require additional purchases is important before ordering.

Control Method	What to Know
Included wireless remote	Included with Kraken. Garmin states the wireless remote can operate every motor feature.
Compatible Garmin chartplotter	Provides integrated trolling-motor control. Exact supported functions vary by display model and software version.
ActiveCaptain app	Provides supported mobile-device control of certain features.
Compatible Garmin watch	Supports selected trolling-motor controls.
Wireless foot pedal	Optional accessory. Sold separately — not included with Kraken.

Garmin explicitly states the included wireless remote can operate every feature, while chartplotter, app, watch, and foot-pedal control provide access to certain features. Verify the exact functions supported by your specific control configuration before purchasing.

Chartplotter Integration

With a compatible Garmin chartplotter, Kraken can integrate trolling-motor control with Garmin navigation functions, including supported routes, patterns, and tracks. Exact chartplotter-based functions vary by display model and software version. Verify compatibility and supported functions for your exact chartplotter before purchasing.

This integration is designed for anglers already running compatible Garmin chartplotters who want to consolidate boat control onto a single display rather than managing separate remotes alongside navigation screens.

What to Verify Before Purchasing

Garmin chartplotter compatibility varies by model and software version. Not all Garmin chartplotters support full Force Kraken integration. Garmin’s compatibility documentation is the authoritative source.

Anchor Lock, Heading Hold, and Other Positioning Modes

Force Kraken includes several GPS-based positioning and navigation modes. Understanding the distinction between them helps set accurate expectations before purchasing.

Anchor Lock

Anchor Lock uses GPS-based positioning to maintain a selected boat position. When engaged, Kraken automatically steers and operates the propeller as needed to maintain that position. Actual holding performance varies with conditions, vessel characteristics, available thrust, GPS reception, and setup. Garmin does not publish a single universal holding-radius specification that applies in all conditions.

Anchor Lock Jog

Allows incremental repositioning of the Anchor Lock hold point without fully deactivating position hold.

Heading Hold

Heading Hold keeps the boat moving on a selected heading rather than holding a fixed GPS position. This is distinct from Anchor Lock, which holds a GPS position.

Cruise Control

Maintains a selected propeller speed while underway, independent of GPS position hold.

Route Following

Allows Kraken to follow supported navigation routes created on a compatible Garmin chartplotter.

For a broader explanation of how GPS anchor lock systems work across different trolling motor brands, see: What Is GPS Anchor Lock and Why Does It Matter for Fishing?

Multi-Band GPS and AHRS

Garmin describes Force Kraken’s Anchor Lock as using multi-band GPS signal reception together with an integrated AHRS (Attitude and Heading Reference System) to provide its most precise boat-positioning technology. Garmin’s current specifications identify the built-in receiver as dual-frequency GPS.

Actual position-holding performance still varies with conditions and vessel setup. Garmin does not publish a single universal holding-radius specification that applies in all conditions.

LiveScope Cable Integration

Force Kraken includes integrated cable-routing capability for Garmin LiveScope installations. The LiveScope transducer cable can be routed through the trolling-motor shaft to help protect and manage the cable. A LiveScope transducer and the Kraken LiveScope Mounting Bracket are additional purchases. The mounting bracket allows a LiveScope transducer to operate in forward, down, and perspective modes.

Verify compatibility for the exact LiveScope transducer, chartplotter, and Kraken configuration you are installing before purchasing.

Force Kraken vs Other Premium Trolling Motors

The Force Kraken is one of several premium GPS-equipped trolling motors available in 2026. The primary differentiators are ecosystem integration, deployment architecture, and target application.

Force Kraken vs Minn Kota Ultrex QUEST

Force Kraken integrates with compatible Garmin chartplotters and Garmin marine electronics. The Minn Kota Ultrex QUEST integrates with Humminbird electronics through One-Boat Network. Both offer GPS anchor hold and wireless chartplotter control within their respective ecosystems. The right choice depends primarily on which electronics ecosystem you are already running. See our full comparison: Garmin Force Kraken vs Minn Kota Ultrex — Which Wins in 2026?

Available Configurations

The Force Kraken is available in multiple shaft lengths. Shaft length selection should be based on your boat’s bow height, typical operating conditions, and Garmin’s shaft length guidance for your specific hull. See our Garmin Trolling Motor Shaft Length Guide for sizing guidance.

Dealer Insight: What We See in the Field

Chartplotter compatibility verification is the most common pre-purchase gap. Anglers assume their existing Garmin chartplotter will support full Kraken integration without checking. Compatibility varies by model and software version. Verify before ordering.
Anchor Lock performance varies with conditions. GPS reception, wind, current, vessel characteristics, available thrust, and setup can all affect position-holding behavior. Garmin does not publish a single universal holding-radius specification that applies in all conditions.
The foot pedal is sold separately. Anglers frequently assume it is included. The wireless remote is included and can operate every feature. The foot pedal is an optional accessory purchased separately.
The Kraken is an ecosystem purchase, not just a trolling motor purchase. Anglers who get the most from it are already running compatible Garmin chartplotters and sonar. If you are not in the Garmin ecosystem, evaluate whether the integration benefits justify the investment compared to alternatives.
Installation requires hand tools and specified torque values. Garmin’s Force Kraken installation instructions specify hand tools during applicable assembly procedures and warn that power tools can damage components and may void the warranty. Follow the current installation instructions and specified torque values for the exact mounting configuration. See: Why You Need to Use a Torque Wrench When Installing a Trolling Motor.
Shaft length selection affects motor performance and usability. Choosing too short a shaft can allow the propeller to lose effective submergence as the bow moves, while unnecessary shaft length can create installation or operational compromises. Use Garmin’s shaft-length guidance and your boat’s actual bow-to-water geometry before ordering.

Before You Order

Verify chartplotter compatibility. Confirm your specific Garmin chartplotter model and software version support Force Kraken integration. Garmin’s compatibility documentation is the authoritative source.

Verify shaft length for your hull. Shaft length should be selected based on your bow height and Garmin’s guidance for your specific boat. See our Garmin Shaft Length Guide.

Confirm voltage and thrust requirements. Force Kraken supports 24V or 36V operation. Garmin rates maximum thrust at 80 lb on 24V and 100 lb on 36V with the high-efficiency propeller under ISO 13342. Choose the electrical system based on your exact boat and application and Garmin’s installation requirements.

Confirm whether you need the foot pedal. The wireless remote is included and can operate every feature. The foot pedal is sold separately. Confirm before ordering whether your intended setup requires it.

Plan the installation before purchasing. Garmin’s Force Kraken installation instructions specify hand tools during applicable assembly procedures and warn that power tools can damage components and may void the warranty. Review the installation requirements before purchasing.

Verify LiveScope compatibility if that matters to you. If you intend to use LiveScope with the Kraken, confirm that your specific transducer, chartplotter, and Kraken configuration are compatible. The LiveScope Mounting Bracket is a separate purchase. Verify before ordering.

Frequently Asked Questions

Does the Garmin Force Kraken work with all Garmin chartplotters?

No. Compatibility varies by chartplotter model and software version. Verify that your specific Garmin chartplotter is compatible with the Force Kraken before purchasing. Garmin’s compatibility documentation is the authoritative source.

How accurate is Garmin Anchor Lock?

Garmin does not publish a single universal position-hold accuracy specification that applies across all conditions. Performance depends on GPS signal quality, satellite availability, wind and current conditions, water depth, vessel characteristics, and available thrust. For a broader explanation of how GPS anchor lock systems work, see: What Is GPS Anchor Lock and Why Does It Matter for Fishing?

What is the difference between Anchor Lock and Heading Hold?

Anchor Lock maintains a selected GPS position — the motor steers and operates the propeller to keep the boat at that location. Heading Hold keeps the boat moving on a selected heading rather than holding a fixed GPS position. Both are built-in features of Force Kraken.

Does the Force Kraken work with Garmin LiveScope?

Force Kraken includes integrated cable-routing for LiveScope installations. The LiveScope transducer cable can be routed through the trolling-motor shaft. A LiveScope transducer and the Kraken LiveScope Mounting Bracket are additional purchases. Verify compatibility for your specific transducer and chartplotter configuration before purchasing.

Can I use the Force Kraken without a Garmin chartplotter?

Yes. The included wireless remote can operate Force Kraken without a chartplotter. Garmin also supports additional control through compatible devices, including the optional foot pedal, ActiveCaptain app, compatible Garmin watches, and compatible Garmin chartplotters. The foot pedal is sold separately.

Is the foot pedal included with the Force Kraken?

No. The wireless remote is included and can operate every motor feature. The foot pedal is an optional accessory sold separately.

What is the difference between Garmin Anchor Lock and Minn Kota Spot-Lock?

Both are GPS-based position hold systems that use motor adjustments to maintain boat position. Force Kraken integrates with compatible Garmin chartplotters and Garmin marine electronics; Anchor Lock is Kraken’s GPS-based position-hold function. Spot-Lock is Minn Kota’s equivalent, integrating with Humminbird electronics through One-Boat Network. The right choice depends primarily on which electronics ecosystem you are running. See: Garmin Force Kraken vs Minn Kota Ultrex.

What voltage and thrust does the Force Kraken support?

Force Kraken supports 24V or 36V operation. Garmin rates maximum thrust at 80 lb on 24V and 100 lb on 36V with the high-efficiency propeller under ISO 13342. Verify your battery configuration and capacity before purchasing.

How do I install the Force Kraken correctly?

Garmin’s Force Kraken installation instructions specify hand tools during applicable assembly procedures and warn that power tools can damage components and may void the warranty. Use a calibrated torque wrench and follow the specified torque values for your exact mounting configuration. See: Why You Need to Use a Torque Wrench When Installing a Trolling Motor.

What is the difference between the Garmin Force and Force Kraken?

See our full breakdown: Garmin Force vs Force Kraken — Which Is Right for You?
