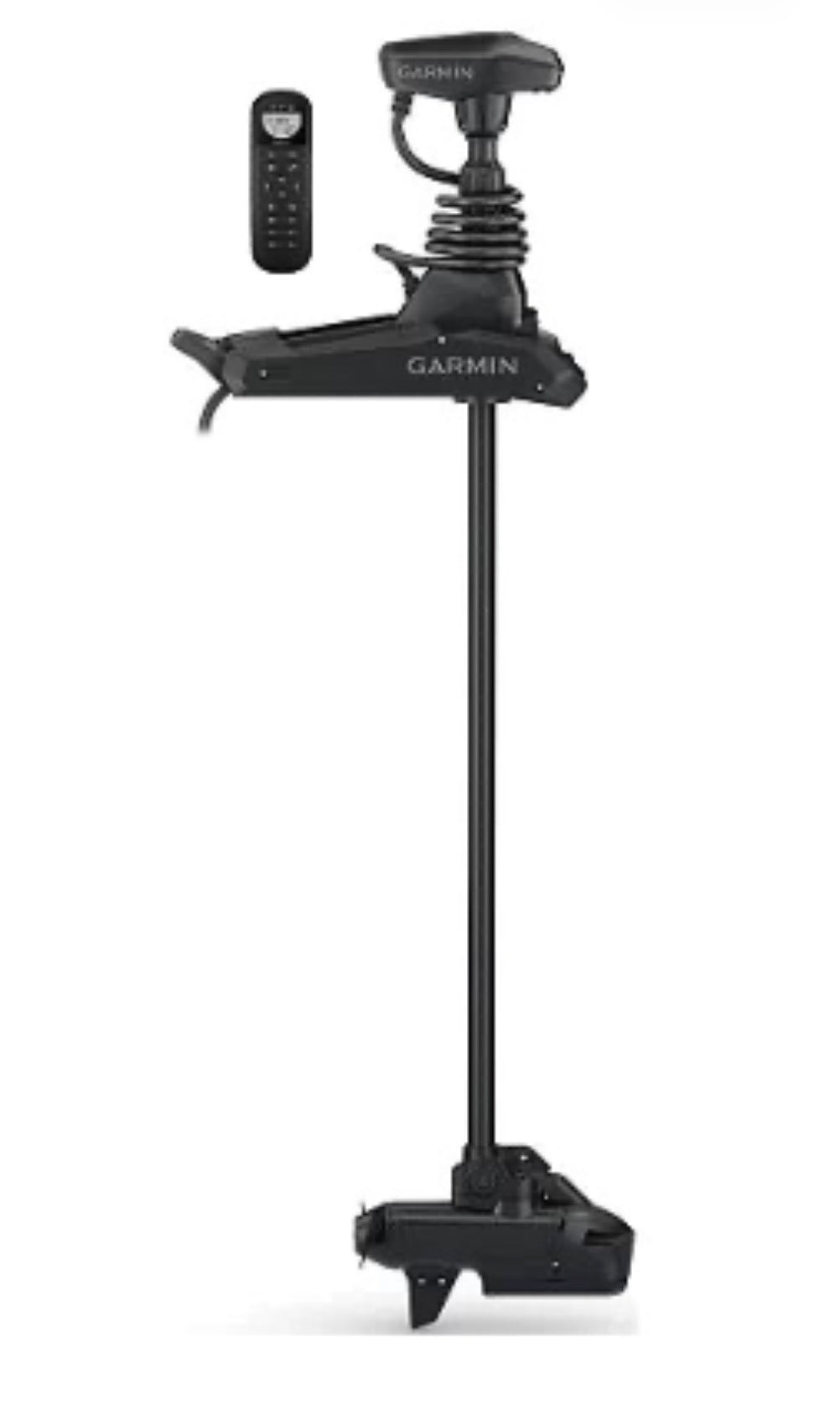

Garmin Force Kraken Trolling Motor — 100 lb Thrust | 90" Shaft | Black | Brushless | GPS Anchoring

The Offshore Force Kraken — Built for Large Vessels and Demanding Conditions

The Garmin Force® Kraken 90" Black is designed for anglers running larger offshore center consoles, deep-V vessels, and other high-freeboard boats where maximum propeller depth is essential for maintaining boat control in heavy chop and offshore conditions.

The 90" is not for the average fishing boat. It exists because some boats — and some fishing environments — demand more shaft than a 75" can provide. If your bow-to-waterline measurement falls between 38 and 61 inches, or if you regularly fish in conditions where a shorter shaft would cavitate and lose control, the 90" is the right choice.

---

Who Should Choose the 90" Force Kraken?

Choose this model if you:

• Fish offshore most of the time — reefs, wrecks, ledges, and open-water structure
• Own a large center console with a high bow and a bow-to-waterline measurement of 38–61 inches
• Regularly encounter rough water, heavy chop, or large offshore swells
• Need consistent prop depth for Anchor Lock to hold position in larger waves
• Want maximum shaft length without moving to the specialized 110" model
• Already use Garmin GPSMAP or ECHOMAP electronics and want full system integration

---

Force Kraken Shaft Progression

Shaft	Best For
48"	Bass boats and lower-profile bay boats (bow-to-waterline 0–19")
63"	Most bay boats and center consoles (bow-to-waterline 15–34")
75"	Offshore-capable center consoles and rough-water coastal fishing (bow-to-waterline 26–46")
90"	Large offshore boats and high-freeboard vessels (bow-to-waterline 38–61")
110"	Commercial, guide, and very large offshore boats (bow-to-waterline 53–81")

---

Why Choose the 90" Shaft?

The 90" shaft is ideal for boats with a bow-to-waterline measurement of 38–61 inches. If you regularly fish in large waves or heavy offshore swells, add 8" to your measured bow height before selecting a shaft.

Representative boat models commonly paired with the 90" shaft:

• Larger offshore center consoles (24–30 ft)
• High-freeboard bay boats and flats boats
• Offshore-capable deep-V hulls
• Great Lakes walleye and multi-species rigs with high freeboards
• Large aluminum fishing boats

These are examples of the kinds of boats that commonly pair well with a 90" shaft — not an exhaustive list. Bow-to-waterline measurement is always the definitive selection method.

---

Build Your Complete Garmin Fishing System

The Force Kraken isn't just a trolling motor — it's the foundation of a fully connected Garmin fishing system. Every component communicates with the others, giving you a level of integration no other trolling motor brand can match.

Component	Role in the System
Force Kraken	Brushless trolling motor with integrated GPS and wireless control
Garmin GPSMAP or ECHOMAP chartplotter	Command center — control Anchor Lock, follow routes, view motor status
Garmin Panoptix LiveScope	Real-time forward-facing sonar — see fish and structure before you cast
ActiveCaptain app	Smartphone control — waypoints, charts, and motor management from your phone
Garmin smartwatch	Wrist control — activate Anchor Lock and key functions hands-free

Already fishing with Garmin electronics? The Force Kraken connects directly to your existing GPSMAP or ECHOMAP chartplotter via a single cable, enabling waypoint sharing, route navigation, and wireless control from a unified system. No additional hardware required.

---

Why Choose Garmin Force Kraken?

• Garmin ecosystem integration — connects directly with Garmin GPSMAP, ECHOMAP Ultra, and ECHOMAP UHD2 chartplotters
• Brushless motor platform — ultra-quiet operation, exceptional efficiency, and reduced electrical noise for cleaner sonar returns
• Anchor Lock GPS — holds your position with precision in current, wind, and tide
• Reverse thrust — full-power reverse for precise boat positioning and backing out of tight spots
• Multi-band GPS — faster acquisition, greater accuracy, and more reliable positioning
• Floating wireless remote — full motor control from anywhere on the boat
• Garmin smartwatch control — activate Anchor Lock and control key functions from your wrist
• ActiveCaptain compatibility — manage waypoints, routes, and motor settings from your smartphone
• Saltwater-ready construction — built for freshwater and saltwater use
• Transducer-ready — compatible with Garmin GT-series transducers for full sonar integration

---

Brushless Motor Performance

The Force Kraken's brushless motor platform runs dramatically quieter than traditional brushed motors — fish don't spook as easily, and sonar interference is significantly reduced. Garmin specifically engineered the Force Kraken's brushless platform to minimize electrical noise, which means cleaner, more accurate sonar returns when paired with a compatible Garmin display.

• Ultra-quiet operation — less noise means less fish disturbance
• Reduced electrical interference — cleaner sonar returns on compatible Garmin displays
• Exceptional efficiency — more thrust per amp-hour, longer runtime per charge
• Smooth variable-speed control — precise speed adjustment across the full throttle range
• High reliability — fewer moving parts, less maintenance, longer service life
• Selectable 24V/36V — match your battery configuration to your boat and fishing style

---

Garmin Chartplotter Integration

Compatible Garmin displays include:

• Garmin GPSMAP series — flagship chartplotters with full Force Kraken integration
• Garmin ECHOMAP Ultra — premium combo units with integrated sonar and mapping
• Garmin ECHOMAP UHD2 — mid-range combo units with Force Kraken compatibility

What integration enables:

• Control Anchor Lock directly from your chartplotter touchscreen
• Follow routes and tracks with the motor navigating automatically
• Share waypoints between the motor and chartplotter seamlessly
• View motor status, speed, and heading on your chartplotter display
• Activate and adjust Anchor Lock without touching the foot pedal or remote

---

Anchor Lock GPS Positioning

• Holds position in current, wind, and tide
• Multi-band GPS for faster acquisition and greater accuracy
• Activate from the foot pedal, wireless remote, chartplotter, or smartwatch
• Adjustable position jog for precise repositioning without disengaging
• Works in both freshwater and saltwater environments

---

Reverse Thrust — Why It Matters

The Force Kraken delivers full-power reverse thrust — a capability that competing trolling motors either don't offer or significantly limit. Once anglers start using it, it changes how they approach every fishing situation that involves tight quarters or current.

• Backing away from docks — exit tight slips and dock pockets cleanly without spinning the motor or using a push pole
• Maneuvering around bridge pilings — hold position or back away from structure without losing boat control in current
• Adjusting position in current — counteract current push and hold your exact position without disengaging Anchor Lock
• Correcting boat position in wind — make precise fore-and-aft corrections when wind pushes the bow off target
• Offshore structure — back away from wrecks, reefs, and ledges without losing position or spooking fish
• Inshore saltwater — back away from mangroves, oyster bars, and shallow structure without grounding or spinning

---

Pivot-Style Mount — A Genuine Competitive Advantage

The Force Kraken uses a pivot-style mount — one of the defining engineering features of the Kraken platform. Unlike traditional bow-mount designs that require a fixed footprint, the pivot-style mount delivers three meaningful advantages for larger offshore boats:

• Saves bow space — the pivot design reduces the footprint of the motor when stowed, preserving usable deck space on center consoles and offshore boats where bow real estate is limited
• Simplifies installation — accommodates longer shafts on boats with limited mounting area, making the 90" installation cleaner and more manageable than traditional designs
• Accommodates long shafts — the pivot geometry allows the 90" shaft to deploy and stow cleanly on vessels where a conventional mount would create clearance problems

For large center consoles and offshore boats where deck space is at a premium, this mount design is a genuine competitive advantage — not just a styling choice.

---

LiveScope Cable Management

With the required Garmin accessories, the LiveScope transducer cable can be routed through the Force Kraken shaft — eliminating exposed cable runs across the deck and delivering a clean, professional installation. For anglers planning a LiveScope installation alongside the Force Kraken, this reinforces the Garmin ecosystem advantage: every component is designed to work together, including how the cables are managed.

---

Sonar Integration — Transducer Options

The 90" Black model is transducer-ready — it does not include a built-in transducer, giving you the flexibility to choose the Garmin sonar package that best fits your fishing style and target species.

Compatible Garmin transducers include:

• GT56UHD-TR — Traditional CHIRP + ClearVü + SideVü (GT56 UHD sonar package)
• GT54UHD-TM — Traditional CHIRP + ClearVü (no SideVü)
• GT34UHD-TM — Traditional CHIRP only

Pairing the Force Kraken with a compatible Garmin chartplotter and transducer gives you a fully integrated sonar and navigation system — all from a single brand, on a single network.

---

ActiveCaptain & Smartwatch Control

Through ActiveCaptain, you can manage waypoints, update charts, and monitor motor status from your smartphone. Through compatible Garmin smartwatches, you can activate Anchor Lock and control key motor functions directly from your wrist — without reaching for the remote or touching the foot pedal.

---

Who Is the 90" Black Force Kraken Built For?

Saltwater applications:

• Offshore reef, wreck, and ledge fishing
• Large center console offshore fishing
• Coastal structure and nearshore offshore
• Inshore saltwater on high-freeboard vessels

Freshwater applications:

• Great Lakes open water fishing
• Large inland lakes with significant wave action
• Walleye and multi-species fishing on high-freeboard boats
• Deep-V hulls in rough freshwater conditions

---

Specifications

Specification	Details
Voltage	24V / 36V Selectable
Shaft Length	90"
Color	Black
Water Type	Freshwater & Saltwater
Motor Platform	Brushless
Transducer	Not included — transducer-ready
GPS	Multi-band GPS
Anchor Lock	Yes
Reverse Thrust	Yes
Remote	Floating Wireless Remote Included
Chartplotter Integration	Garmin GPSMAP, ECHOMAP Ultra, ECHOMAP UHD2
Smartwatch Control	Yes — compatible Garmin watches
ActiveCaptain	Yes
LiveScope Cable Routing	Compatible (accessories required)
Mount	Pivot-Style Bow Mount
Bow-to-Waterline Range	38–61"
Part Number	010-02573-20

---

Frequently Asked Questions

Is the Force Kraken saltwater safe?

Yes. The Force Kraken is built for freshwater, brackish, and saltwater use.

Does the 90" Black include a transducer?

No. The 90" Black is transducer-ready but does not include a built-in transducer. You can add a compatible Garmin GT-series transducer to enable full sonar integration with your chartplotter.

What Garmin chartplotters are compatible?

The Force Kraken integrates with Garmin GPSMAP series, ECHOMAP Ultra, and ECHOMAP UHD2 chartplotters.

Can I control it from my Garmin watch?

Yes. Compatible Garmin smartwatches can activate Anchor Lock and control key motor functions directly from your wrist.

Is the 90" shaft right for my boat?

The 90" shaft is ideal for boats with a bow-to-waterline measurement of 38–61 inches. If you regularly fish in large waves or heavy offshore swells, add 8" to your measurement before selecting a shaft.

Why choose the 90" instead of the 75"?

If your bow-to-waterline measurement exceeds 46 inches, or if you regularly fish in conditions where a 75" shaft would cavitate or lose prop depth in heavy chop, the 90" is the right choice. The 75" handles most coastal and rough-water situations; the 90" is for boats and conditions that demand more.

Can I route my LiveScope cable through the motor shaft?

Yes. With the required Garmin accessories, the LiveScope transducer cable can be routed through the Force Kraken shaft for a clean, professional installation.

What batteries do I need?

For 24V operation, use two 12V deep cycle batteries. For 36V operation, use three 12V batteries. Lithium battery kits provide maximum runtime and minimum weight.

---

Complete Your Garmin System

• Garmin GPSMAP and ECHOMAP chartplotters — full Force Kraken integration
• Garmin GT56UHD-TR transducer — Traditional CHIRP, ClearVü, and SideVü sonar
• Garmin Panoptix LiveScope — forward-facing sonar for real-time fish imaging
• Lithium battery kits — maximum runtime, minimum weight
• Onboard chargers — precision charging for lithium and AGM systems
• Quick-release mounting brackets — fast deployment and retrieval

---
