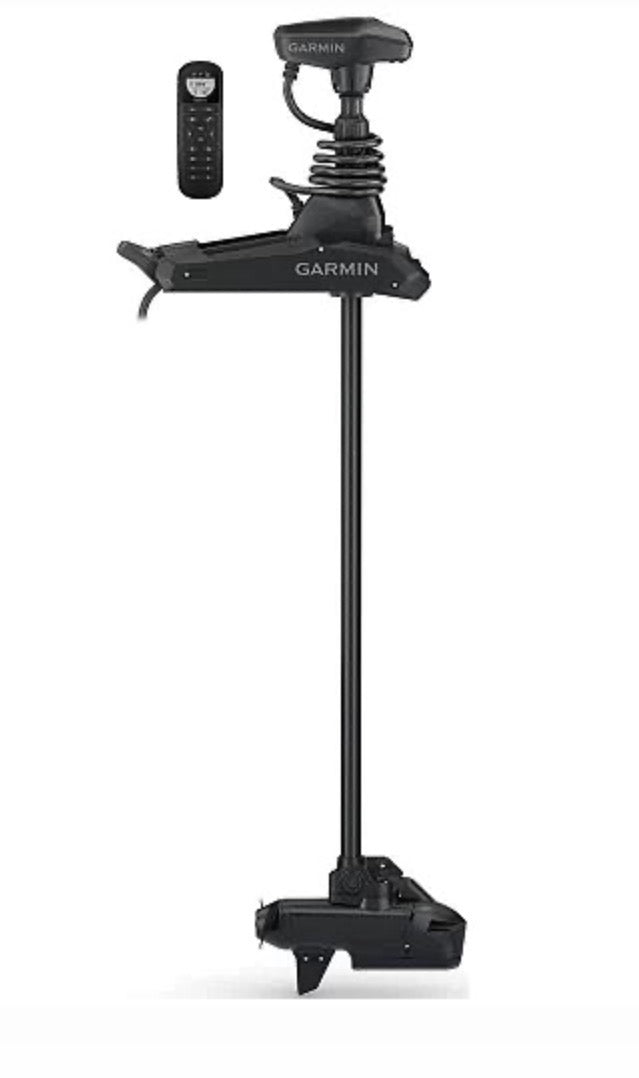

Garmin Force Kraken Trolling Motor — 100 lb Thrust | 63" Shaft | Black | Brushless | GPS Anchoring

The Trolling Motor Built for the Complete Garmin Marine System

The Garmin Force® Kraken 63" Black combines an ultra-quiet brushless motor, precise multi-band GPS positioning, and seamless Garmin chartplotter integration into one premium trolling motor designed for both freshwater and saltwater anglers. Whether you're fishing bass tournaments, coastal flats, bay boats, or inshore structure, the Force Kraken delivers exceptional control, powerful thrust, and advanced navigation features that work together as a complete Garmin marine system.

This is the 63" Black model with selectable 24V/36V operation. The 63" shaft is designed for mid-size boats with moderate bow heights — providing the right prop depth for clean, cavitation-free performance in both freshwater and inshore saltwater conditions.

---

Why Choose the 63" Shaft?

The 63" Force Kraken is the most versatile choice for larger bay boats, center consoles, and multi-species boats. It provides additional prop depth for improved boat control and GPS anchoring performance in rough water while remaining practical for trailering and everyday use.

The 63" shaft is ideal for boats with a bow-to-waterline measurement of 15–34 inches. If you regularly fish in large waves or rough coastal conditions, add 8" to your measured bow height before selecting a shaft.

Representative boat models commonly paired with the 63" shaft:

• Pathfinder bay boats
• Sportsman open boats
• Sea Hunt center consoles
• Tidewater bay and center console boats
• Skeeter WX series
• Ranger Deep-V freshwater boats
• Lund Pro-V walleye and multi-species rigs

These are examples of the kinds of boats that commonly pair well with a 63" shaft — not an exhaustive list. Bow-to-waterline measurement is always the definitive selection method.

---

Build Your Complete Garmin Fishing System

The Force Kraken isn't just a trolling motor — it's the foundation of a fully connected Garmin fishing system. Every component communicates with the others, giving you a level of integration no other trolling motor brand can match.

Component	Role in the System
Force Kraken	Brushless trolling motor with integrated GPS and wireless control
Garmin GPSMAP or ECHOMAP chartplotter	Command center — control Anchor Lock, follow routes, view motor status
Garmin Panoptix LiveScope	Real-time forward-facing sonar — see fish and structure before you cast
ActiveCaptain app	Smartphone control — waypoints, charts, and motor management from your phone
Garmin smartwatch	Wrist control — activate Anchor Lock and key functions hands-free

Already fishing with Garmin electronics? The Force Kraken connects directly to your existing GPSMAP or ECHOMAP chartplotter via a single cable, enabling waypoint sharing, route navigation, and wireless control from a unified system. No additional hardware required.

---

Why Choose Garmin Force Kraken?

Most trolling motors are standalone products. The Garmin Force Kraken is something different: a fully integrated component of the Garmin marine ecosystem. When your trolling motor, chartplotter, sonar, smartphone, and smartwatch all communicate with each other, you fish smarter — and that's the Force Kraken's defining advantage.

• Garmin ecosystem integration — connects directly with Garmin GPSMAP, ECHOMAP Ultra, and ECHOMAP UHD2 chartplotters
• Brushless motor platform — ultra-quiet operation, exceptional efficiency, and reduced electrical noise for cleaner sonar returns
• Anchor Lock GPS — holds your position with precision in current, wind, and tide
• Reverse thrust — full-power reverse for precise boat positioning and backing out of tight spots
• Multi-band GPS — faster acquisition, greater accuracy, and more reliable positioning
• Floating wireless remote — full motor control from anywhere on the boat
• Garmin smartwatch control — activate Anchor Lock and control key functions from your wrist
• ActiveCaptain compatibility — manage waypoints, routes, and motor settings from your smartphone
• Saltwater-ready construction — built for freshwater and saltwater use
• Transducer-ready — compatible with Garmin GT-series transducers for full sonar integration

---

Brushless Motor Performance

The Force Kraken's brushless motor platform is one of its most significant advantages — and one that's easy to underestimate until you're on the water.

Brushless motors run dramatically quieter than traditional brushed motors. That matters for two reasons: fish don't spook as easily, and sonar interference is significantly reduced. Garmin specifically engineered the Force Kraken's brushless platform to minimize electrical noise, which means cleaner, more accurate sonar returns when paired with a compatible Garmin display.

• Ultra-quiet operation — less noise means less fish disturbance
• Reduced electrical interference — cleaner sonar returns on compatible Garmin displays
• Exceptional efficiency — more thrust per amp-hour, longer runtime per charge
• Smooth variable-speed control — precise speed adjustment across the full throttle range
• High reliability — fewer moving parts, less maintenance, longer service life
• Selectable 24V/36V — match your battery configuration to your boat and fishing style

---

Garmin Chartplotter Integration

When connected to a compatible Garmin chartplotter, the Force Kraken becomes a fully integrated navigation system — not just a motor you steer with your foot.

Compatible Garmin displays include:

• Garmin GPSMAP series — flagship chartplotters with full Force Kraken integration
• Garmin ECHOMAP Ultra — premium combo units with integrated sonar and mapping
• Garmin ECHOMAP UHD2 — mid-range combo units with Force Kraken compatibility

What integration enables:

• Control Anchor Lock directly from your chartplotter touchscreen
• Follow routes and tracks with the motor navigating automatically
• Share waypoints between the motor and chartplotter seamlessly
• View motor status, speed, and heading on your chartplotter display
• Activate and adjust Anchor Lock without touching the foot pedal or remote

---

Anchor Lock GPS Positioning

Garmin's Anchor Lock uses multi-band GPS to hold your boat's position with exceptional accuracy — even in current, wind, and tidal movement.

• Holds position in current, wind, and tide
• Multi-band GPS for faster acquisition and greater accuracy
• Activate from the foot pedal, wireless remote, chartplotter, or smartwatch
• Adjustable position jog for precise repositioning without disengaging
• Works in both freshwater and saltwater environments

---

Reverse Thrust — Why It Matters

The Force Kraken delivers full-power reverse thrust — a capability that competing trolling motors either don't offer or significantly limit. Most trolling motors can only move the boat forward. Force Kraken can push it backward with the same precision and power. Once anglers start using it, it changes how they approach every fishing situation that involves tight quarters or current.

Real-world situations where reverse thrust changes how you fish:

• Backing away from docks — exit tight slips and dock pockets cleanly without spinning the motor or using a push pole
• Maneuvering around bridge pilings — hold position or back away from structure without losing boat control in current
• Adjusting position in current — use reverse to counteract current push and hold your exact position without disengaging Anchor Lock
• Correcting boat position in wind — make precise fore-and-aft corrections when wind pushes the bow off target
• Inshore saltwater — back away from mangroves, oyster bars, and shallow structure without grounding or spinning
• Backing away from structure — retreat from brush piles and laydowns without disturbing the area or spooking fish

For anglers who fish around docks, bridge pilings, and inshore structure, reverse thrust isn't a convenience feature — it's a precision tool that fundamentally changes how you approach cover.

---

Sonar Integration — Transducer Options

The 63" Black model is transducer-ready — it does not include a built-in transducer, giving you the flexibility to choose the Garmin sonar package that best fits your fishing style and target species.

Compatible Garmin transducers include:

• GT56UHD-TR — Traditional CHIRP + ClearVü + SideVü (GT56 UHD sonar package)
• GT54UHD-TM — Traditional CHIRP + ClearVü (no SideVü)
• GT34UHD-TM — Traditional CHIRP only

Pairing the Force Kraken with a compatible Garmin chartplotter and transducer gives you a fully integrated sonar and navigation system — all from a single brand, on a single network.

---

ActiveCaptain & Smartwatch Control

The Force Kraken extends Garmin's ecosystem beyond the boat. Through ActiveCaptain, you can manage waypoints, update charts, and monitor motor status from your smartphone. Through compatible Garmin smartwatches, you can activate Anchor Lock and control key motor functions directly from your wrist.

---

Who Is Force Kraken Built For?

Freshwater applications:

• Tournament bass fishing
• Reservoir structure fishing
• Walleye and multi-species fishing
• Great Lakes and large inland lakes

Saltwater applications:

• Inshore saltwater — redfish, snook, speckled trout
• Bay boat fishing
• Coastal flats and grass beds
• Nearshore structure fishing

---

Specifications

Specification	Details
Voltage	24V / 36V Selectable
Shaft Length	63"
Color	Black
Water Type	Freshwater & Saltwater
Motor Platform	Brushless
Transducer	Not included — transducer-ready
GPS	Multi-band GPS
Anchor Lock	Yes
Reverse Thrust	Yes
Remote	Floating Wireless Remote Included
Chartplotter Integration	Garmin GPSMAP, ECHOMAP Ultra, ECHOMAP UHD2
Smartwatch Control	Yes — compatible Garmin watches
ActiveCaptain	Yes
Bow-to-Waterline Range	15–34"
Mount	Bow Mount
Part Number	010-02573-00

---

Frequently Asked Questions

Is the Force Kraken saltwater safe?

Yes. The Force Kraken is built for both freshwater and saltwater use.

Does the 63" Black include a transducer?

No. The 63" Black is transducer-ready but does not include a built-in transducer. You can add a compatible Garmin GT-series transducer to enable full sonar integration with your chartplotter.

What Garmin chartplotters are compatible?

The Force Kraken integrates with Garmin GPSMAP series, ECHOMAP Ultra, and ECHOMAP UHD2 chartplotters.

Can I control it from my Garmin watch?

Yes. Compatible Garmin smartwatches can activate Anchor Lock and control key motor functions directly from your wrist.

Is the 63" shaft right for my boat?

The 63" shaft is ideal for boats with a bow-to-waterline measurement of 15–34 inches. If you regularly fish in large waves, add 8" to your measurement before selecting a shaft.

What batteries do I need?

For 24V operation, use two 12V deep cycle batteries. For 36V operation, use three 12V batteries. Lithium battery kits provide maximum runtime and minimum weight.

---

Complete Your Garmin System

• Garmin GPSMAP and ECHOMAP chartplotters — full Force Kraken integration
• Garmin GT56UHD-TR transducer — Traditional CHIRP, ClearVü, and SideVü sonar
• Garmin Panoptix LiveScope — forward-facing sonar for real-time fish imaging
• Lithium battery kits — maximum runtime, minimum weight
• Onboard chargers — precision charging for lithium and AGM systems
• Quick-release mounting brackets — fast deployment and retrieval

---

Authorized Garmin Dealer. Full manufacturer warranty. Free nationwide shipping. Expert support before and after your purchase.
