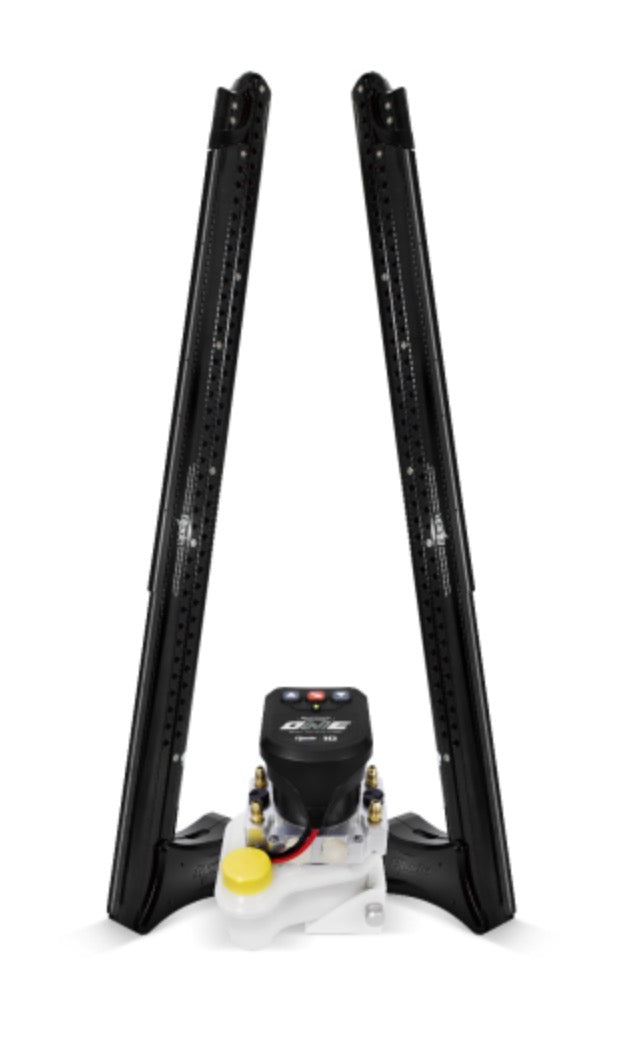

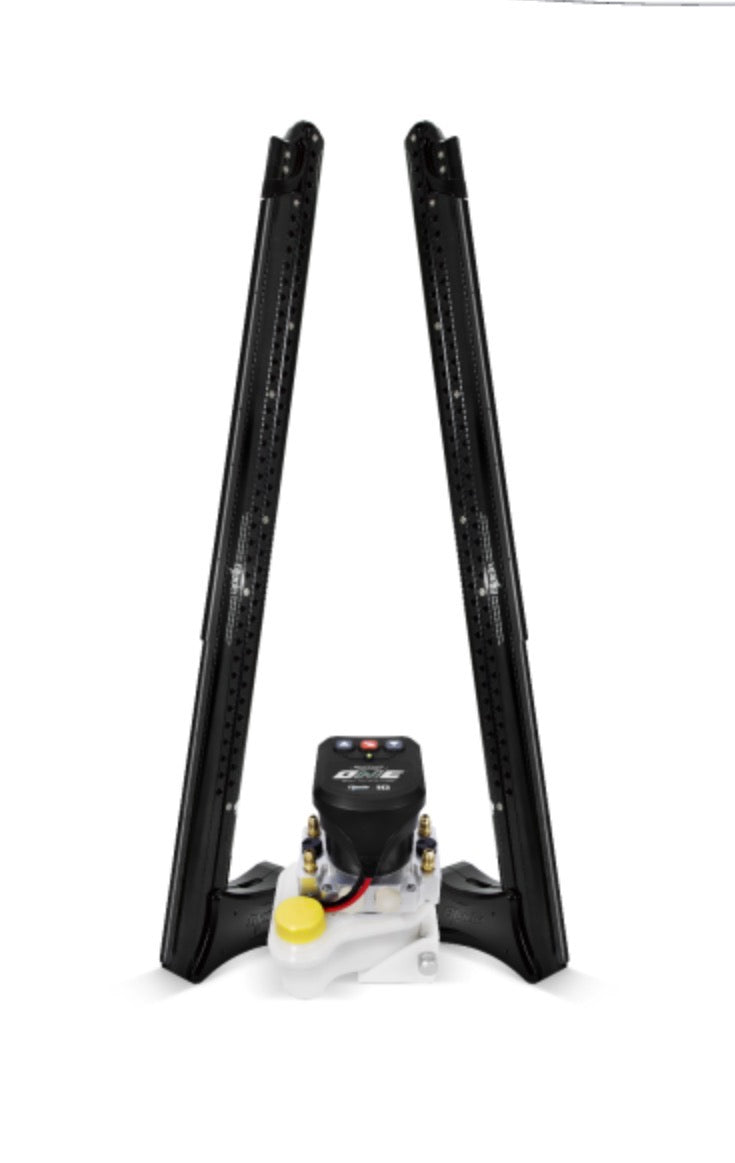

Power-Pole Blade Edition Dual 10' Shallow Water Anchors with ONE Pump
Power-Pole Blade Edition Dual 10' Shallow Water Anchors with ONE Pump
Power-Pole Blade Edition Dual 10' Shallow Water Anchors with ONE Pump
The Power-Pole Blade Edition Dual 10' with ONE Pump is the top-of-the-line shallow water anchor package for serious tournament anglers and professional guides who demand maximum holding power, whisper-quiet operation, and the fastest stop time in the industry.
Two 10-foot Blade anchors. One compact hydraulic pump. Three finish options. Zero compromise.
š¦ What's Included

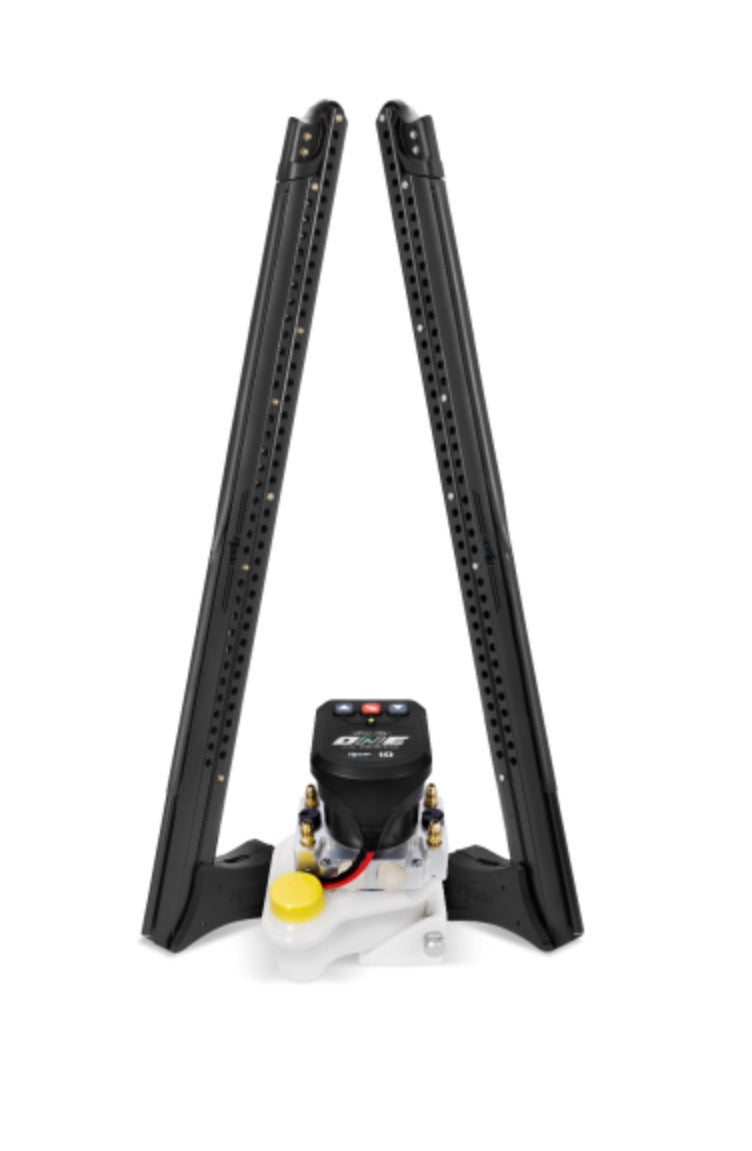

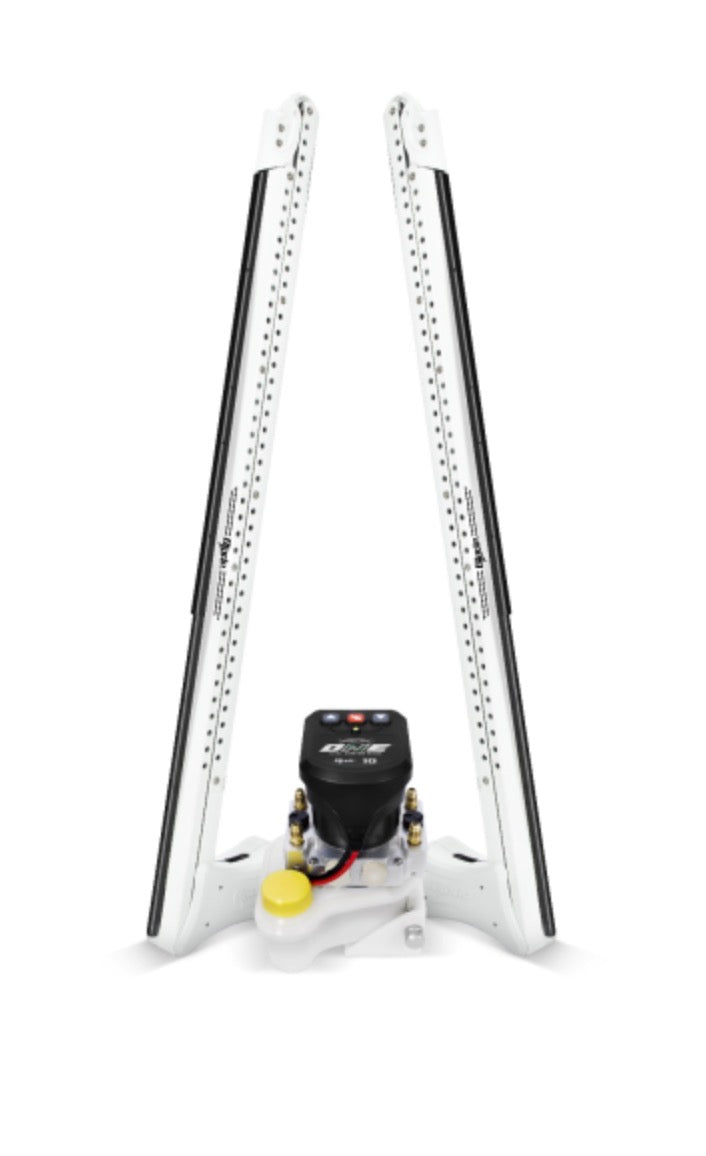

- Two 10-foot Power-Pole Blade anchors
- One ONE Pump dual-anchor hydraulic unit
- Two ONE Pump wireless remotes
- One mountable remote cradle
- Heavy-duty pre-crimped hydraulic hoses
- Required system components and installation documentation
Note: Mounting brackets and adapter plates are application-specific and may need to be purchased separately. Contact us with your boat details before ordering.
ā” Why Choose the Blade Edition Dual
Two anchors mean your boat stops dead ā no swing, no drift. The Blade Edition Dual is built for anglers who need maximum holding power and the fastest deployment available.
- Fastest stop time in the industry
- Dual 10' anchors for maximum stability
- Aircraft-grade aluminum ported-arm construction with Power-Pole's durable Everflex anchoring spike
- Soft Close system for quiet, controlled retrieval
- Drive-off protection and drop-stop safety valves built in
- Five-layer marine-grade powder coat finish
- Available in Black, White, or Matte Black / Black Out Edition
š§ ONE Pump System ā One Pump. Two Anchors. Smarter.
The ONE Pump hydraulic system drives both Blade anchors from a single compact unit. Compared with a traditional two-pump Blade installation, the ONE Pump system is approximately 40% lighter, uses about 42% less energy, occupies approximately half the installation space, and operates substantially more quietly.
- Synchronized dual-anchor deployment and retraction
- One compact pump operates both anchors
- Lower current draw than a two-pump setup (8.8A deploy / 12.6A retract vs. 16.4A / 29.5A)
- Quieter operation (57.4 dB vs. 72.25 dB average running sound)
- 8.14 lb with fluid vs. 13.7 lb for a two-pump setup
- Reduced installation space and complexity
š Power-Pole ONE Pump Explained ā Complete Guide
š” C-Monster Control System & Power-Pole App
The Blade Edition Dual and ONE Pump operate through Power-Pole's C-Monster Control System. Using the Power-Pole app on a compatible Android or iOS device, you can customize system settings and tailor anchor operation to your fishing style.
- Customize anchor settings through the Power-Pole app
- Control compatible Power-Pole products through the C-Monster ecosystem
- Fast wireless communication and update capability
- Integration with compatible Power-Pole and supported marine electronics systems
š C-Monster App Complete Guide
š Full Specifications
| Specification | Detail |
|---|---|
| Package type | Dual shallow-water anchor system |
| Anchor length | 10 feet |
| Number of anchors | Two |
| Hydraulic pump | ONE Pump dual-anchor system |
| Power supply | 12V DC |
| Recommended max boat size | Up to 28 feet or 4,500 lb |
| Deployment rating | Up to 10 feet of water |
| Retracted height | 68 inches |
| Mounting footprint per anchor | 5 in. W Ć 6.5 in. H |
| Weight on transom | Approximately 57.38 lb |
| Total system weight | Approximately 70.82 lb |
| Operating system | C-Monster Control System |
| Finish | Five-layer marine-grade powder coat |
| Soft Close Cylinder | Yes |
| Drive-off protection | Yes |
| Water compatibility | Freshwater and saltwater |
| Available finishes | White (PP-2-BLS-10-WT), Black (PP-2-BLS-10-BK), Matte Black / Black Out (PP-2-BLS-10-MB) |
| Warranty | 5-year mechanical; 2-year electrical and hydraulics; lifetime Everflex spike |
š© Installation & Mounting Guidance

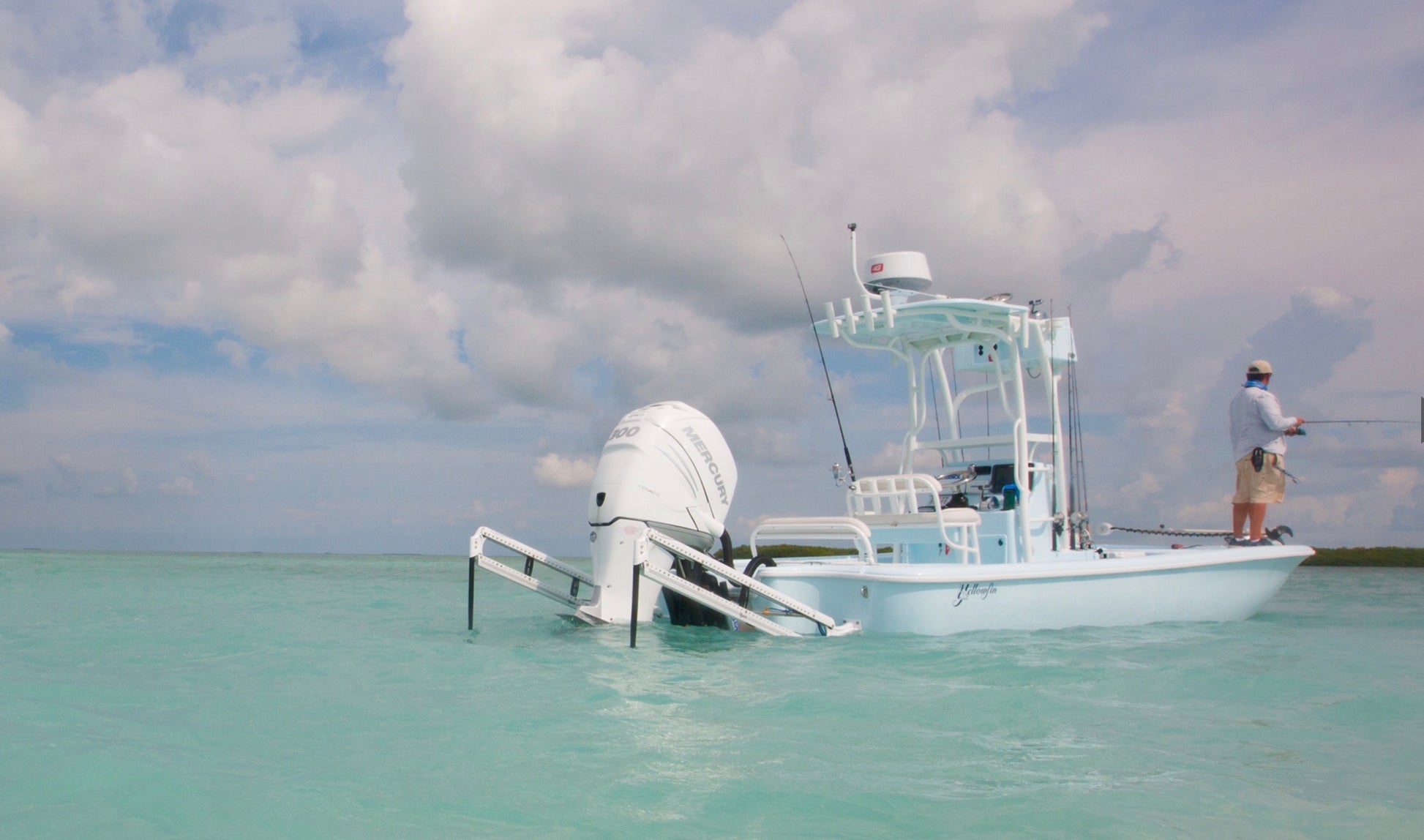

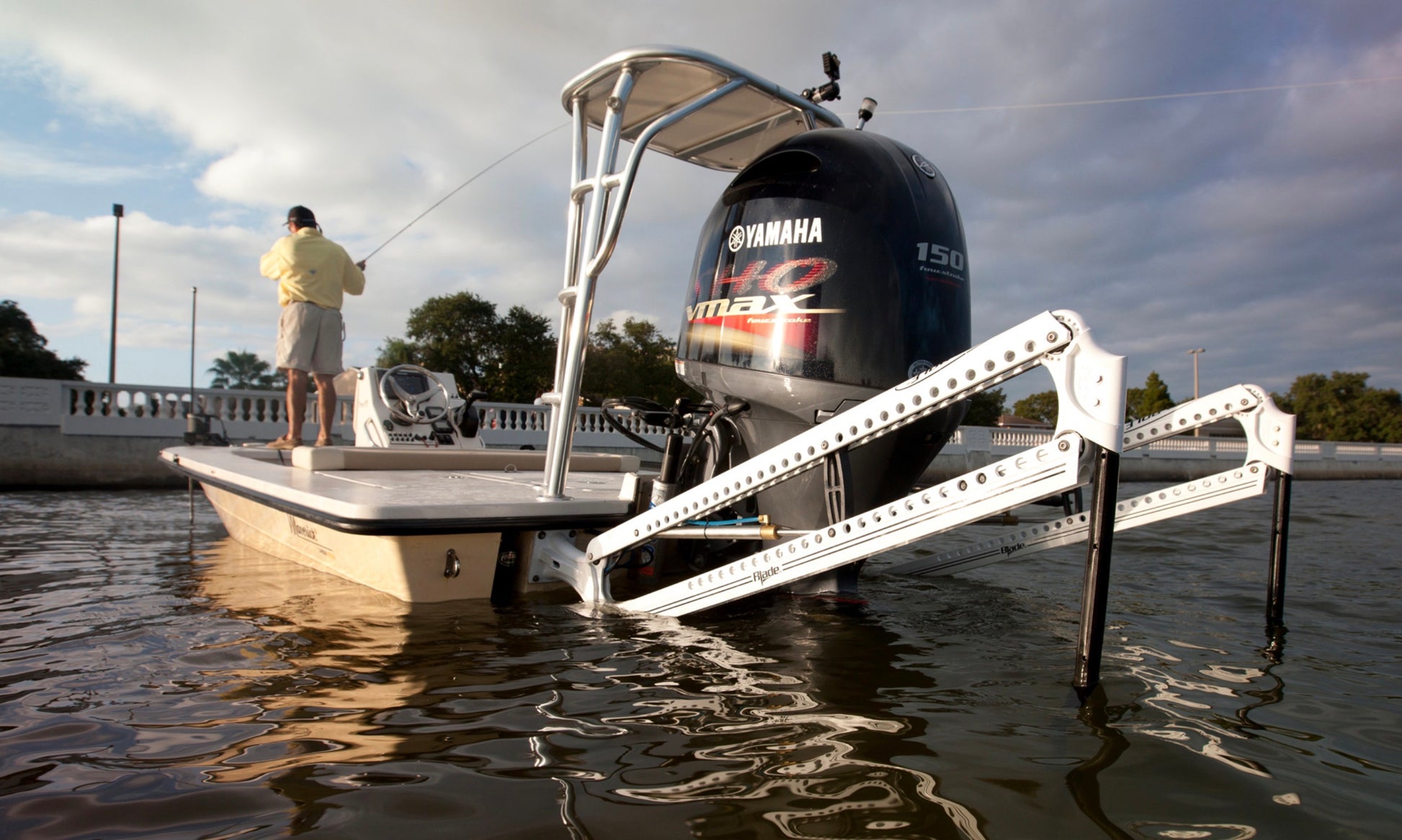

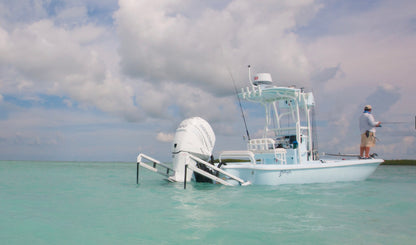

The Blade Edition Dual mounts to the transom in a port-and-starboard configuration. Before ordering, confirm the following for your specific boat:
- Transom vs. jack-plate mounting ā direct transom mounting is standard; jack-plate adapter plates are available but sold separately
- Outboard clearance ā verify adequate clearance when turning the outboard at full lock
- Swim platform and trim tab interference ā measure available transom space before purchase
- Hydraulic hose routing ā plan routing from each anchor to the ONE Pump location before installation
- ONE Pump mounting location ā the pump should be mounted in a dry, accessible location near the transom
- 12V electrical connection ā a dedicated 12V circuit is required; consult the included documentation for wire gauge and fusing requirements
- Professional installation recommended for first-time installers
š Need help confirming the correct adapter plates or mounting configuration? Contact TrollingMotors.shop with your boat make, model, engine, jack plate (if applicable), and transom photos before ordering. This prevents costly returns.
š Power-Pole Blade Installation Planning Guide | How to Choose a Power-Pole Mounting Bracket
šØ Black, White, or Matte Black / Black Out ā Which Should You Choose?
All three finishes are functionally identical. Choose based on your boat's aesthetic:
- Black ā matches dark hulls, black consoles, and carbon fiber trim
- White ā matches white hulls, white consoles, and bright inshore skiff finishes
- Matte Black / Black Out Edition ā Power-Pole's premium blacked-out finish with matte-black structural components and gloss-black logos; ideal for a stealth, low-glare look
šÆ Who This Is For
- Tournament bass anglers who need the fastest stop time available
- Professional fishing guides who demand dual-anchor stability
- Inshore and flats boat anglers on boats up to 28 feet
- Bay boat owners who want the top-of-the-line Power-Pole configuration
ā What This Is NOT
- Not designed for kayaks or small boats under 16' (see the Micro Anchor)
- Not a trolling motor ā pairs with your MOVE PV or MOVE ZR
- Not rated for anchoring deeper than approximately 10 feet
- Not a plug-and-play install on every boat ā mounting hardware may be application-specific
ā Frequently Asked Questions
What exactly is included in the dual-anchor package?
The package includes two 10-foot Blade anchors, one ONE Pump dual-anchor hydraulic unit, two wireless remotes, one mountable remote cradle, heavy-duty pre-crimped hydraulic hoses, and installation documentation. Mounting brackets and adapter plates are application-specific and may be sold separately.
Does this package use one pump or two?
One. The ONE Pump hydraulic unit drives both anchors from a single compact pump, reducing weight, current draw, noise, and installation complexity compared to a two-pump setup.
Can the two anchors be controlled independently?
The ONE Pump system deploys and retracts both anchors in a synchronized operation. For independent control of each anchor, a two-pump configuration would be required.
What size boat can use the 10-foot Blade Dual system?
Power-Pole rates the 10-foot Blade Dual system for boats up to 28 feet or 4,500 pounds. Confirm your boat's transom configuration and available mounting space before ordering.
Does the system work in saltwater?
Yes. The Blade Edition is compatible with both freshwater and saltwater environments. The five-layer marine-grade powder coat finish is designed for corrosion resistance.
Does it require separate mounting brackets?
Mounting hardware requirements depend on your specific boat and transom configuration. Direct transom mounting is standard. Jack-plate adapter plates and other application-specific hardware may need to be purchased separately. Contact us before ordering if you are unsure.
Is it compatible with a jack plate?
Yes, with the appropriate adapter plates. Jack-plate adapters are sold separately and are specific to your jack plate brand and model. Contact TrollingMotors.shop with your jack plate details before ordering.
What 12-volt battery capacity is recommended?
The ONE Pump draws 8.8 amps during deployment and 12.6 amps during retraction. A dedicated 12V circuit is required. Consult the included installation documentation for specific wire gauge and fusing recommendations based on your installation.
How much does the complete dual system weigh?
The total system weight is approximately 70.82 pounds, with approximately 57.38 pounds on the transom. Factor this into your boat's weight distribution and transom load capacity.
What is the difference between Black and Matte Black / Black Out Edition?
Both are functionally identical. The Black finish is a standard gloss black. The Matte Black / Black Out Edition features matte-black U-channels, knuckle, and stern bracket with gloss-black logos ā Power-Pole's premium blacked-out aesthetic.
Can I install the system myself?
Experienced boaters with mechanical and electrical skills can install the system using the included documentation. Professional installation is recommended for first-time installers or complex transom configurations involving jack plates or swim platforms.
What warranty is included?
The Blade Edition Dual ONE Pump package includes a 5-year mechanical warranty, a 2-year warranty on electrical components and hydraulics, and a lifetime warranty on the Everflex spike.
Can it communicate with a Power-Pole MOVE trolling motor?
The Blade Edition operates through the C-Monster Control System, which integrates with compatible Power-Pole products. For specific compatibility with your MOVE PV or MOVE ZR model, contact TrollingMotors.shop or refer to Power-Pole's current C-Monster compatibility documentation.
What happens if I accidentally drive off with the anchors deployed?
The system includes built-in drive-off protection and drop-stop safety valves. These features are designed to protect the system and your boat in the event of accidental deployment during operation.
