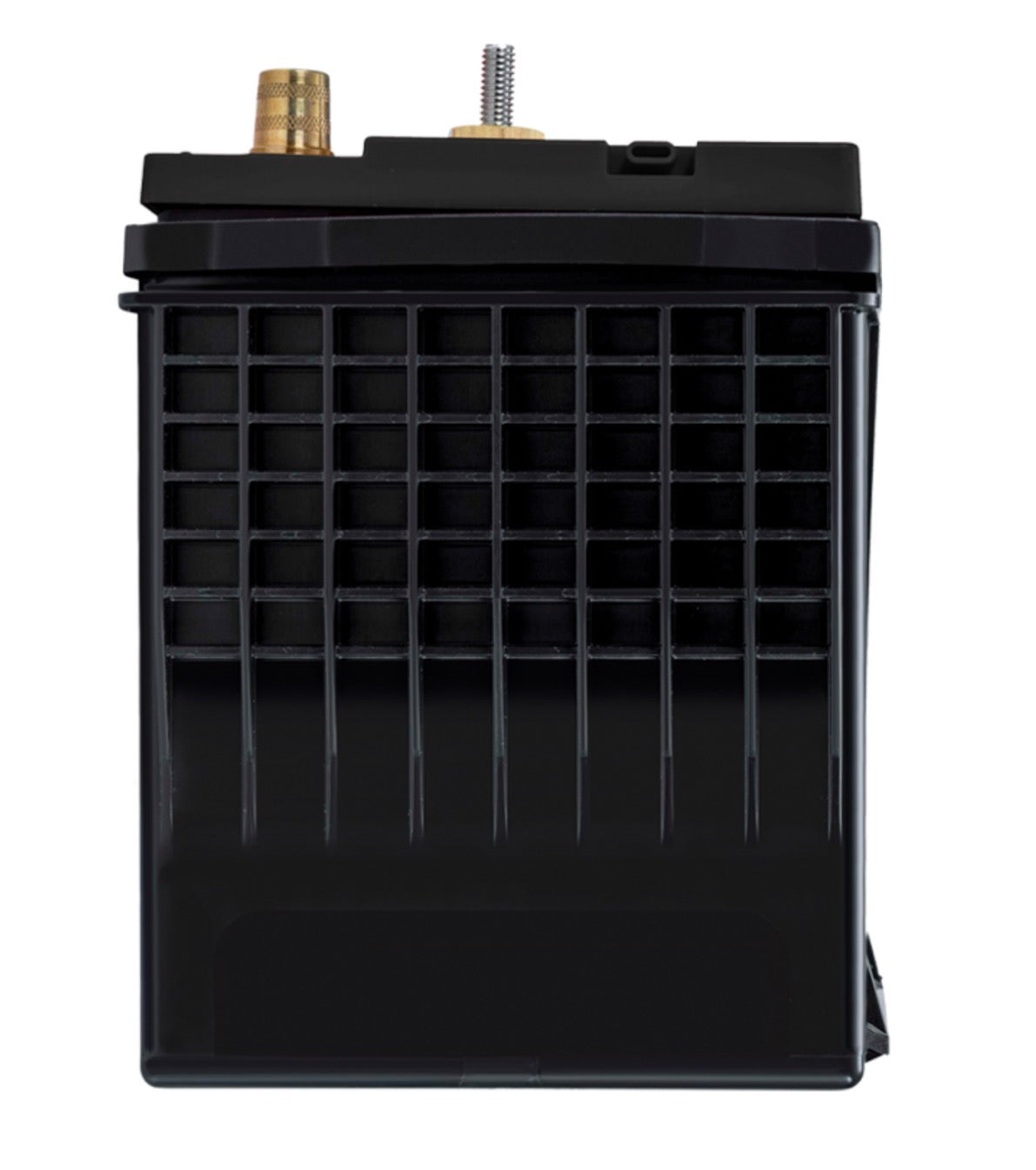

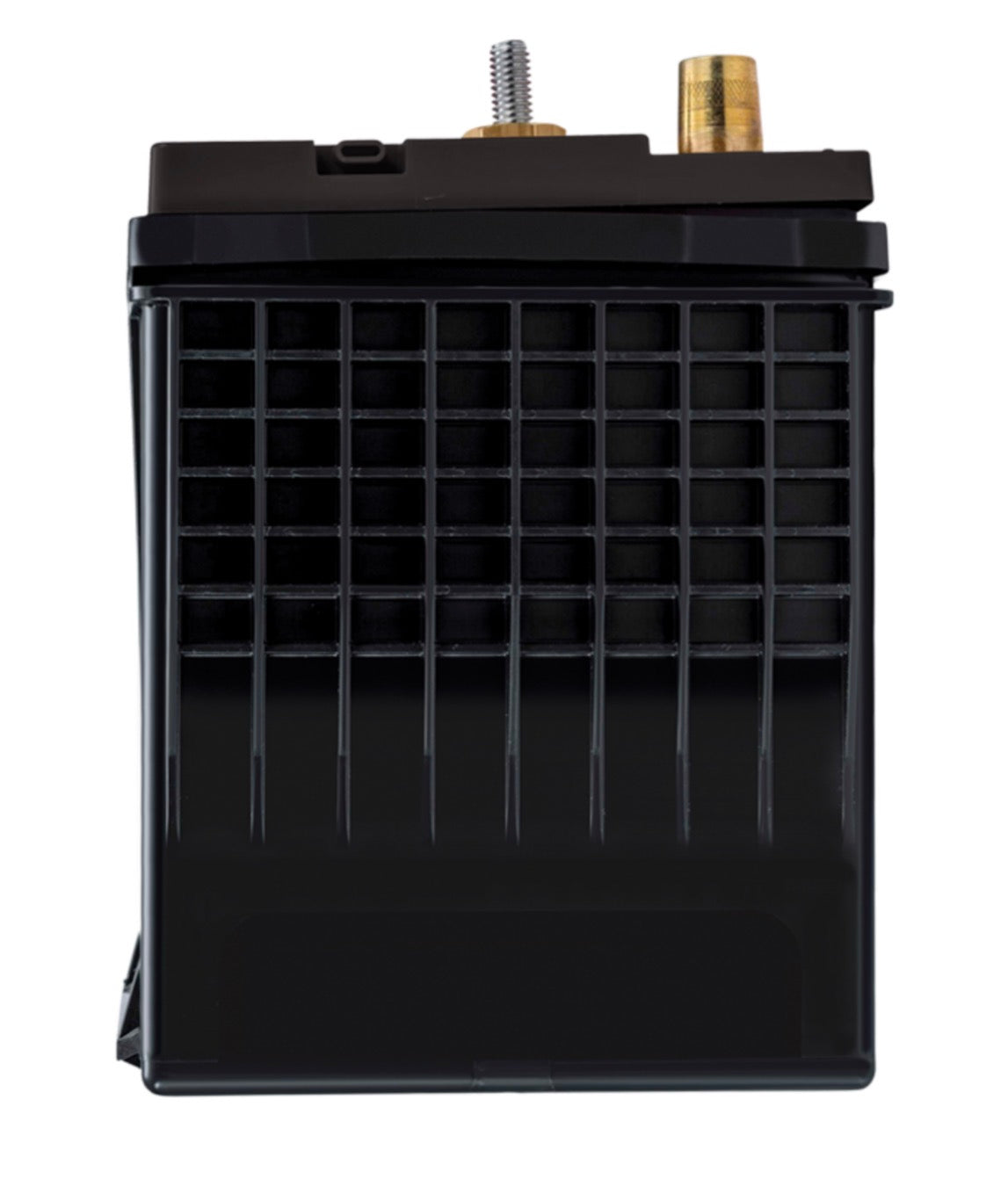

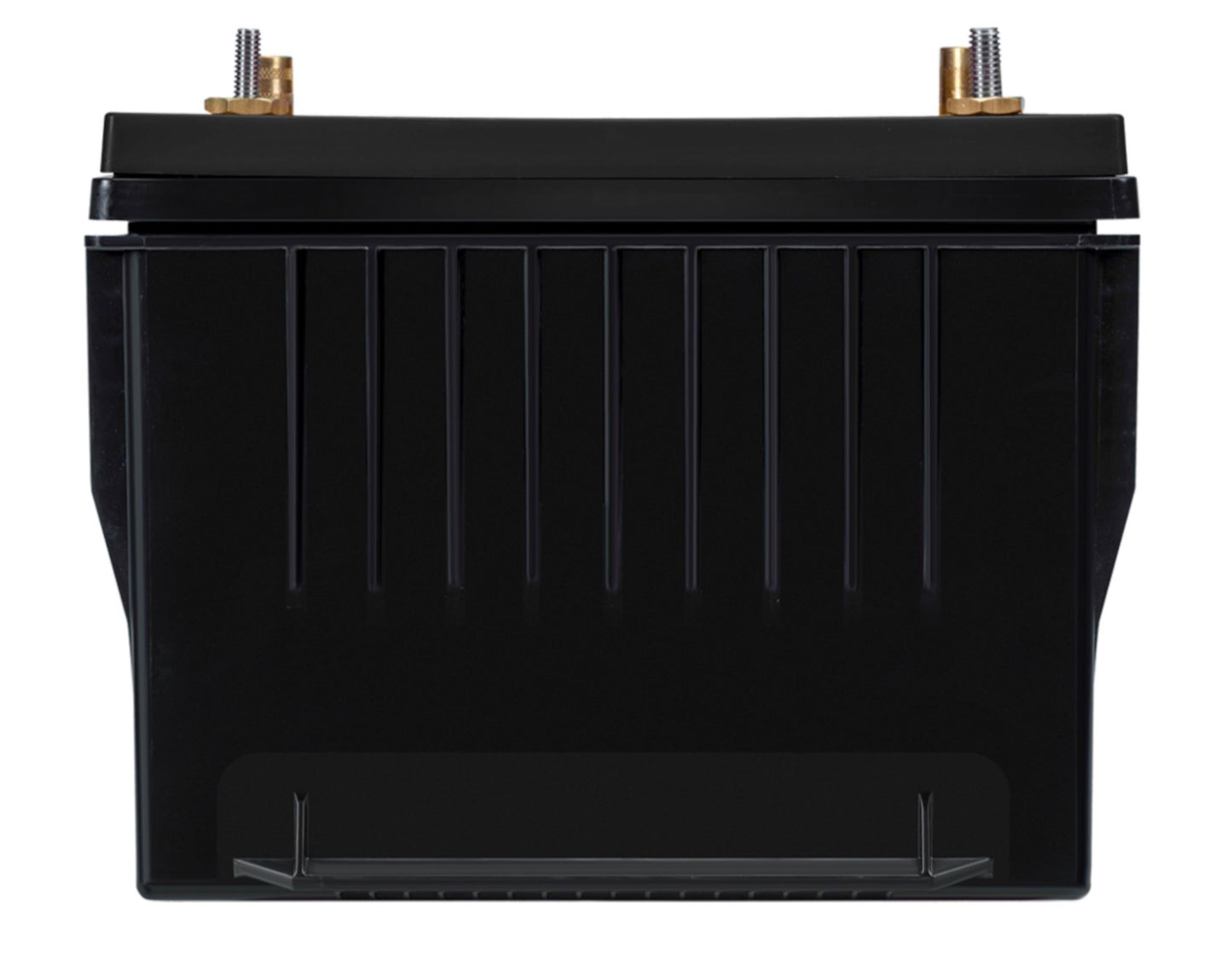

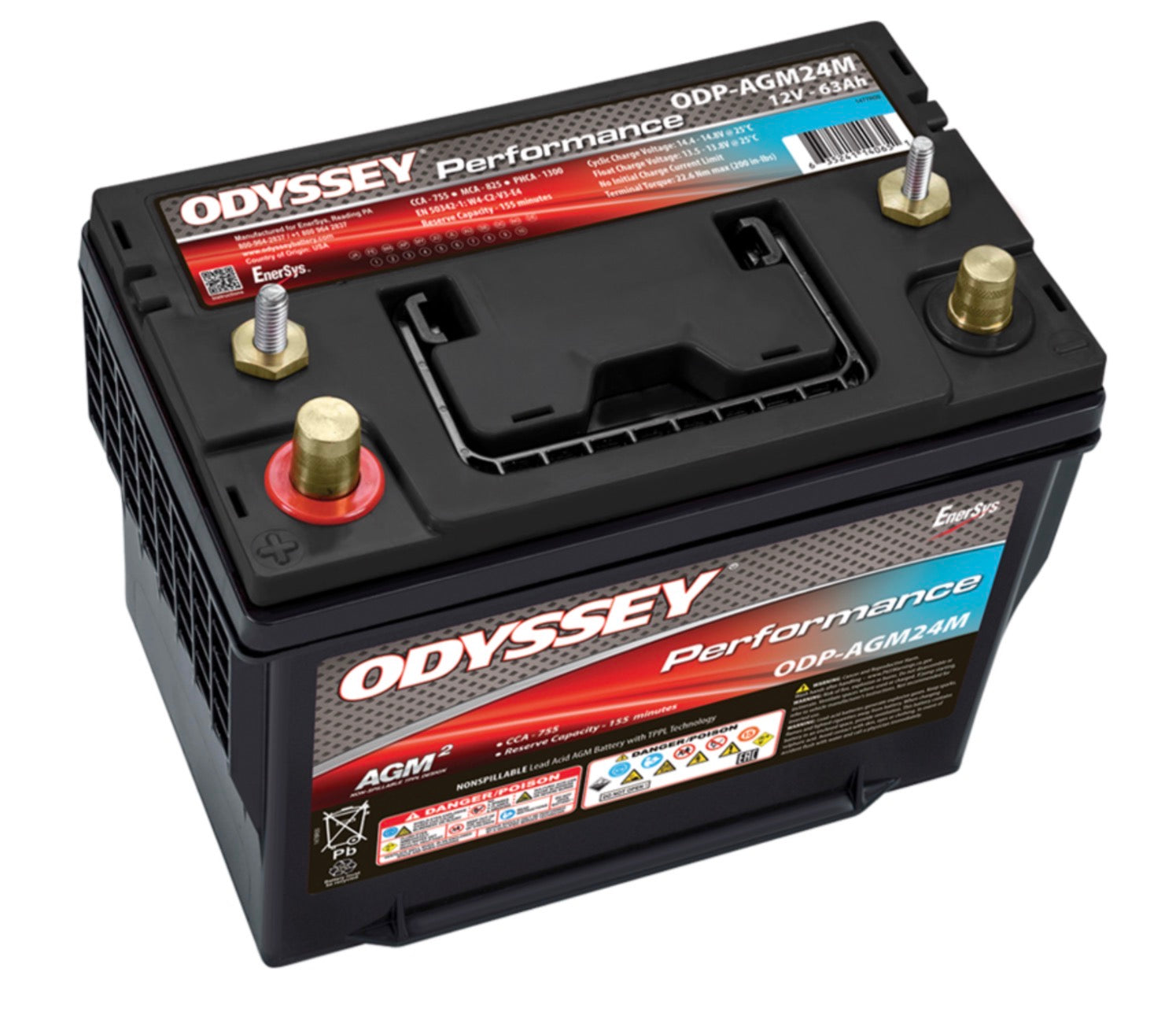

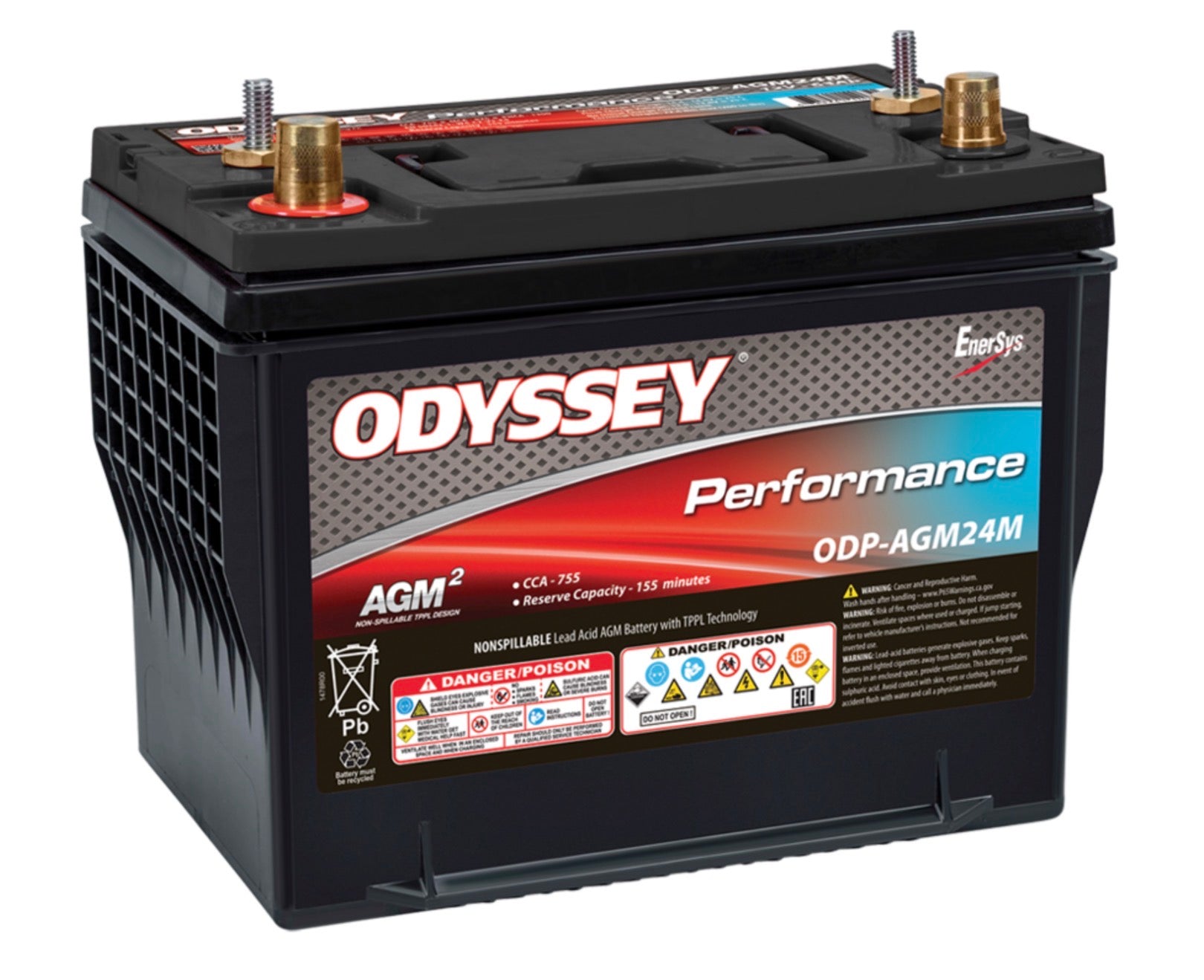

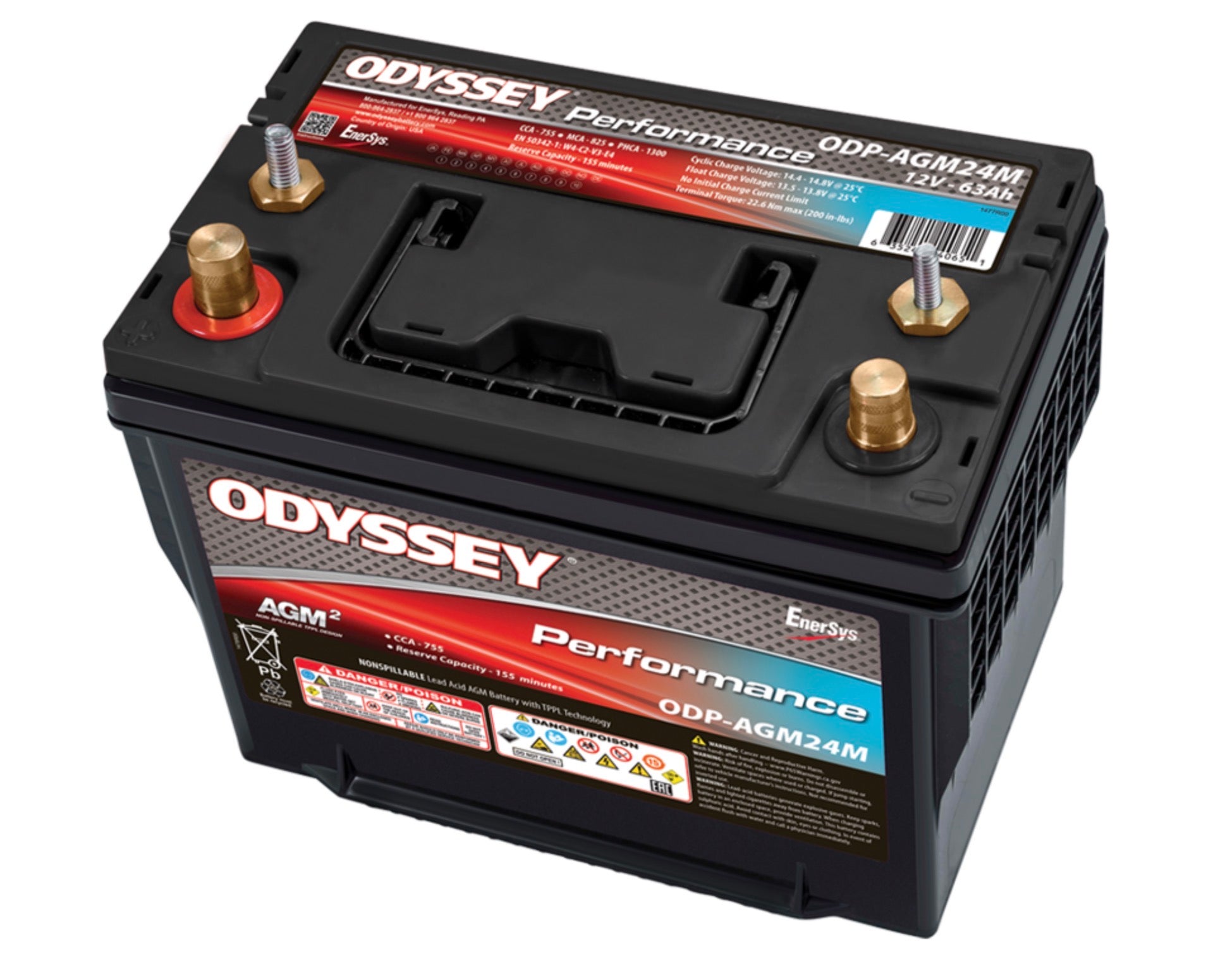

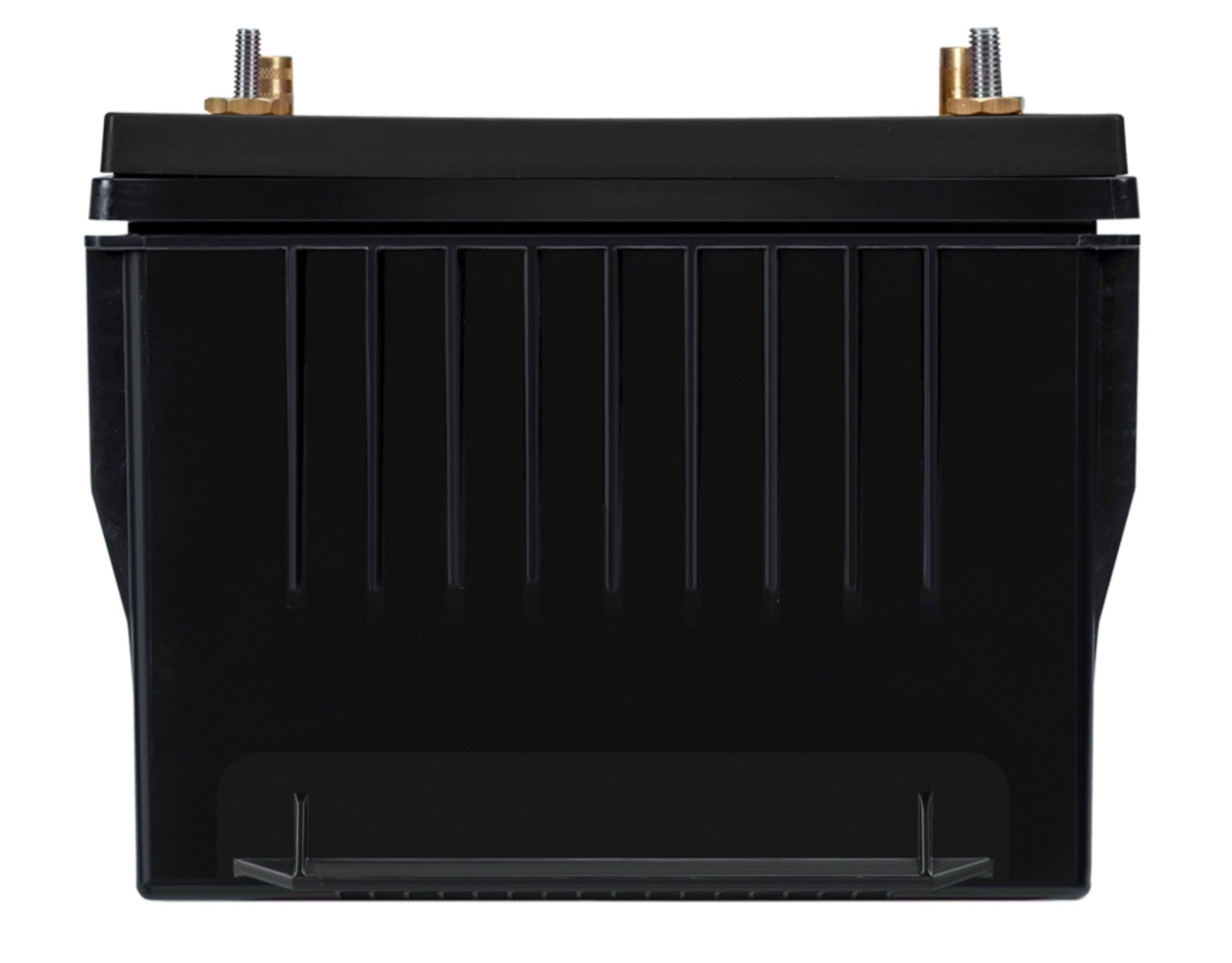

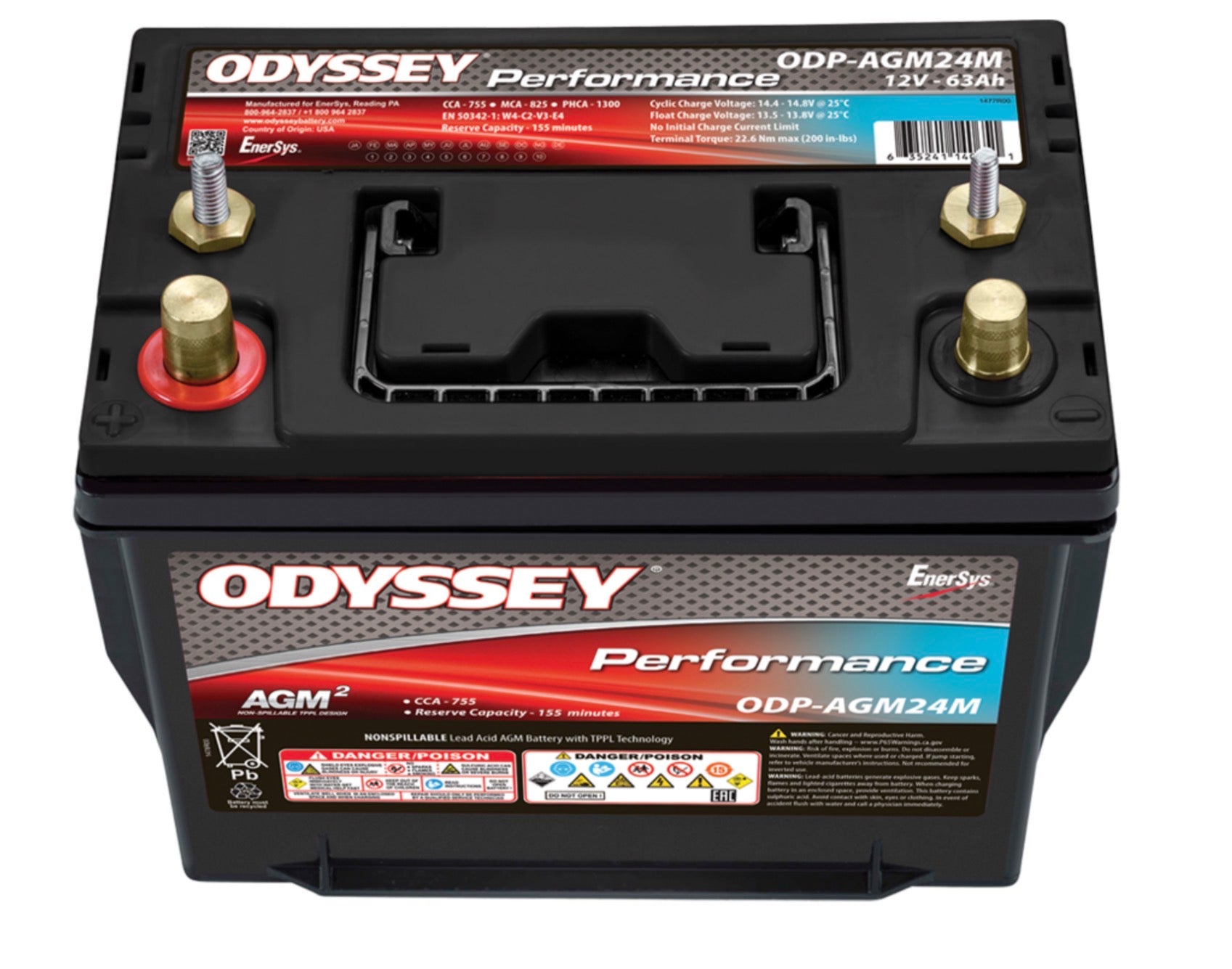

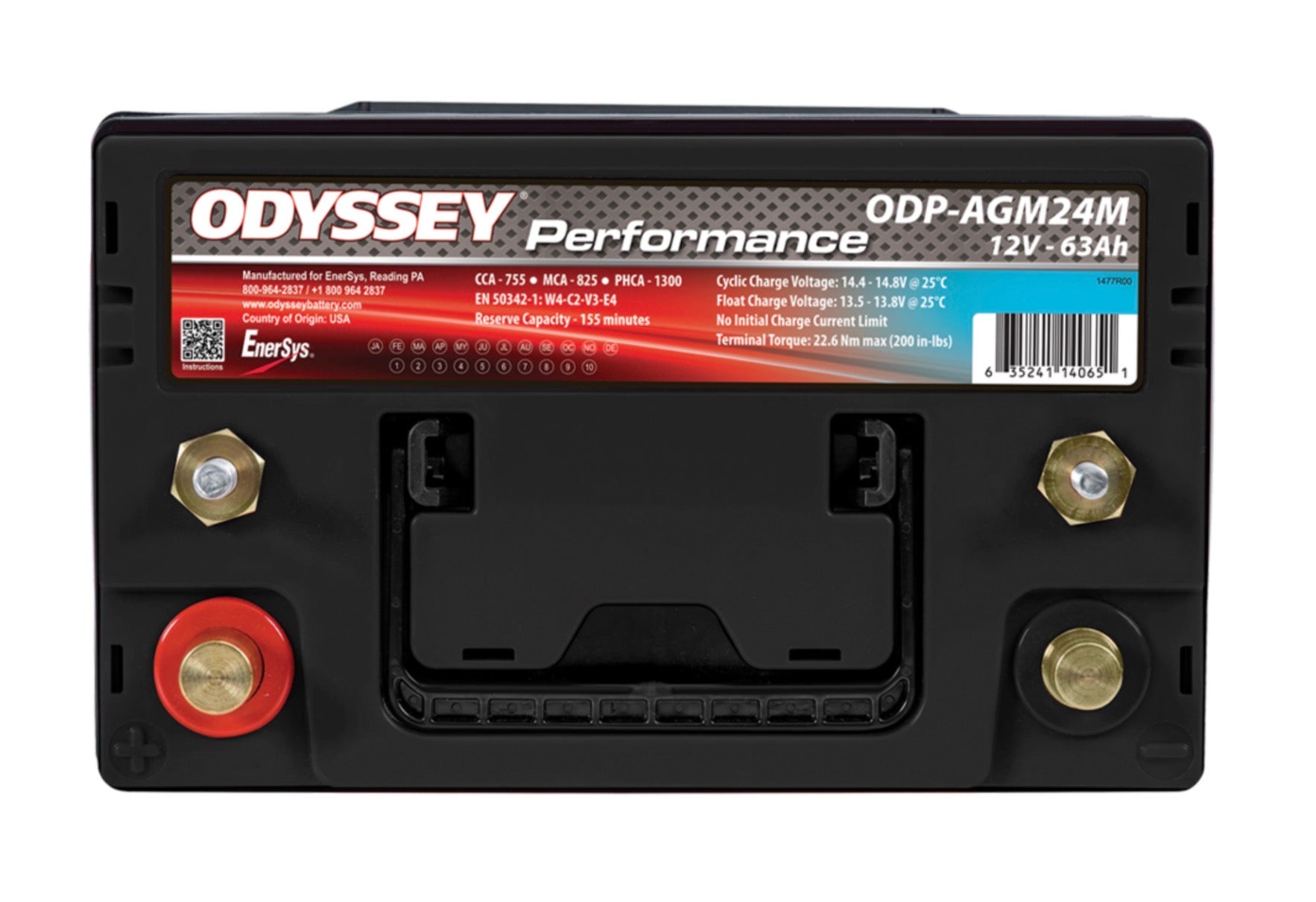

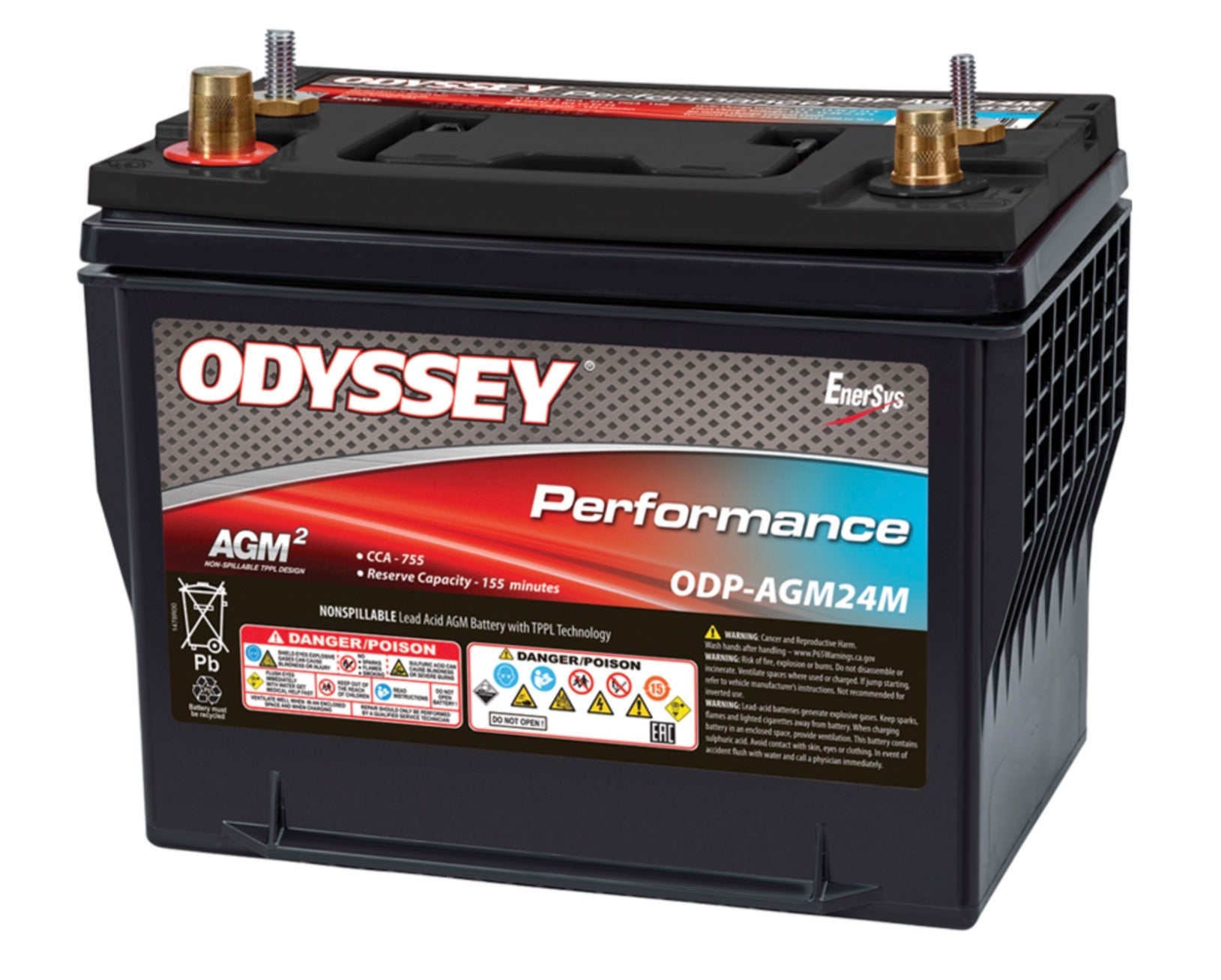

ODYSSEY Performance Battery ODP-AGM24M | 12V 63Ah Dual-Purpose Marine Battery
ODYSSEY Performance Battery ODP-AGM24M | 12V 63Ah Dual-Purpose Marine Battery
Proven Performance. Dual-Purpose Versatility.
The ODYSSEY Performance ODP-AGM24M is a 12V, 63Ah dual-purpose marine battery built for anglers who want reliable starting power and deep cycle capability without stepping up to the Extreme line. With 755 cold cranking amps and 155 minutes of reserve capacity, it handles engine starting and keeps your trolling motor and onboard electronics running through a full day on the water. Up to 400 cycles at 80% depth of discharge. Twice the overall power and three times the life of conventional marine batteries.
Why the ODP-AGM24M?
- True Dual-Purpose Design — 755 CCA starting power plus 400 deep cycles at 80% DoD in a single battery
- 63Ah Capacity — Solid reserve for trolling motors, fish finders, and onboard electronics
- 155-Minute Reserve Capacity — Over 2.5 hours of reserve power when you need it most
- AGM Technology — Twice the overall power and three times the life of conventional marine batteries
- Vibration Resistant — Built to handle the punishment of rough water and high-speed running
- Zero Maintenance — Sealed AGM construction means no water levels to check, no terminals to clean
- Safe for Transport — Approved as non-hazardous cargo for ground, sea, and air (DOT 49CFR173.159)
Performance vs. Extreme — Which Is Right for You?
The ODP-AGM24M is ODYSSEY's Performance series — an excellent choice for anglers who want dual-purpose AGM reliability at a lower price point. If you need higher CCA (840A vs. 755A), more capacity (76Ah vs. 63Ah), or longer reserve (160 min vs. 155 min), consider stepping up to the ODX-AGM24M Extreme.
Specifications
| Voltage | 12V |
|---|---|
| 20Hr Capacity | 63 Ah |
| 10Hr Capacity | 58 Ah |
| Reserve Capacity | 155 minutes |
| Cold Cranking Amps (CCA) | 755A |
| Hot Cranking Amps (HCA) | 950A |
| Marine Cranking Amps (MCA) | 825A |
| Pulse Hot Cranking Amps (PHCA) | 1,300A |
| Internal Resistance | 4.2 mΩ |
| Short Circuit Current | 2,150A |
| Min. Charging Current | 5.8A |

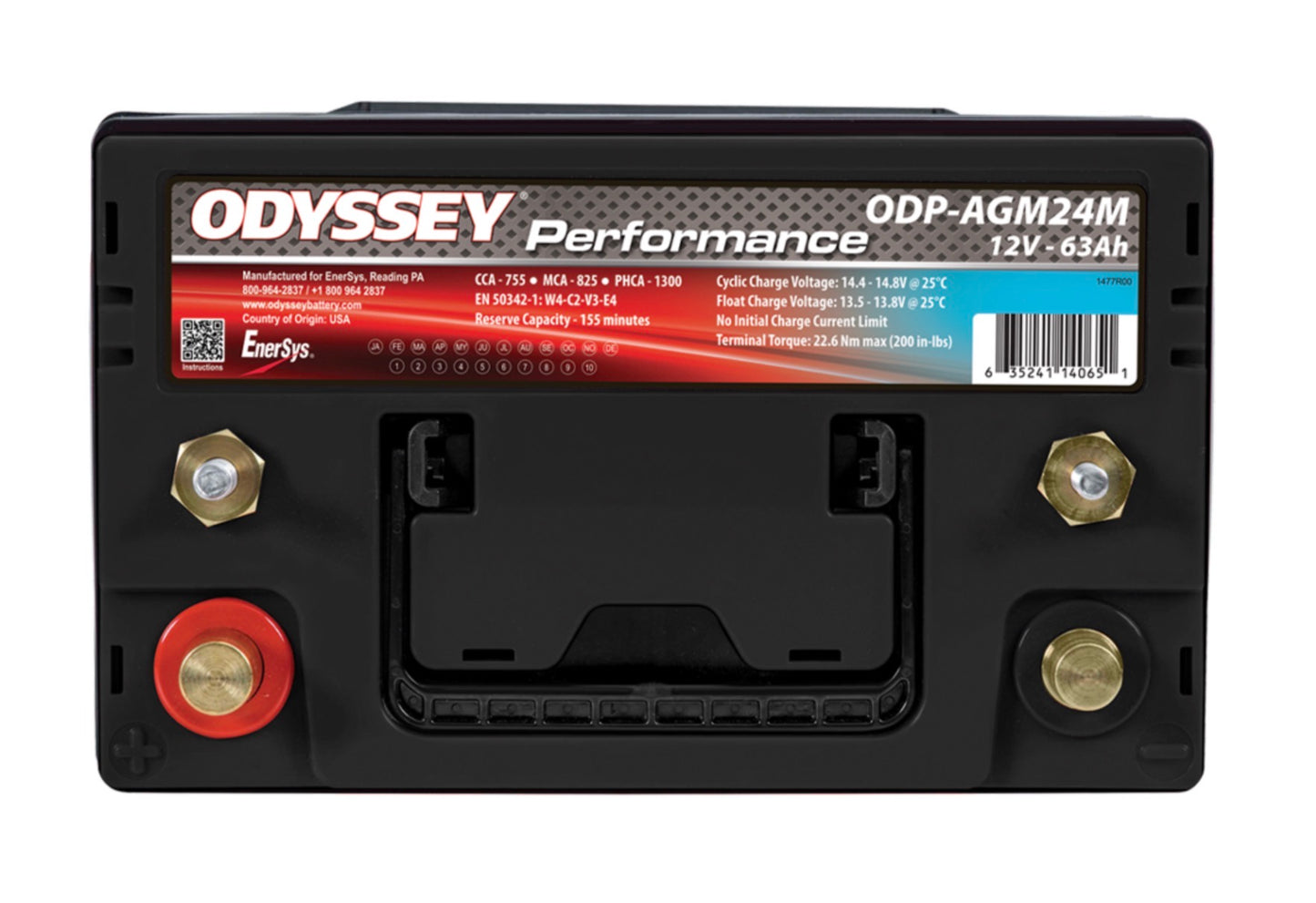

| Terminal | SAE and 3/8-16" Stud (Pos.), 5/16-18" Stud (Neg.) |
| Torque Spec | 200 in-lbs (22.6 Nm) / 100 in-lbs (11.3 Nm) studs only |
| Operating Temp Range | -40°F to 140°F (-40°C to +60°C) |
| Optimum Storage Temp | 68°F / +20°C |
| UPC | 635241140651 |
Dimensions & Weight
| Length | 10.90 in |
|---|---|
| Width | 6.80 in |
| Height (with terminals) | 8.80 in |
| Height (container) | 8.20 in |
| Weight | 51.40 lbs |
