Garmin Force Kraken 75" White Diamond Complete System

Garmin Force Kraken + Abyss 36V 60Ah Lithium Power + Sea Swivel + Complete Charging, Wiring & Mounting System

Built for center consoles, bay boats, and coastal fishing boats requiring substantial shaft reach without stepping up to a 90" or 110" Kraken.

75" Shaft • 36V 60Ah LiFePO4 • 100 lb Rated Thrust • Sea Swivel • Garmin Quick Release

Complete Package MSRP: $8,842.38

Diamond Package Price: $7,999.99

YOU SAVE $842.39

---

The Garmin Force Kraken 75" Diamond Complete System

When you're installing a 75-inch Garmin Force Kraken, the trolling motor is only the beginning.

You still need to determine the right battery, charger, heavy-duty electrical connection, battery mounting system, quick-release hardware, and bow-mount solution—and make sure the major components work together.

We've already done the work.

The Garmin Force Kraken 75" White Diamond Complete System combines seven premium components into one carefully matched package built around the 75-inch Force Kraken.

Your Diamond Complete System Includes:

Component	SKU	MSRP
Garmin Force Kraken 75" White Trolling Motor	010‑02574‑10	$4,299.99
Abyss 36V 60Ah Lithium Battery	AB-36V60-BT	$1,999.99
Sea Swivel Heavy-Duty Trolling Motor Mount	SEA-HDM	$1,099.00
Abyss 36V 10A On-Board Lithium Charger	AB-CRG-36V10A	$499.99
Marinco 36V Wiring Kit w/ 70A Plug & Receptacle	36VWKS3	$444.42
Garmin Quick Release Plate System – White	010‑12832‑61	$399.99
Abyss Starboard Marine Battery Tray	AB-G31	$99.00
Total Package MSRP		$8,842.38
Diamond Package Price		$7,999.99
Your Savings		$842.39

---

One Package. Seven Premium Components. No Compatibility Guesswork.

This isn't simply a trolling motor bundle.

It's a complete 36V Garmin Force Kraken power, charging, electrical, and mounting system designed around the installation requirements of the 75" Force Kraken.

✓ 75" Garmin Force Kraken White
✓ Single-Battery 36V 60Ah Abyss Lithium System
✓ Matching 36V 10A Onboard Lithium Charger
✓ Heavy-Duty Marinco Wiring & 70A Connection
✓ Garmin White Quick Release Plate System
✓ Sea Swivel Heavy-Duty Trolling Motor Mount
✓ Abyss Group 31 Starboard Battery Tray

Instead of sourcing seven major components individually, the Diamond Complete System brings them together into one premium Kraken package.

---

Garmin Force Kraken 75" White — System Highlights

Specification	Details
Model	Garmin Force Kraken
Garmin SKU	010‑02574‑10
Color	White
Shaft Length	75"
Power System	24V or 36V
Maximum Rated Thrust	80 lb @ 24V / 100 lb @ 36V
Package Configuration	36V
Motor	Brushless
GPS Position Hold	Garmin Anchor Lock
GPS	Multi-band GPS
Mount	Pivot-style bow mount
Chartplotter Integration	Wireless connection with compatible Garmin chartplotters
LiveScope Cable Integration	Yes
Built-In Transducer	No
Included Package Battery	Abyss 36V 60Ah LiFePO4
Battery Form Factor	Group 31

Garmin specifies the Kraken for operation at either 24V or 36V. At 36V, Garmin rates it at 100 lb of maximum thrust under ISO 13342, versus 80 lb at 24V.

This Diamond package supplies a dedicated 36V battery system, allowing the included Kraken to operate at its maximum rated thrust.

---

Why the 75" Kraken Gets a 60Ah Battery

The 75" Diamond Complete System pairs the Force Kraken with an Abyss 36V 60Ah lithium battery to create a single-battery 36V power system without requiring three separate 12V batteries wired in series.

For this Diamond package, we've selected the Abyss 36V 60Ah because it provides a compact Group 31 single-battery 36V architecture while retaining the current capability required for demanding trolling-motor applications.

That makes it particularly well suited to the bay-boat, center-console, and coastal applications targeted by this package.

Anglers who require substantially greater shaft reach should consider the Garmin Force Kraken 90" White Diamond Complete System or 110" White Diamond Complete System.

Actual runtime varies substantially with motor output, vessel, wind, current, sea conditions, battery condition, and other operating factors.

Always verify available battery-compartment space and mounting clearance before ordering.

---

Garmin Quick Release + Sea Swivel

The mounting system is one of the features that separates this Diamond package from a standard trolling motor purchase.

Together, the Garmin Quick Release + Sea Swivel create a premium mounting solution for the 75" Force Kraken.

Garmin Quick Release Plate System

The Garmin white Quick Release Plate System, SKU 010‑12832‑61, provides a removable mounting interface that allows the Force Kraken to be installed or removed without treating the trolling motor as a permanent bow installation.

That can be valuable for:

• Storage
• Service
• Security
• Seasonal removal
• Access to the bow
• Changing boat configurations

Sea Swivel Heavy-Duty Trolling Motor Mount

The Sea Swivel SEA-HDM adds the ability to change the motor's stowed orientation to better accommodate the physical layout of the bow.

That can be especially valuable when working around:

• Anchor lockers
• Windlasses
• Bow rails
• Cleats
• Hatches
• Navigation lights
• Bow seating
• Forward electronics
• Other deck-mounted equipment

The Sea Swivel is compatible with the included Garmin Quick Release, allowing the two components to perform different but complementary roles in the installation.

Garmin Quick Release = motor removal.

Sea Swivel = stowed-position flexibility.

Together, they create a much more versatile premium mounting system.

---

One 36V 60Ah Lithium Battery. One Complete Power System.

At the heart of this Diamond system is the Abyss 36V 60Ah LiFePO4 Battery, providing a dedicated 36V power source for the Force Kraken without requiring three separate 12V batteries wired in series.

The package combines it with:

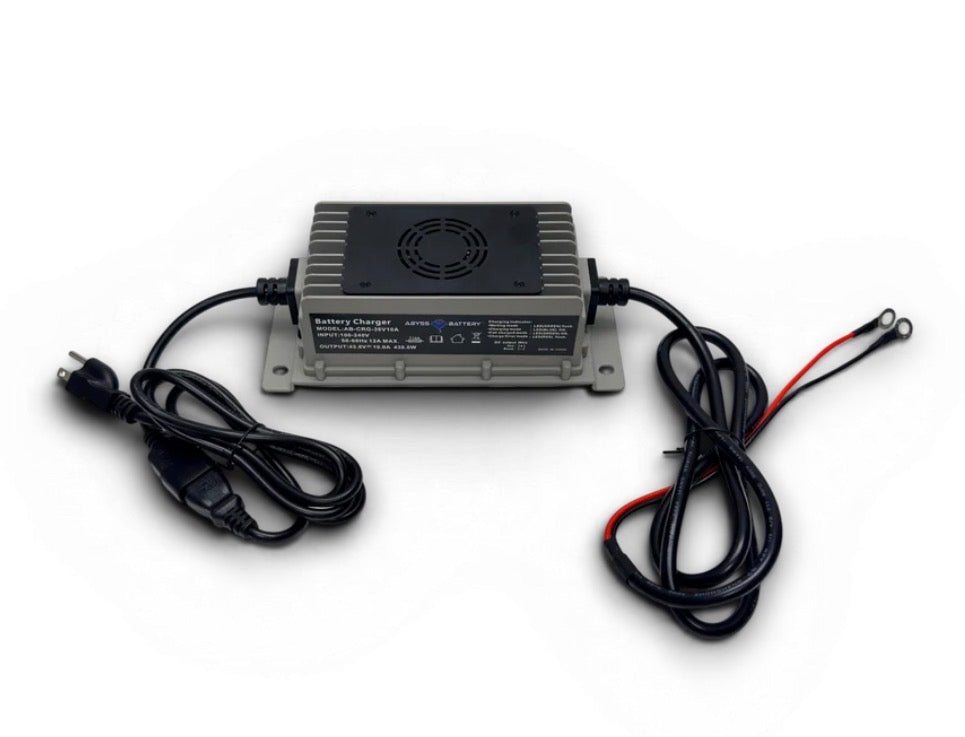

Abyss 36V 10A On-Board Lithium Charger

Provides a dedicated onboard 36V lithium charging solution for the included Abyss 60Ah battery.

Marinco 36V Wiring Kit

Provides the heavy-duty trolling-motor wiring system with 70A plug and receptacle.

Abyss Starboard Marine Battery Tray — AB-G31

Provides a marine-grade Group 31 battery mounting solution for the included 60Ah battery.

Diamond Power System

• Abyss 36V 60Ah LiFePO4 Battery
• Abyss 36V 10A On-Board Lithium Charger
• Marinco 36V Wiring Kit with 70A Plug & Receptacle
• Abyss Group 31 Starboard Battery Tray

The result is a complete 36V power architecture selected around the 75" Kraken rather than leaving the customer to assemble the electrical system component by component.

→ 24V vs. 36V Trolling Motor Battery Guide

---

Why These Seven Components?

Every component in the Diamond Complete System has a specific job.

Garmin Force Kraken 75" White

Provides the brushless propulsion, 75" shaft reach, Garmin Anchor Lock, multi-band GPS, and Garmin marine-electronics integration at the center of the system.

Garmin Quick Release Plate System

Provides a removable mounting interface for the Kraken.

Sea Swivel Heavy-Duty Trolling Motor Mount

Adds flexibility to the motor's stowed position—particularly useful when bow layout makes a fixed trolling-motor position inconvenient.

Abyss 36V 60Ah Lithium Battery

Provides a single-battery 36V power source for the Kraken.

Abyss 36V 10A On-Board Charger

Provides onboard charging specifically suited to the included 36V lithium power system.

Marinco 36V Wiring Kit

Provides the heavy-duty electrical connection between the trolling-motor power system and the Kraken.

Abyss Group 31 Starboard Battery Tray

Provides a dedicated marine mounting solution for the Group 31 Abyss battery.

Seven components. One purpose: build a premium 75" Garmin Force Kraken system without sourcing the major power, charging, electrical, and mounting components individually.

→ Browse All Garmin Force Kraken Trolling Motors

---

Garmin Electronics Integration

The Force Kraken is designed to integrate wirelessly with compatible Garmin chartplotters, allowing supported trolling-motor control and navigation functions to be accessed through the Garmin electronics ecosystem.

Depending on compatible electronics and system configuration, functions can include:

• Trolling-motor control
• Navigation functions
• Anchor Lock
• Heading Hold
• Other supported Garmin capabilities

The Kraken also incorporates LiveScope cable management, allowing a compatible LiveScope transducer cable to be routed through the trolling-motor shaft with the appropriate installation hardware.

The LiveScope transducer and required Kraken LiveScope mounting hardware are not included in this Diamond Complete System unless specifically stated otherwise.

Compatibility and available functions vary by chartplotter, sonar equipment, software, and system configuration. Verify compatibility for your exact electronics before purchasing.

→ Garmin Force Kraken Electronics Compatibility Guide

---

Sonar & LiveScope Note

The Garmin Force Kraken 75" White, SKU 010‑02574‑10, does not include a built-in transducer.

This gives anglers flexibility to configure their sonar system according to the electronics already installed on the boat or the sonar technology they intend to add.

The Force Kraken provides cable-management provisions for compatible LiveScope installations.

LiveScope equipment, sonar transducers, extension cables, and required mounting hardware are sold separately unless expressly listed as included with this Diamond Complete System.

---

Who Is the 75" Kraken Diamond System For?

The 75" Force Kraken occupies an important position in the Kraken lineup.

It provides significantly more shaft reach than shorter bass-boat-oriented trolling motors without requiring the additional length of the 90" or 110" Kraken.

This package should be considered for applications such as:

• Bay boats
• Center consoles
• Coastal fishing boats
• Flats and hybrid bay boats with higher bows
• Boats with moderate-to-high freeboard
• Boats operating in chop where additional shaft immersion is desirable
• Boats whose bow geometry benefits from a rotating trolling-motor mounting solution

Do not select a 75" shaft based on boat length alone.

The correct shaft length depends primarily on the vertical distance between the trolling-motor mounting surface and the waterline, together with expected waves, chop, loading, and bow movement.

---

75" vs. 90" vs. 110" Kraken Diamond Complete Systems

	75" Diamond	90" Diamond	110" Diamond
Shaft	75"	90"	110"
Diamond Price	$7,999.99	$8,499.99	$10,999.99
Battery	36V 60Ah	36V 60Ah	36V 105Ah
Charger	36V 10A	36V 10A	36V 20A
Battery Size	Group 31	Group 31	Group 4D
Swivel Mount	Sea Swivel	Sea Swivel XL	Sea Swivel XL
Best Fit	Moderate/substantial shaft reach	Substantial shaft reach	Maximum shaft reach

The 75" Diamond is the logical starting point for boats that need more shaft immersion than conventional 48", 63", or similar configurations but don't require a 90" or 110" trolling motor.

The 90" Diamond steps up for higher bows and more demanding shaft-reach requirements.

The 110" Diamond is the maximum-reach system and also steps up to the larger 36V 105Ah Abyss battery and 20A charging system.

Choose shaft length from your actual mounting-surface-to-waterline measurement—not boat length alone.

→ Read the Garmin Force Kraken Shaft Length Guide

---

Why 36V for the 75" Kraken?

The Force Kraken can operate on either 24V or 36V.

So why build the Diamond package around 36V?

Because Garmin rates the Kraken for:

24V → 80 lb maximum rated thrust

36V → 100 lb maximum rated thrust

If you're investing in a premium Kraken system, we believe the 36V configuration makes sense for customers who want access to the motor's maximum rated thrust.

The dedicated Abyss 36V battery also means this does not require a traditional three-battery 12V series bank.

One battery provides the complete 36V power source.

---

Frequently Asked Questions

Does the Garmin Force Kraken 75" run on 24V or 36V?

The Force Kraken can operate on either 24V or 36V. Garmin rates the motor at 80 lb of maximum thrust at 24V and 100 lb at 36V under ISO 13342.

This Diamond Complete System includes a dedicated 36V Abyss lithium battery and is configured around 36V operation.

Does this package require three 12V batteries?

No.

This Diamond Complete System includes one Abyss 36V 60Ah LiFePO4 battery, providing the required 36V power source without using three individual 12V batteries wired in series.

Does the Garmin Force Kraken 75" White include a transducer?

No. Garmin SKU 010‑02574‑10 is supplied without a built-in transducer.

That allows the boat owner to configure the sonar installation separately.

Can I install Garmin LiveScope on this Kraken?

Yes. The Force Kraken incorporates LiveScope cable-management provisions.

The LiveScope transducer, Kraken LiveScope mounting hardware, and other required installation components are sold separately unless specifically stated as included.

Why does this package include both a Sea Swivel and Garmin Quick Release?

They serve different purposes.

The Garmin Quick Release provides the removable mounting interface for the trolling motor.

The Sea Swivel provides additional flexibility for changing the motor's orientation when stowed.

Together, they can be especially useful when installing a 75" trolling motor around bow hatches, windlasses, rails, cleats, seating, electronics, and other equipment.

Why use one 36V Abyss battery instead of three 12V batteries?

A dedicated 36V battery simplifies the electrical system.

It eliminates two additional batteries, the series jumper cables between them, additional terminals, additional trays, and several potential connection and corrosion points.

It can also dramatically reduce battery-bank weight and free valuable storage space.

Is the Abyss charger matched to the included battery?

Yes. The package pairs the Abyss 36V 60Ah battery with the Abyss 36V 10A onboard lithium charger, creating a dedicated battery-and-charging system.

How do I know if I need a 75" shaft?

Choose trolling-motor shaft length primarily from the vertical distance between the mounting surface and waterline while accounting for expected waves, loading, and bow movement.

If your boat requires greater shaft reach, consider the 90" Kraken Diamond Complete System or 110" Kraken Diamond Complete System.

Is the 75" Kraken suitable for saltwater?

Yes. Force Kraken is designed for freshwater, brackish-water, and saltwater applications.

Does this package include everything required for installation?

It includes the seven major components listed on this page.

Boat-specific installations may still require additional circuit protection, conductors, fasteners, backing plates, sealant, adapters, fabrication, or other installation materials.

---

Important Installation Information

The Diamond Complete System includes the seven major components listed above for building a premium 75" Garmin Force Kraken 36V lithium system.

Boat-specific installation requirements vary.

Depending on the vessel and installation, additional items may be required, including:

• Circuit protection
• Additional conductors or cable
• Fasteners
• Backing plates
• Sealant
• Cable-management hardware
• Adapters
• Fabrication
• Additional mounting hardware

Always follow current Garmin, Abyss Battery, Marinco, and Sea Swivel installation requirements for the individual components.

Professional marine installation is recommended for a system of this value and electrical capacity.

---

The Diamond Complete System Advantage

The Diamond Complete System designation means this isn't just a motor with a few accessories added to the cart.

It's our premium approach to building the major systems surrounding the trolling motor:

Motor + Power + Charging + Electrical Connection + Battery Mounting + Quick Release + Bow Mounting Solution

For the 75" Force Kraken, we've paired Garmin's white Kraken with a 36V 60Ah lithium power system, dedicated 10A onboard charging, Garmin Quick Release, Marinco electrical connection, and Sea Swivel mounting system.

The result is a complete premium Kraken package designed for boat owners who would rather build the system correctly from the beginning than source seven major components individually.

Complete Package MSRP	$8,842.38
Diamond Package Price	$7,999.99
You Save	$842.39

Ready to Build Your Kraken System?

Add the Garmin Force Kraken 75" White Diamond Complete System to your cart.

Not sure whether the 75" Kraken or this mounting configuration is right for your boat?

Contact TrollingMotors.shop before ordering.

Send us your boat make, model, and year, your bow mounting-surface-to-waterline measurement, and preferably a photo of the bow mounting area. We can help you evaluate the system before you purchase.
