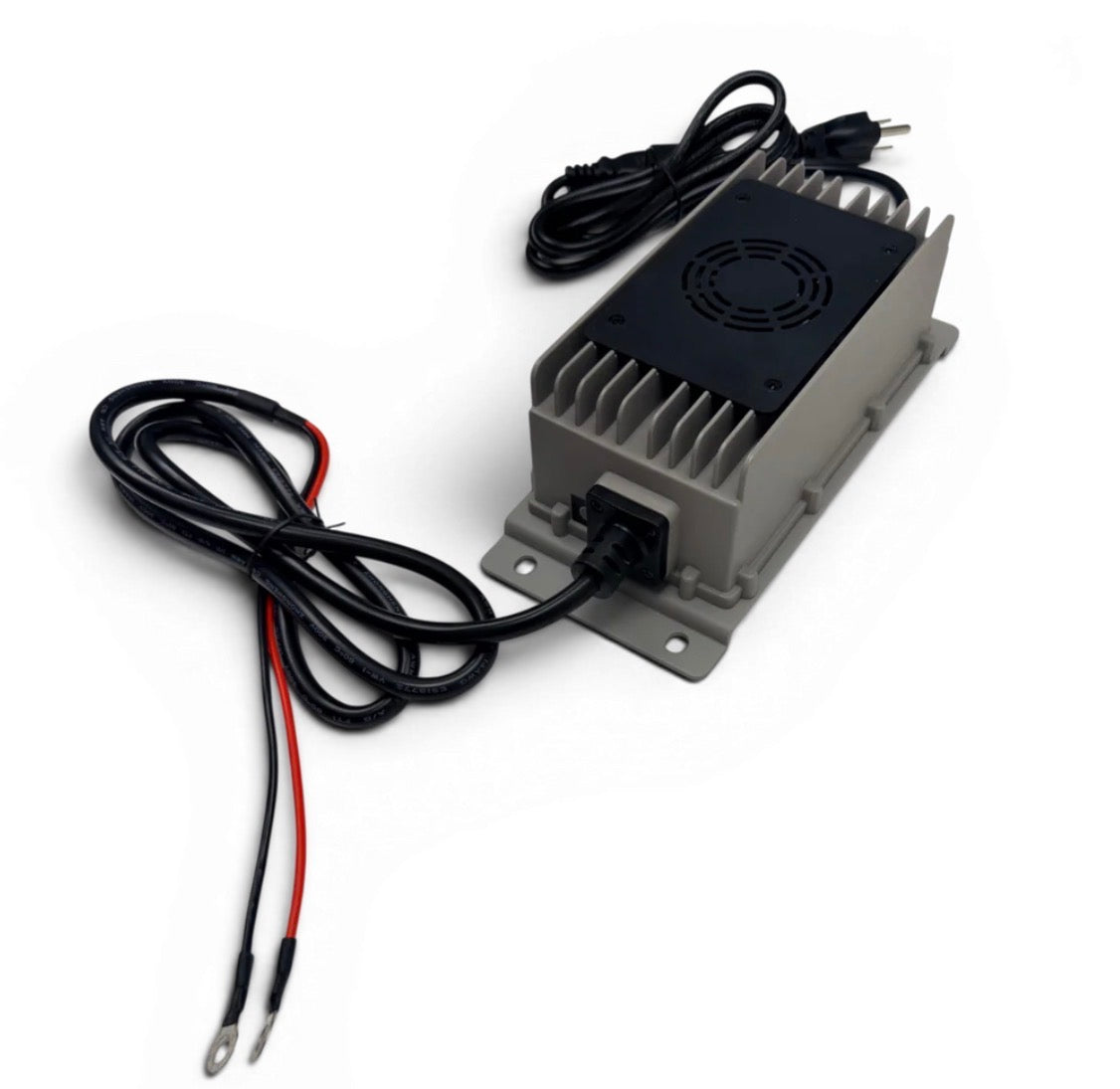

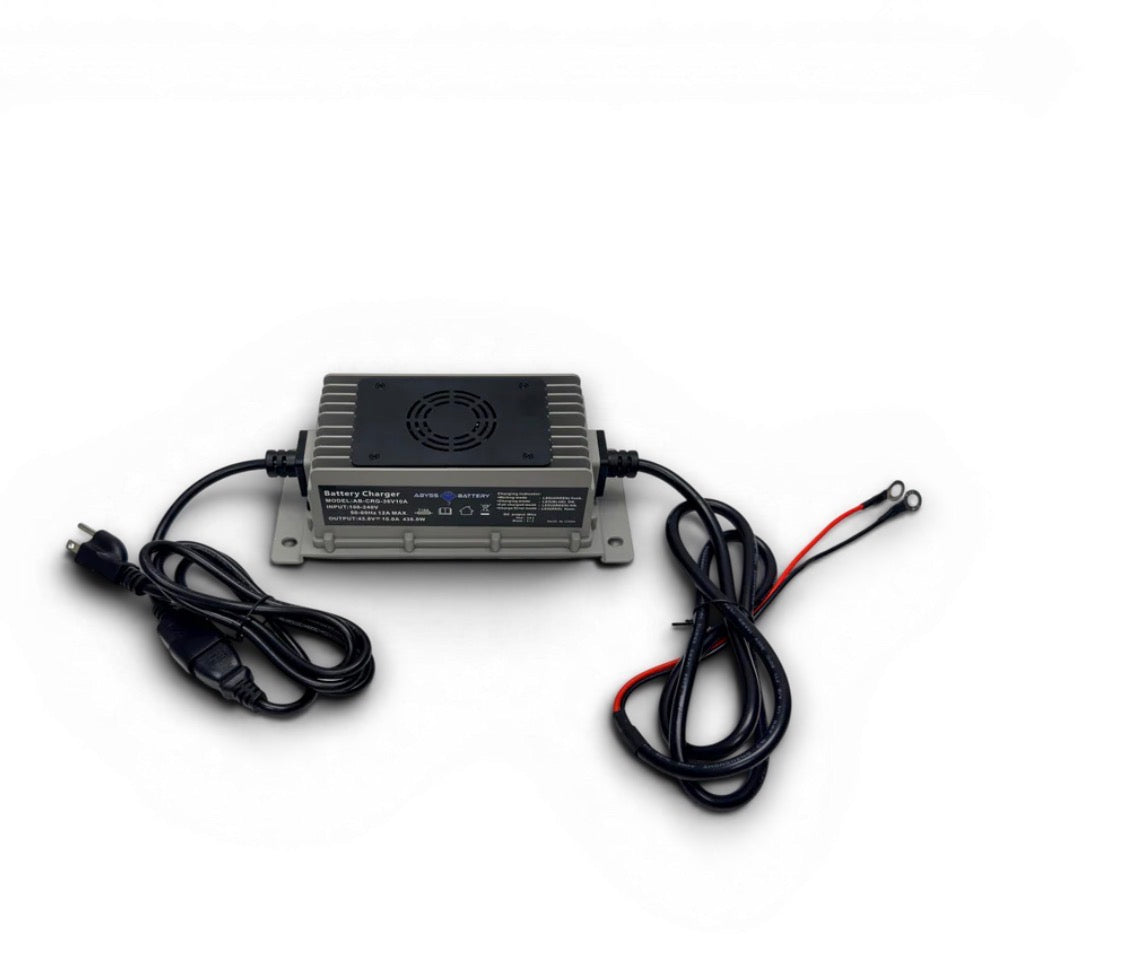

ABYSS® ON-BOARD 36V 10A HIGH-PRECISION MARINE LITHIUM BATTERY CHARGER

Elevate your charging experience with our On-Board 36V 10A High Precision Lithium Charger, meticulously engineered to deliver unparalleled efficiency, intelligence, and speed in battery charging. Designed specifically for the ABYSS® 36V 60Ah and 36V 72Ah Lithium Trolling Motor Batteries, this charger is your key to unlocking longer run times and dramatically shorter charge times, ensuring you spend more time on the water and less time waiting for a charge.

Our charger not only promises exceptional performance and reliability but also provides the peace of mind that comes with advanced safety features. Additionally this marine battery charger offers wide range compatibility and be used for other brands of 36-Volt Lithium Batteries. Optimize your time on the water with a charger that stands at the forefront of technology, offering you the quickest, most intelligent, and efficient charging solution.

Features:

• IP68 Rating.
• 2-Year Warranty.
• Marine-grade construction.
• Ignition Protection.
• Overcurrent limit.
• High voltage safety.
• Reverse connection protection.
• Temperature protection.
• Full-Auto timing shutdown.
• Anti-Walking function.
• LED indicator for Charging Process.
• CAN communication (optional).
• 12V5A Auxiliary power supply (optional).

Safety:

• Short-Circuit: Yes
• Open-Circuit: Yes
• Overheating: Yes
• Overcharge: Yes
• Spark-Proof: Yes
• Reverse Polarity: Yes

Size:

• Length: 7.5 Inches (190mm)
• Width: 5 Inches (127mm)
• Height: 2.5 Inches (63mm)
• Weight: 3.3 Pounds (1.5kg)

Operating Requirements:

• Line Voltage: 120V to 240V AC
• Frequency: 50Hz to 60Hz
• Operating Temperature: -4° to 104° F (-20° to 50° C)
• Storage Temperature: -22° to 140° F (-30° to 60° C)
• Relative Humidity: 0 to 95% Non-Condensing

Cord Management:

• DC Cable + Eyelet Length: 4' (48 In.) (122 cm)
• DC Cable Size: 16 AWG
• DC Fuse Size: 7.5 AMP MINI ® Blade Fuse
• AC Cable Length: 4' (48 In.) (122 cm)

• AC Cable Size: 18 AWG
• Oil, gas, grease, water, chemical, UV, abrasion resistant
• Red = Negative, Yellow/Green = Ground, Purple = Neutral
