30-Second Answer

Current Riptide Instinct QUEST models are available with 60", 72", 87", and 100" shafts.

Minn Kota's current general bow-mount shaft chart recommends:

  • 28–34" bow-to-waterline → 54–60" shaft
  • 34–52" bow-to-waterline → 72–87" shaft
  • 52–72" bow-to-waterline → 100" shaft

Because Instinct QUEST begins at 60", its relevant choices are 60", 72", 87", and 100". For rough-water fishing, Minn Kota currently advises adding 5 inches to the bow-to-waterline measurement before applying the chart.

Measure the boat in a representative fishing condition. Load and load distribution can change trim and the actual bow-to-waterline distance.

Boat length alone does not determine shaft length. When Minn Kota's chart provides more than one applicable shaft length, use actual measurement, mount geometry, expected bow movement, operating conditions, and installation requirements to choose between them.

Verify current shaft availability and installation requirements with Minn Kota's current documentation for your exact motor before purchasing.

Table of Contents

  1. Why Shaft Length Matters on the Instinct QUEST
  2. How to Measure Your Bow-to-Waterline Distance
  3. Minn Kota's Shaft-Length Chart: Instinct QUEST Edition
  4. The 60" Shaft
  5. The 72" Shaft
  6. The 87" Shaft
  7. The 100" Shaft
  8. Power Trim: Useful Depth Control, Not a Substitute for Shaft Length
  9. Auto Stow/Deploy and Installation Clearance
  10. Voltage and Battery Pairing
  11. Common Shaft Length Mistakes
  12. Still Not Sure?

Why Shaft Length Matters on the Instinct QUEST

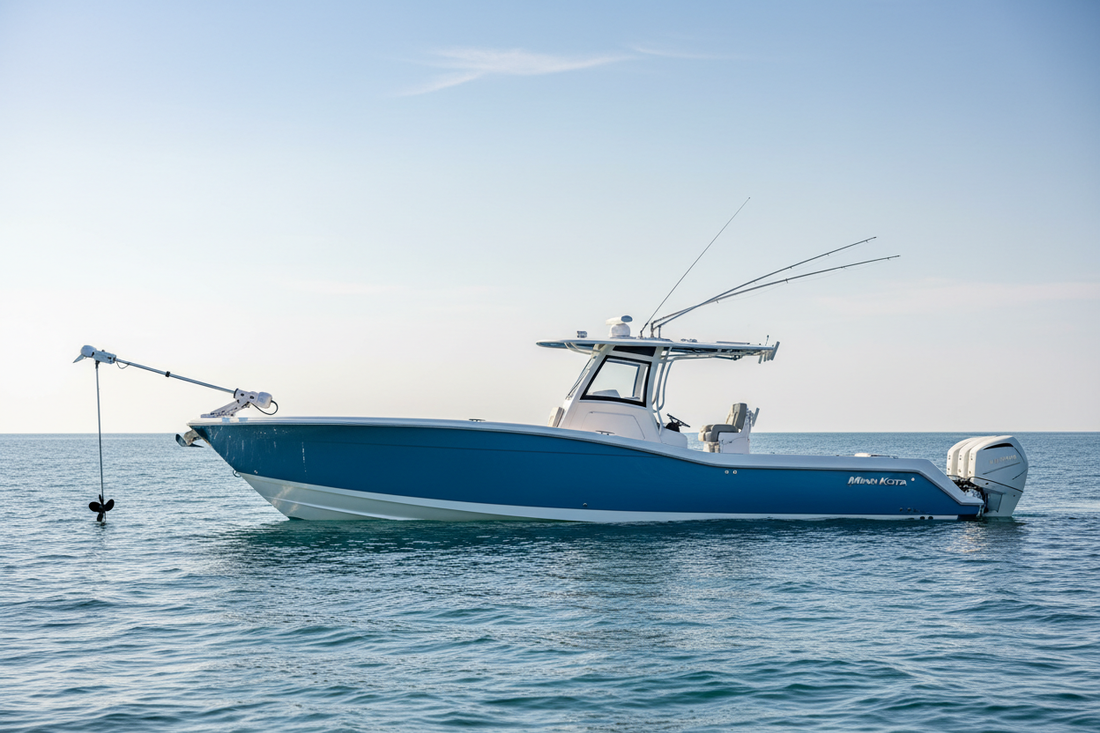

The Instinct QUEST is built for large offshore vessels — center consoles, sportfishers, and coastal cruisers with elevated bow profiles. These boats have significantly more bow height above the waterline than a typical bay boat or flats skiff, which means shaft length requirements are more demanding.

When the shaft is too short on an offshore vessel:

  • The propeller may ventilate (pull air) when the bow rises in chop or swell
  • Effective thrust can decrease significantly
  • Steering and control authority can suffer
  • Position-hold performance can suffer because the motor may have less consistent thrust to execute corrections

If inadequate shaft length allows the propeller to lose sufficient submergence or ventilate, the motor may have less consistent thrust and steering authority to execute position-hold corrections. Spot-Lock performance also depends on GPS reception, installation, available thrust, vessel characteristics, and conditions — shaft length is one factor among several.

Shaft length is a system-level decision — not a cost variable.

How to Measure Your Bow-to-Waterline Distance

Bow-to-waterline distance is the primary measurement used in Minn Kota's general shaft-selection guidance. Overall boat length and beam do not determine shaft length by themselves.

General measurement approach:

  1. Put your boat in the water in a representative fishing condition
  2. Measure the vertical distance from the waterline to the top of the bow where the trolling motor mounts
  3. Apply Minn Kota's current bow-mount shaft-length chart to that measurement
  4. For rough-water fishing, Minn Kota currently advises adding 5 inches to the bow-to-waterline measurement before applying the chart

Minn Kota also recommends that the center of the motor section be submerged at least 12", and that there be at least 12" between the propeller tip and the waterline. Verify current installation requirements with Minn Kota's documentation for your exact motor.

Measure in a representative fishing condition. Fuel, passengers, gear, and their distribution can change the boat's trim and bow-to-waterline distance. Verify shaft selection across the normal loading conditions you expect to operate in.

Boat length alone does not determine shaft length. A 24-foot center console can have a dramatically different bow-to-waterline distance than another 24-foot center console depending on hull design. Always measure your specific vessel.

Minn Kota's Shaft-Length Chart: Instinct QUEST Edition

Minn Kota publishes a general bow-mount shaft-length chart based on bow-to-waterline distance. Use that current manufacturer chart as the primary sizing reference, then verify shaft availability and installation requirements for your exact Instinct QUEST configuration.

For rough-water fishing, add 5" to the bow-to-waterline measurement before applying the chart.

Bow-to-Waterline Minn Kota General Shaft Guidance Current Instinct QUEST Option
28–34" 54–60" 60"
34–52" 72–87" 72" or 87"
52–72" 100" 100"

Exact selection within a manufacturer range should account for actual loaded trim, mount geometry, expected bow movement, operating conditions, and available motor configurations. When Minn Kota's chart provides more than one applicable shaft length, use those factors — not boat length alone — to choose between them.

Dealer boat-type observations appear in the individual shaft sections below. These are secondary references, not manufacturer specifications.

The 60" Shaft

Minn Kota's general bow-mount chart places 54–60-inch shafts in its 28–34-inch bow-to-waterline category. Because Instinct QUEST begins at 60 inches, the 60-inch model is the relevant Instinct option within that manufacturer category.

For rough-water fishing, add 5" to the bow-to-waterline measurement before applying the chart. A vessel measuring 30" at the bow in calm conditions may require a longer shaft when that adjustment is applied.

Dealer observation: The 60" is typically appropriate for larger bay boats and inshore center consoles with moderate bow heights fishing primarily in protected or nearshore waters. It is generally not the appropriate choice for open-ocean fishing or vessels with high bow profiles.

→ Shop the Instinct QUEST 90/115 — 60" Shaft

The 72" Shaft

Minn Kota's general chart groups 72- and 87-inch shafts within its 34–52-inch bow-to-waterline category. Choosing between them should account for the actual measurement within that range, mount geometry, expected bow movement, and operating conditions. Minn Kota does not publish a universal breakpoint between 72" and 87" within this category.

For rough-water fishing, add 5" to the bow-to-waterline measurement before applying the chart. A vessel measuring 40" at the bow in calm conditions becomes a 45" measurement under Minn Kota's rough-water adjustment, which remains within Minn Kota's 34–52" category. Dealer observation: when two shaft lengths remain applicable within the manufacturer range, regular offshore bow movement may make the longer option worth evaluating.

Dealer observation: The 72" is a common choice for mid-size center consoles fishing nearshore to coastal offshore waters where the bow-to-waterline measurement and operating conditions fall within the lower portion of Minn Kota's 34–52" category. When the measurement is toward the upper end of that range, or when conditions regularly involve significant offshore swell, the 87" is worth evaluating.

→ Shop the Instinct QUEST 90/115 — 72" Shaft

The 87" Shaft

Minn Kota's general chart groups 72- and 87-inch shafts within its 34–52-inch bow-to-waterline category. The 87" is the longer option within that range and is appropriate when the actual measurement, mount geometry, expected bow movement, and operating conditions indicate that additional submergence margin is warranted.

For rough-water fishing, add 5" to the bow-to-waterline measurement before applying the chart. A vessel measuring 47" at the bow in calm conditions becomes 52" after Minn Kota's rough-water adjustment, placing it at the published boundary between the 72–87" and 100" guidance ranges. At that boundary, verify the exact installation and operating conditions before selecting the shaft.

The 87" is available in both White and Black finishes — identical performance, different aesthetics.

Dealer observation: 87-inch Instinct QUEST installations are common on high-bow offshore center consoles and other vessels where the boat's actual bow-to-waterline measurement, mount geometry, and operating conditions favor additional shaft length within Minn Kota's applicable guidance.

→ Shop the Instinct QUEST 90/115 — 87" Shaft (White)
→ Shop the Instinct QUEST 90/115 — 87" Shaft (Black)

The 100" Shaft

Minn Kota's current general bow-mount chart places a 100-inch shaft in its 52–72-inch bow-to-waterline category. Within the current Instinct QUEST lineup, 100 inches is the longest available shaft and is intended for applications requiring substantial physical reach to maintain proper motor submergence.

For rough-water fishing, add 5" to the bow-to-waterline measurement before applying the chart. A vessel measuring 48" at the bow in calm conditions becomes a 53" measurement under Minn Kota's rough-water adjustment, which is unambiguously within the 52–72" category and indicates the 100" as the applicable shaft.

Minn Kota specifically promotes the Instinct QUEST's 100" option for offshore positioning and large boats. For high-bow applications that fall within Minn Kota's applicable sizing guidance, the 100" option provides the greatest physical reach in the current Instinct QUEST lineup.

Dealer observation: Very large center consoles, sportfishers, pilothouse boats, and catamarans with high bow profiles fishing in extreme offshore conditions are the typical applications for the 100" Instinct QUEST.

→ Shop the Instinct QUEST 90/115 — 100" Shaft (Black)

Power Trim: Useful Depth Control, Not a Substitute for Shaft Length

Riptide Instinct QUEST includes Power Trim, allowing trolling-motor depth to be adjusted electrically. That provides useful depth control as conditions change — for example, trimming deeper in offshore chop or shallower when running in protected water.

However, Power Trim cannot create physical shaft length. It adjusts operating depth within the shaft's available range. Start with the correct shaft for the boat and operating conditions, then use Power Trim to optimize operating depth within that shaft's reach.

A shaft that is too short for the vessel cannot be corrected by Power Trim. The propeller can still lose adequate submergence or ventilate when the bow rises if the shaft does not provide sufficient physical reach.

Auto Stow/Deploy and Installation Clearance

Riptide Instinct QUEST includes Auto Stow/Deploy, which Minn Kota positions as a defining Instinct feature. Shaft length solves reach and submergence requirements, but the complete Instinct installation still needs adequate bow space and deployment clearance for the motor to stow and deploy correctly.

Verify Minn Kota's current installation requirements for your exact motor and boat before drilling or ordering mounting hardware. Installation clearance requirements can vary by shaft length and vessel configuration.

Voltage and Battery Pairing

The Instinct QUEST 90/115 is a dual-voltage platform: 90 lb of thrust when operated at 24V, 115 lb when operated at 36V. Voltage selection depends on your vessel, operating conditions, and electrical architecture — not shaft length alone.

Dealer starting points by application:

  • 60" and 72" shafts: Either 24V/90 lb or 36V/115 lb may be appropriate; select based on required thrust, vessel characteristics, operating conditions, and electrical architecture.
  • 87" and 100" shafts: These long-shaft applications often involve high-bow vessels and demanding conditions where the additional thrust reserve of the 36V/115-lb configuration may be valuable. Shaft length itself does not require 36V — verify the appropriate voltage for your exact vessel and electrical system.

These are dealer starting points, not Minn Kota voltage specifications. Verify the appropriate voltage configuration for your exact vessel, operating conditions, and electrical architecture with Minn Kota's current documentation before purchasing.

Read our complete 24V vs. 36V vs. Dual-Voltage QUEST guide →

Common Shaft Length Mistakes

Using boat length instead of bow-to-waterline measurement

Boat length is not a reliable indicator of bow-to-waterline distance. A 24-foot center console can have a dramatically different bow height than another 24-foot center console depending on hull design. Always measure the actual vessel in a representative fishing condition.

Not applying the rough-water adjustment

Minn Kota currently advises adding 5 inches to the bow-to-waterline measurement for rough-water fishing before applying its shaft-selection chart. Skipping this step can result in a shaft that is adequate in calm conditions but loses adequate submergence in offshore chop or swell.

Measuring without representative load

Fuel, passengers, gear, and their distribution can change the boat's trim and bow-to-waterline distance. Measure in a representative fishing condition — not at the dock empty. Verify shaft selection across the normal loading conditions you expect to operate in.

Choosing the shorter shaft to save money

The price difference between shaft lengths is small relative to the total cost of the motor. A shaft that is too short for the vessel will not perform reliably in the conditions you fish. Shaft length is a performance decision, not a cost variable.

Assuming Power Trim compensates for an undersized shaft

Power Trim adjusts operating depth within the shaft's available range. It cannot add physical shaft length. A shaft that is too short for the vessel can still lose adequate submergence or ventilate when the bow rises, regardless of Power Trim position.

Assuming all center consoles of the same length need the same shaft

Hull design, freeboard, and bow profile vary significantly across manufacturers and models. Two boats of the same length can require different shaft lengths. Measure your specific vessel — do not rely on what another angler with a similar boat is running.

Still Not Sure Which Shaft Length You Need?

Tell us your boat model, length, and bow-to-waterline measurement — we'll confirm the right shaft length for your exact setup. We are trolling motor specialists, and this is exactly the kind of recommendation we make every day.

You can also browse all Instinct QUEST configurations on our Instinct QUEST collection page or read the Complete Instinct QUEST Buyer's Guide for a full overview of the lineup.
