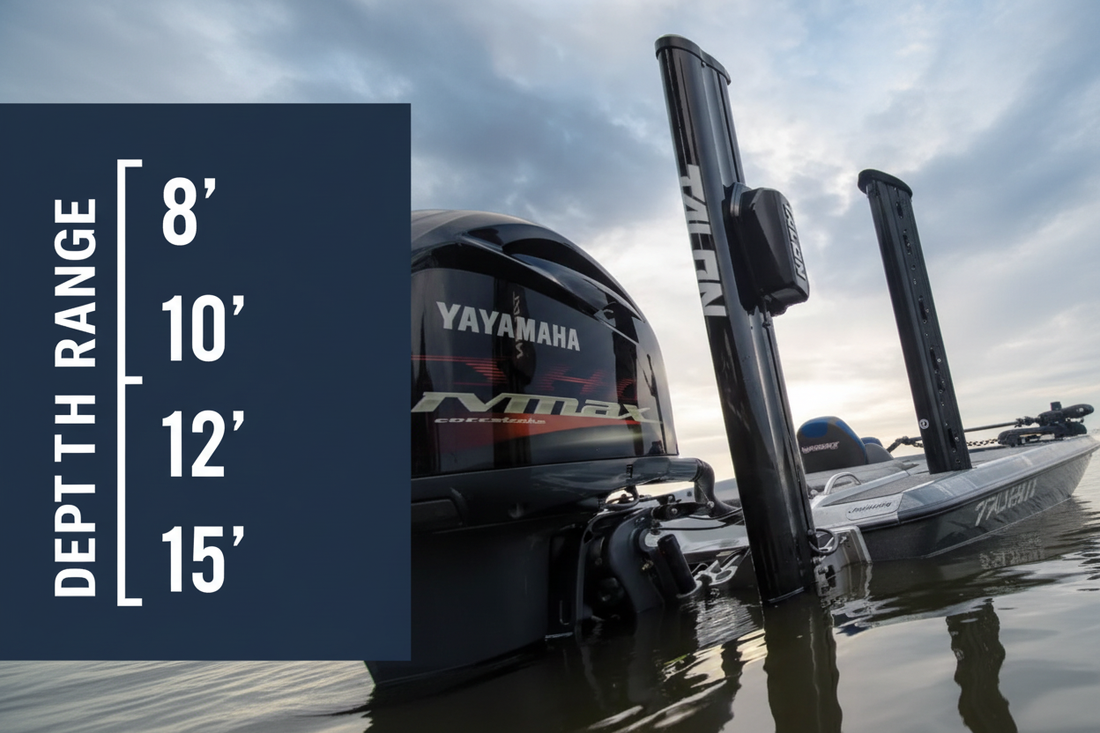

How to Choose the Right Shallow Water Anchor Length
Share
Choosing the right shallow water anchor length is simpler than most anglers think — but getting it wrong is an expensive mistake. Go too short and you can't anchor in the water you fish. Go too long and you've spent more than you needed to on weight and cost you don't use.
This guide explains exactly how anchor length works, what each length covers, and which model is right for your boat and fishery.
How Anchor Length Works
Anchor length determines the maximum depth at which the anchor can hold your boat. A longer anchor reaches deeper water. A shorter anchor is lighter, less expensive, and adequate for shallower applications.
The rated length of an anchor is not exactly equal to the maximum water depth it can anchor in — mounting height above the waterline, bottom composition, and deployment angle (for hydraulic articulating arm systems) all affect effective depth. But as a practical rule, the rated length is a reliable guide to maximum anchoring depth.
One important note: electric anchors (Minn Kota Talon) deploy vertically, which maximizes effective depth for a given unit length. Hydraulic articulating arm anchors (Power-Pole Blade) deploy at an angle, which means the effective depth is slightly less than the rated length. The Minn Kota Raptor deploys straight down like the Talon, so its rated length is a reliable guide to effective depth.
Available Lengths by Model
| Model | Available Lengths | Max Anchoring Depth |
|---|---|---|
| Minn Kota Talon | 8', 10', 12', 15' | Up to 15 feet |
| Minn Kota Raptor | 8', 10' | Up to 10 feet |
| Power-Pole Blade | 8', 10' | Up to 10 feet |
| Power-Pole Pro Series 2 | 8', 10' | Up to 10 feet |
| Power-Pole Sportsman 2 | 8' | Up to 8 feet |
| Power-Pole Micro | 6' | Up to 6 feet |
The Minn Kota Talon is the only shallow water anchor available in 12' and 15' models. No hydraulic anchor — from any manufacturer — currently exceeds 10 feet.
Which Length Is Right for You?
8-Foot Model — Flats Boats, Skiffs, and Shallow-Water Specialists
The 8-foot model is the right choice for boats that fish primarily in 6 feet of water or less. This includes:
- Flats boats and technical skiffs fishing skinny water — redfish, bonefish, permit, tarpon
- Bass boats fishing shallow grass, docks, and shoreline cover in protected lakes and ponds
- Kayak and small aluminum boat applications where weight is a primary concern
- Anglers who fish exclusively in very shallow environments and want the lightest, most compact unit available
The 8-foot model is lighter and less expensive than longer models. If your fishing is consistently in 6 feet or less, there's no reason to pay for length you won't use.
Caution: If you occasionally fish deeper than 6 feet, the 8-foot model will leave you unable to anchor. When in doubt, go to the 10-foot model.
10-Foot Model — The Most Versatile Option for Most Anglers
The 10-foot model is the right choice for the majority of anglers. It covers the widest range of fishing situations and is the most popular length across all three anchor systems.
The 10-foot model is the right choice if you:
- Fish a variety of depths from 2 to 10 feet
- Fish from a bass boat, bay boat, or center console in typical freshwater or inshore saltwater environments
- Fish tidal environments where depth varies with the tide
- Want one anchor that covers the full range of your typical fishing situations
- Are buying your first shallow water anchor and want maximum versatility
For most bass boat anglers, most bay boat anglers, and most inshore saltwater anglers, the 10-foot model is the correct choice. It's the anchor that covers the most ground for the most people.
12-Foot Model — Deep Structure and Large Reservoir Fishing (Talon Only)
The 12-foot Talon is the right choice for anglers who regularly fish 10–12 feet of water and want to spike in rather than run GPS boat control. This includes:
- Bass anglers targeting deep ledges, humps, and offshore structure on major reservoirs
- Walleye anglers fishing deep structure on large natural lakes and Great Lakes tributaries
- Smallmouth anglers fishing rocky points and deep structure in clear-water lakes
- Multi-species anglers on large natural lakes where depth variation is significant
The 12-foot Talon is a meaningful step up in weight and cost from the 10-foot model. It's worth the investment if you regularly fish 10–12 feet of water. If you only occasionally fish that depth, the 10-foot model and GPS boat control (Spot-Lock) may be a better combination.
15-Foot Model — Deep Structure Specialists (Talon Only)
The 15-foot Talon is the longest shallow water anchor available from any manufacturer. It's the right choice for anglers who regularly fish 12–15 feet of water and need the holding power of a spike anchor at those depths.
The 15-foot Talon is the right choice if you:
- Fish walleye on major river systems, large reservoirs, and Great Lakes fisheries in 12–15 feet of water
- Target smallmouth bass on deep rocky structure in clear-water lakes
- Fish multi-species in large natural lakes where 12–15 feet is a common fishing depth
- Need to hold position in deeper water without running your trolling motor continuously
The 15-foot Talon is the heaviest and most expensive model in the Talon lineup. It's a specialized tool for anglers who fish deep structure regularly. If you only occasionally fish 12–15 feet, the 12-foot model or GPS boat control may be a better fit.
Length Selection by Boat Type and Fishery
| Boat Type / Fishery | Recommended Length | Notes |
|---|---|---|
| Flats boat / technical skiff | 8' | Skinny water specialist. 6' or less typical fishing depth. |
| Bass boat, shallow lakes and ponds | 8' or 10' | 8' if consistently under 6'. 10' for versatility. |
| Bass boat, typical reservoir fishing | 10' | Covers the majority of bass fishing situations. |
| Bass boat, deep structure fishing | 12' or 15' | Talon only. For ledges, humps, and offshore structure in 10–15'. |
| Bay boat, inshore saltwater | 10' | Covers tidal depth variation. Raptor or Blade depending on ecosystem. |
| Center console, nearshore | 10' | 10' covers most nearshore anchoring situations. |
| Walleye / Great Lakes | 12' or 15' | Talon only. Match to your typical fishing depth. |
| Multi-species, large natural lakes | 10' or 12' | 10' for most situations. 12' if regularly fishing 10–12'. |
| Kayak / small aluminum | 8' | Weight is a primary concern. 8' is the lightest option. |
The Simple Rule
Choose the length that covers the deepest water you regularly fish — not the deepest water you've ever fished or might fish someday. If you fish 8 feet 90% of the time and occasionally fish 12 feet, a 10-foot anchor covers your regular fishing and GPS boat control handles the occasional deeper situation.
When you're between two lengths, go longer. The cost difference between adjacent lengths is meaningful but not dramatic, and the ability to anchor in deeper water when you need it is worth more than the savings from going shorter.
Does Anchor Length Affect Hold Strength?
Yes, but not in the way most anglers think. A longer anchor doesn't hold harder in the same depth of water — it holds in deeper water. In 6 feet of water, an 8-foot anchor and a 15-foot anchor hold with similar force (assuming similar bottom composition and conditions). The longer anchor's advantage is depth range, not hold strength at a given depth.
Hold strength is primarily determined by bottom composition (soft mud vs. hard sand vs. rock), anchor technology (Active Anchoring vs. standard), and whether you're running a single or dual setup.
Frequently Asked Questions
What length shallow water anchor do I need for a bass boat?
For most bass boat anglers fishing typical reservoir and lake conditions, the 10-foot model is the right choice. It covers the full range of typical bass fishing depths. If you regularly fish deep structure in 10–15 feet of water, consider the Talon 12' or 15'.
What's the deepest a shallow water anchor can go?
The Minn Kota Talon 15' is the deepest shallow water anchor available — it can anchor in up to 15 feet of water. No hydraulic anchor (Raptor or Power-Pole) exceeds 10 feet.
Can I use a 10-foot anchor in 4 feet of water?
Yes. A longer anchor works fine in shallower water — it simply doesn't deploy its full length. The extra length doesn't cause problems; it just means you're carrying more weight than you strictly need for that depth.
Is the 15-foot Talon worth it?
If you regularly fish 12–15 feet of water and want to spike in rather than run Spot-Lock, yes. If you only occasionally fish that depth, the 12-foot model or GPS boat control is a better combination.
Why don't hydraulic anchors come in 12' or 15' models?
The hydraulic articulating arm design becomes increasingly difficult to engineer at longer lengths while maintaining the slim stowed profile that makes hydraulic anchors attractive. The Talon's vertical electric spike design scales more easily to longer lengths. This is a fundamental design constraint, not a product gap that's likely to be filled soon.
Does anchor length affect battery draw?
Minimally. Longer anchors require slightly more power to deploy and retract, but the difference is not significant in practice. Battery draw is not a meaningful factor in anchor length selection.
