How to Choose the Right Trolling Motor Shaft Length (Complete Buyer's Guide)

How to Choose the Right Trolling Motor Shaft Length (Complete Buyer's Guide)

Updated: August 11, 2026

One of the most common mistakes anglers make when buying a trolling motor is getting the shaft length wrong. Too short and the prop can break the surface and ventilate in choppy conditions, causing an immediate loss of thrust. Too long and you're dragging unnecessary weight and risking damage. Getting it right makes a real difference in performance and control.

30-Second Answer

Measure your bow height above the waterline, then add approximately 20 inches as a starting point. Add another 5–10 inches if you fish in rough water, open bays, or conditions where your bow rises significantly.

When choosing between two appropriate shaft lengths, sizing slightly longer usually provides more margin in rough water. A prop that ventilates or comes partially out of the water can lose thrust dramatically.

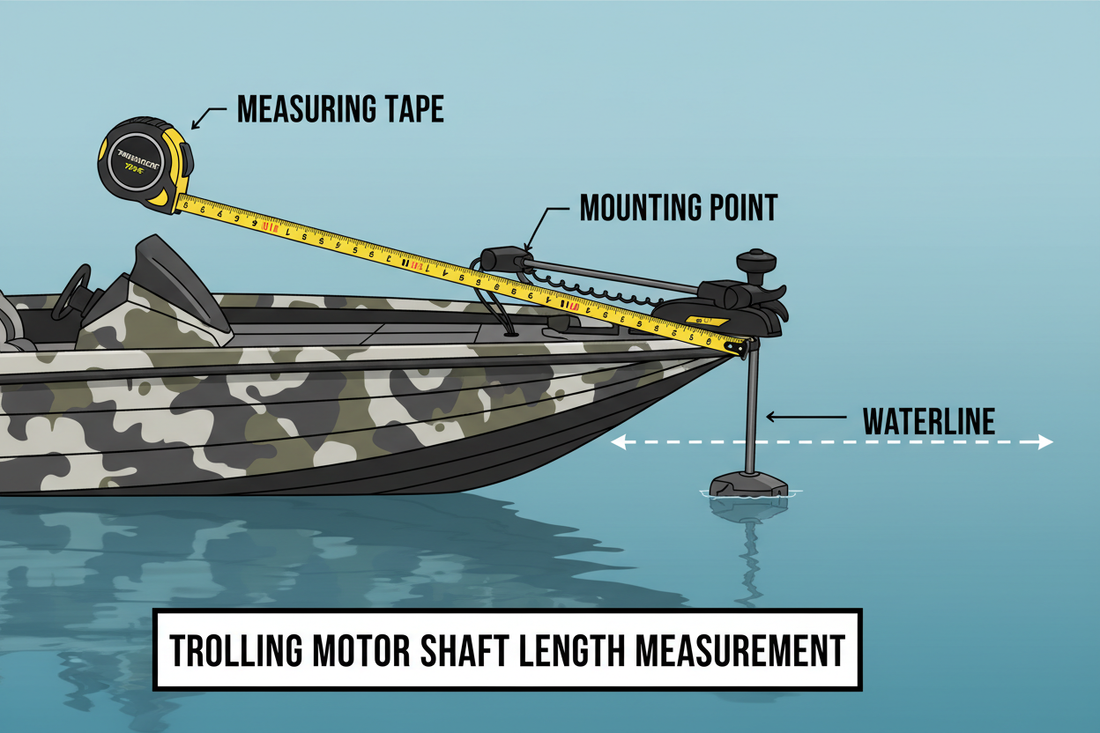

How to Measure for the Right Shaft Length

Start by measuring the distance from your mounting surface (the top of your bow) down to the waterline. As a general starting point, add approximately 20 inches to that measurement, then compare that result with the shaft-selection guidance for the specific trolling motor you're considering.

Example: If your bow is 18" above the waterline, your starting point is roughly 38" — so a 45" shaft would be your minimum to evaluate.

For rough water or high-speed fishing, add another 5–10 inches of buffer to keep the prop submerged when the bow rises.

Important: Manufacturer measurement methods and recommended submersion depths can vary, so the specific motor's installation guidance takes precedence over any general rule of thumb. If you're using an aftermarket motor mount, measure from the actual mount surface — not the deck. Some mounts raise the mounting point significantly, which effectively shortens your shaft.

Dealer Insight: Boat Length Doesn't Determine Shaft Length

Customers often ask us what shaft length they need based only on boat length. That's not enough information. Two 21-foot boats can have very different bow heights, mounting surfaces, loading, and operating conditions. We size shaft length from the actual mount-to-waterline measurement first, then account for how and where the boat is fished.

That's why the boat-type ranges below are starting points — not substitutes for measuring your specific boat. If you're unsure, contact us before you buy.

Shaft Length by Boat Type

Jon Boats & Small Aluminum Boats (under 16 ft)

These sit low to the water with minimal bow height. A 36"–45" shaft is typically sufficient.

Bass Boats (16–21 ft)

Bass boats have a moderate bow height and are often fished in variable conditions. A 45"–60" shaft is the most common range, with 52" being a popular sweet spot.

Pontoon Boats

Pontoons sit higher off the water than most people expect. A 60"–72" shaft is usually required, sometimes longer depending on the model.

Walleye & Multi-Species Boats (18–22 ft)

These boats often run in rougher water. A 52"–72" shaft gives you the depth needed to stay submerged in chop.

Large Bass & Tournament Boats (21 ft+)

Shaft requirements vary substantially by bow height and the water being fished. Many tournament bass boats use shafts in the 52"–60" range, while longer shafts may be appropriate for higher bows or rough big-water conditions. Measure the actual mounting height rather than choosing by boat length alone.

Bay Boats & Inshore Saltwater Boats

Bay boats vary widely in bow height. Most fall in the 60"–84" range — measure carefully and account for wave action in open bays.

Offshore & Large Center Consoles

These boats have significant bow height and are used in open water with real wave action. A 90"–120" shaft is required — this is where the Rhodan Gen5 (up to 120") and Garmin Force Kraken (up to 110") excel. See our comparison: Garmin Anchor Lock vs Spot-Lock: Which GPS Anchoring System Is Better for Saltwater Fishing?

Kayaks

Kayaks sit extremely low to the water. The Garmin Force Current is purpose-built for kayaks with a compact, adjustable design that works in tight spaces.

Shaft Length Options by Brand

Here's the complete shaft range we carry at Captain Mason Yacht Services:

  • Garmin Force Kraken — 48", 63", 75", 90", 110"
  • Minn Kota Ulterra QUEST — 45", 60", 72"
  • Minn Kota Ultrex QUEST — 45", 52", 60"
  • Minn Kota Riptide Terrova QUEST — 54", 60", 72", 87", 100"
  • Minn Kota Riptide Instinct QUEST — multiple shaft options
  • Power-Pole MOVE PV — 36", 45", 52", 60", 72", 84", 96", 110"
  • Power-Pole MOVE ZR — 45", 52"
  • Rhodan Gen5 — 24V: 48", 60", 72" | 36V: 48", 60", 72", 84", 96", 108", 120"

For brand-specific shaft selection guides, see:

Common Shaft Length Mistakes

  • Going too short. The most common mistake. When choosing between two appropriate shaft lengths, size slightly longer. A prop that ventilates or comes partially out of the water can lose thrust dramatically.
  • Not accounting for rough water. Calm lake measurements don't account for bow rise in chop. Add buffer if you fish open water, bays, or offshore.
  • Ignoring motor mount height. Some aftermarket motor mounts raise the mounting surface, which effectively shortens your shaft. Measure from the actual mount, not the deck.
  • Assuming all boats of the same type need the same shaft. Bow height varies significantly even within the same boat category. Always measure your specific boat.
  • Choosing shaft length based on what came on the previous motor. If the previous motor was undersized, you'll repeat the same mistake. Start with a fresh measurement.

Shop by Shaft Length

Short Shafts (36"–52") — Jon Boats, Small Bass Boats, Kayaks

Mid Shafts (60"–75") — Bass Boats, Pontoons, Walleye Boats

Long Shafts (84"–110") — Large Bass Boats, Bay Boats, Offshore

Extra-Long Shafts (108"–120") — Center Consoles, Offshore Platforms

Frequently Asked Questions

What happens if my trolling motor shaft is too short?

The prop can break the surface and ventilate, especially when the bow rises in chop or during turns. A ventilating prop loses thrust dramatically and can cause the motor to over-rev. In rough conditions, a short shaft makes the motor nearly unusable.

Is it okay to go longer than the minimum shaft length?

Yes, within reason. A shaft that's 5–10" longer than the minimum is generally fine and gives you buffer in rough water. Going excessively long adds unnecessary weight and can affect handling, but when choosing between two appropriate shaft lengths, erring slightly long is almost always the better call.

Does shaft length affect trolling motor performance?

Shaft length itself doesn't affect thrust or motor performance — it affects whether the prop stays submerged and operating efficiently. A properly submerged prop delivers full rated thrust. A prop that ventilates or breaks the surface loses thrust dramatically.

Do I need a different shaft length for saltwater vs. freshwater?

Not necessarily based on water type — but saltwater fishing often involves larger boats, open water, and more wave action, which typically requires longer shafts. Measure your specific boat and factor in your typical conditions.

What shaft length do I need for a pontoon boat?

Most pontoon boats require a 60"–72" shaft due to their elevated deck height. Measure from your actual mounting surface to the waterline and add approximately 20" as a starting point. Some larger pontoons may require 84" or longer. Always verify against the specific motor manufacturer's installation guidance.

Can I use a motor mount to adjust effective shaft length?

Motor mounts like the Sea Swivel can help with positioning and angle, but they don't substitute for correct shaft length selection. Some mounts raise the mounting point, which effectively shortens your shaft — always measure from the actual mount surface.
